5. Overview of the parts
The RCS weighingsystem exists of two main parts:
1. Indicator
2. Sensor
The sensor has to be connected to a T-link on the hydraulic system of the forklifttruck. The indicator,

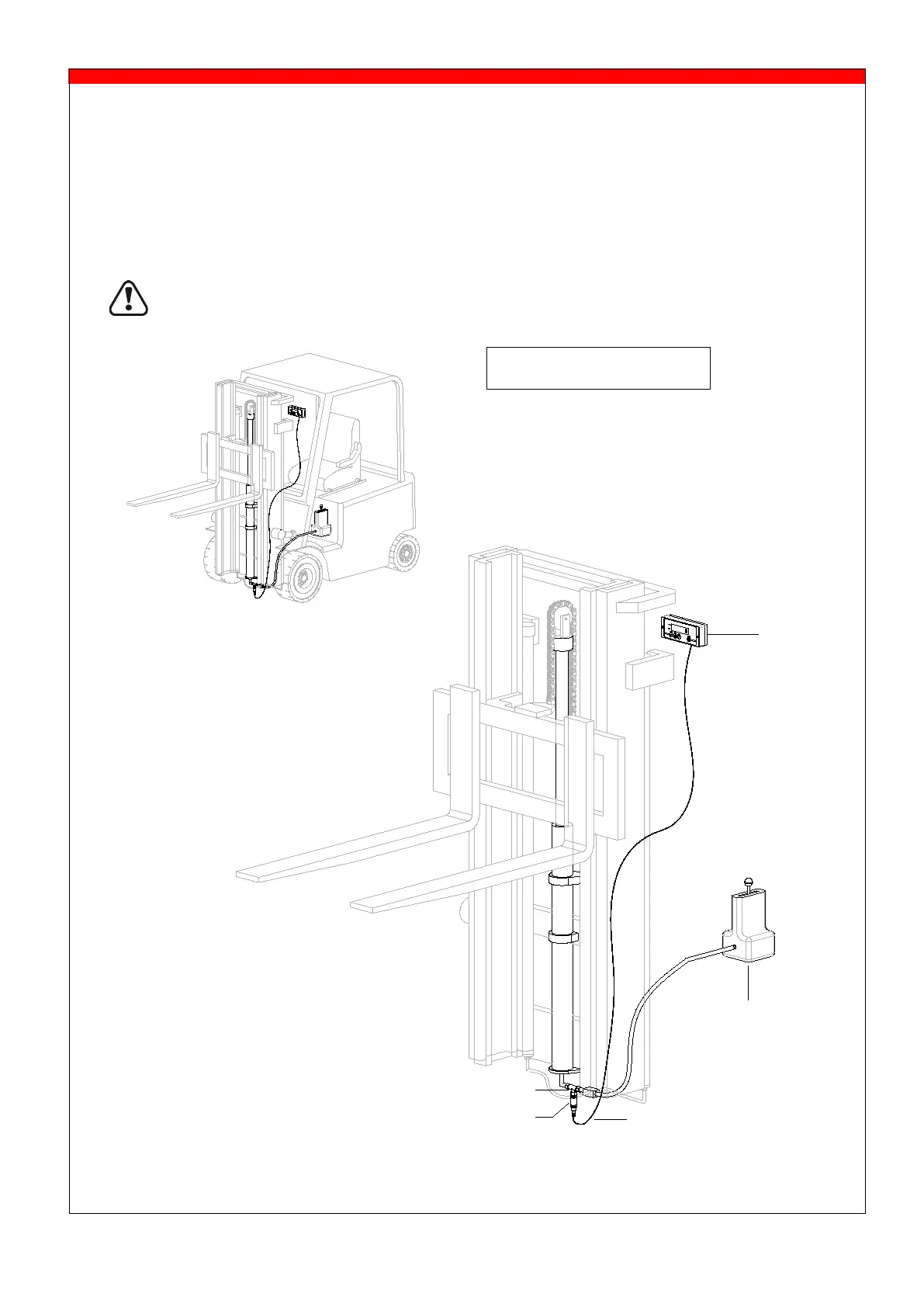

the controlpanel, runs on 6 Volt batteries. On the drawing below you can find the parts of this sytem.
We recommend to have the installation of the sensor in the hydraulic system of the forklift
performed by an authorized lift truck dealer.
Type A: 1 central cylinder
Indicator
T-stuk
Sensor
Sensorkabel
Hydraulisch
ventielblok
sensor cable
hydraulic
valve block
t-part
