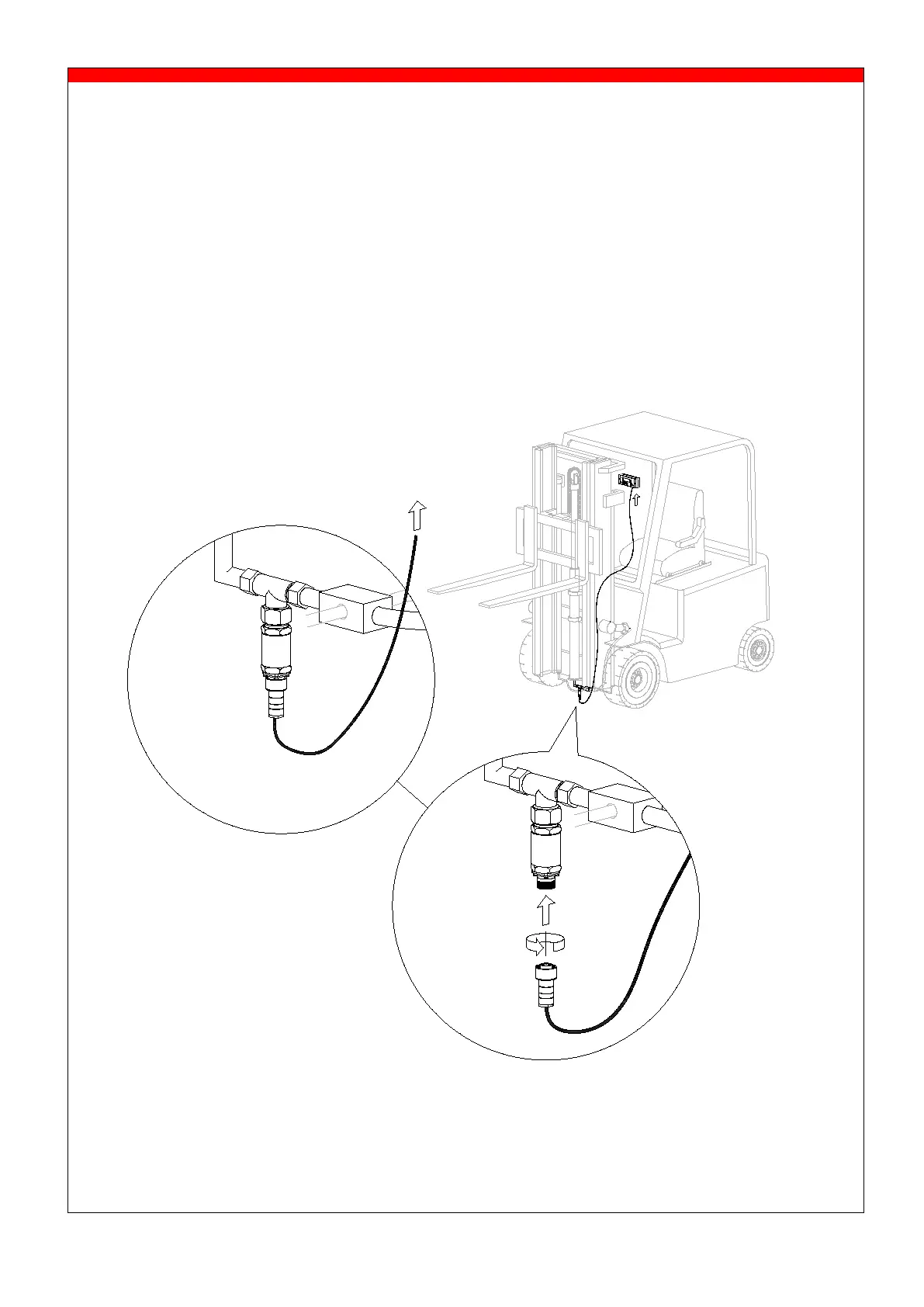

7.5 Mounting the sensor cable
When mounting the cable, it is important that the cable is kept tidy and protected. Keep the cable out
of sight as much as possible, this makes that the whole looks tidy and it minimizes the possibility of
damage to the cable.
It may be necessary to thread the cable through small openings, openings through which the 18mm
connector does not fit. In that case it may be necessary to dismount the cable and the connector, you
have to dismount the cable at the indicator.
The system is supplied with a protective cover for the cable. This can be used where:
• the cable is near parts of the lift truck that become hot;
• the cable is mounted near moving parts.
