USER MANUAL – RCS

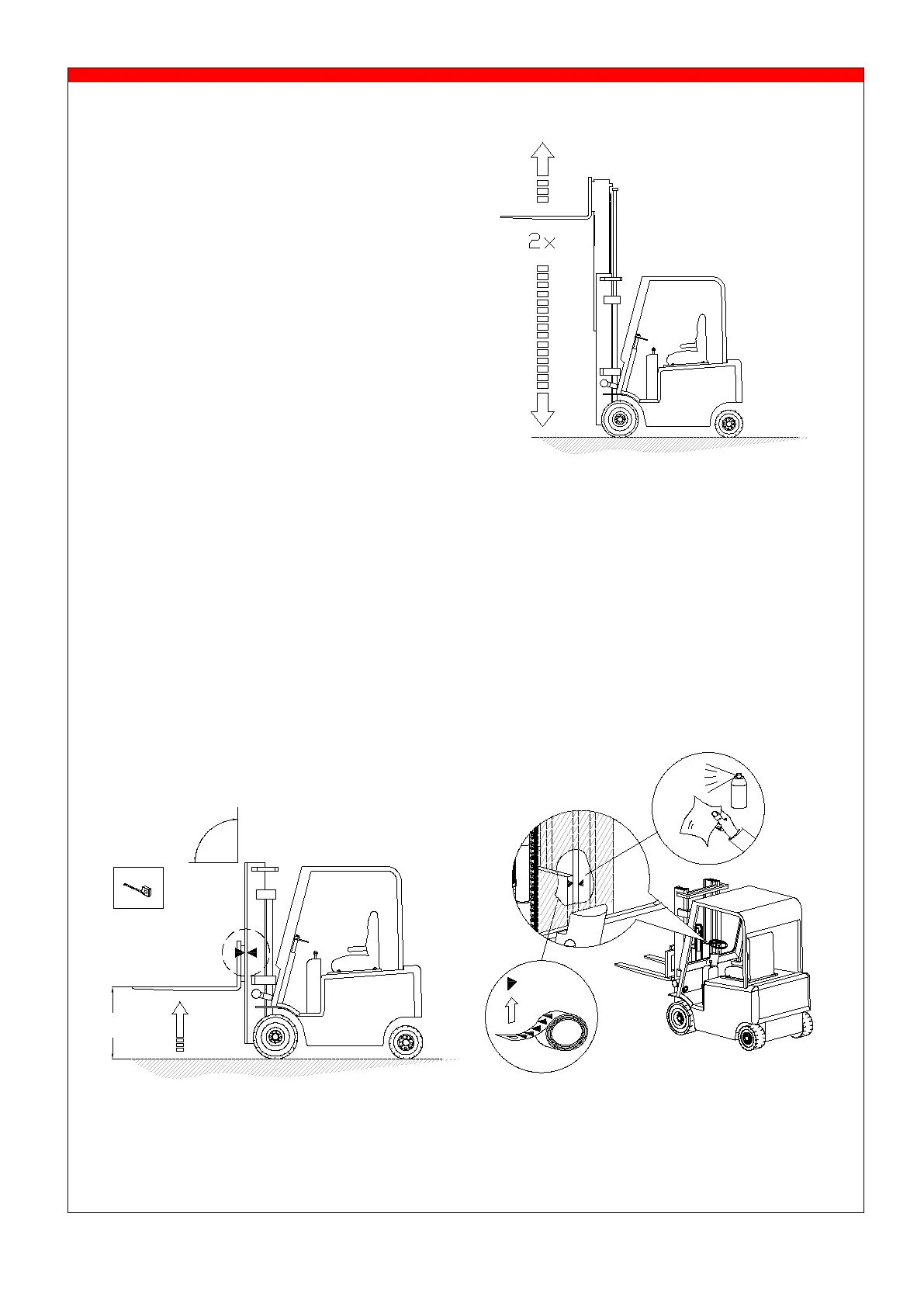

7.7 Remove any air from the hydraulic system
7.8 Placing stickers, marking the reference altitude
Two stickers are supplied with this kit. One of the stickers is placed on the mast and one on the
carriage plate. The arrow stickers are used to show the reference height.
Attention:
• Make sure that the chauffeur can see the stickers;
• Make sure that there is minimal distance between the two arrows. The larger the distance, the
more difficult it will be to gauge the height accurately;
• Choose a practical height: not too high, because then lifting will take more time.
Moreover, it may be dangerous to lift heavy loads too high.
Bring the forks to maximum
height twice to remove any
remaining air from the
hydraulic system.
In a dirty operating environment it is
better to mark the reference altitude
permanently
.
