CHAPTER
6
Chassis Cable Installation: Chassis Cable Routing and Connection 43
CHAPTER 6
CHASSIS CABLE INSTALLATION
CHASSIS CABLE ROUTING AND CONNECTION
BEST PRACTICES AND RECOMMENDATIONS
Do not connect battery leads until all cables are installed and connected.
Route chassis cabling along existing cabling or plumbing to help avoid pinch points or stretching the cable
during normal equipment operation.
ECU CABINET TO RCM - SPRAYER CONNECTIONS
1. Locate the single, round connector on the RCM - Sprayer cable (P/N 115-2005-019) provided in the kit.
2. Route this connector to the outside back wall of the ECU Cabinet and connect to the bulkhead connector of the
Hawkeye® 2 bulkhead cable installed previously. Align the connector keyways and rotate the locking collar to
secure.
3. Route the RCM - Sprayer cable (P/N 115-2005-019) back along the frame rail towards the RCM - Sprayer
installed previously.
4. Connect the gray and black rectangular plugs to their mating connections of the RCM - Sprayer.
5. Secure the cable with the cable ties provided.

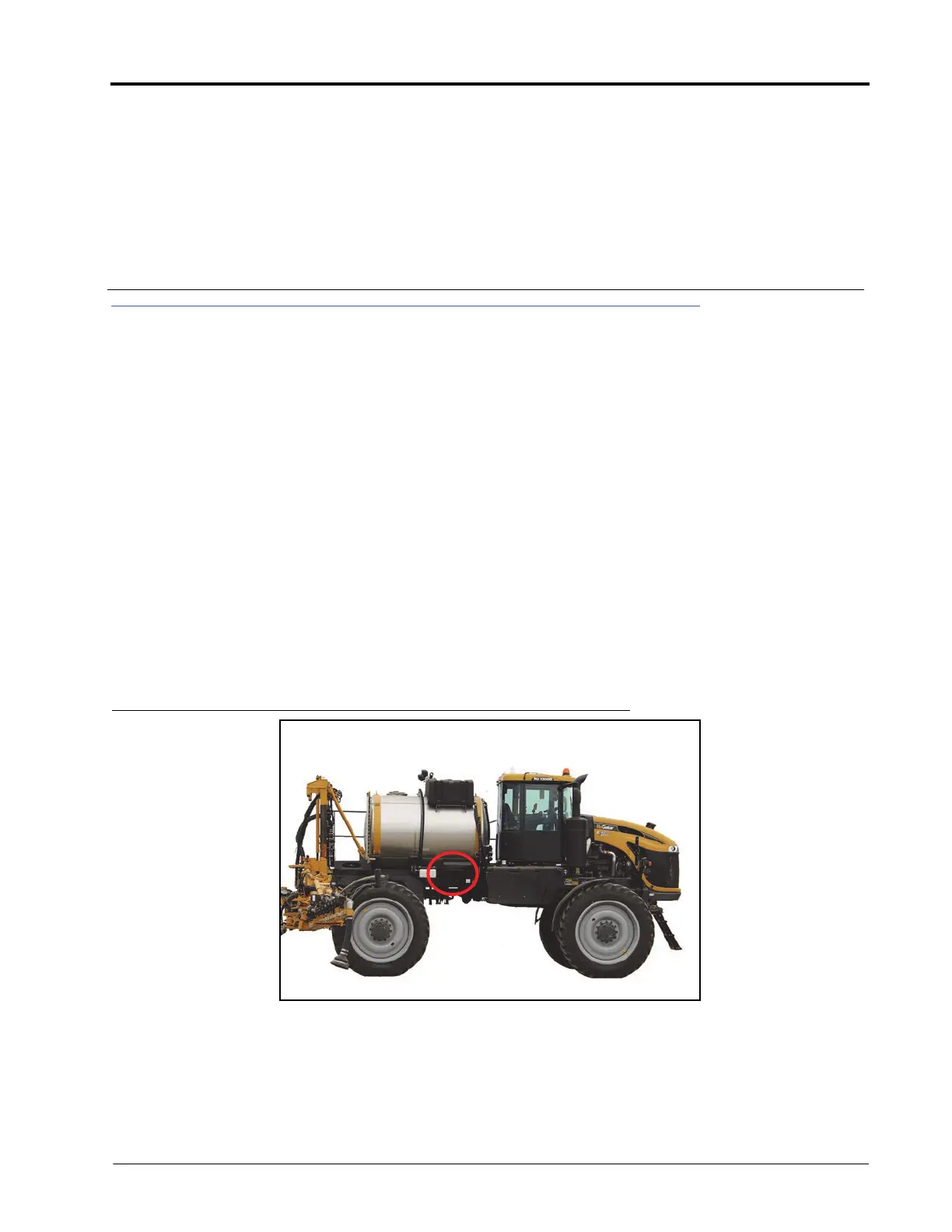

FIGURE 1. Chassis Cable ECU Cabinet Connection
