HAWKEYE® 2 ECU NCV POWER CABLE INSTALLATION
1. Locate the Hawkeye® 2 NCV Power cable (P/N 115-2005-017) provided in the kit.
2. Connect the black rectangular AmpSeal connector to the center port of the RCM - Sprayer installed previously.
3. Route the round connectors labeled “left boom” and “right boom” along the right frame rail towards the rear of
the machine.
4. At the rear of the applicator tank, route the chassis cable underneath the rear catwalk and then up and over the
center rack framework. Follow the supply lines to ensure adequate slack for operating the center rack during
field operations and when folding and unfolding the booms.

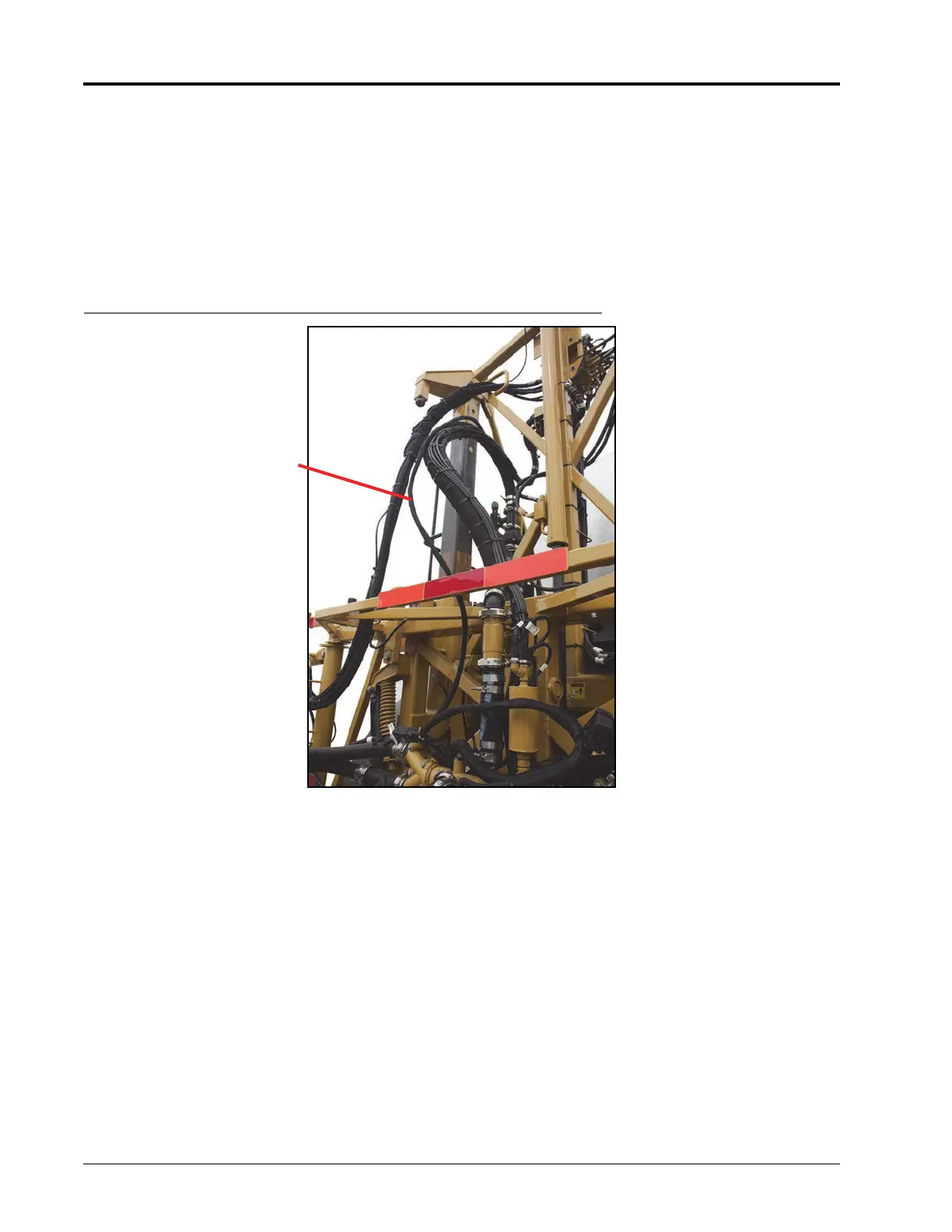

FIGURE 2. NCV Power Cable Center Rack Routing
5. Use zip ties to secure the NCV Power cable to existing system lines to keep the cable from being damaged
during normal equipment operation.
6. Connect the NCV power cable to the left and right boom cable connectors at the center rack.
7. Use supplied zip ties to secure any excess cabling on the center rack framework.
8. When installation is complete, re-connect the positive NCV power ring terminal before operating the
equipment.
