CHAPTER
5
Install the Hawkeye® 2 RCM - Sprayer: RCM - Sprayer Installation 33
CHAPTER 5
INSTALL THE HAWKEYE® 2
RCM - SPRAYER
RCM - SPRAYER INSTALLATION
BEST PRACTICES AND RECOMMENDATIONS
Do not connect battery leads until all cables are installed and connected.
If a protected mounting location is not available on the equipment, mount the RCM - Sprayer with the
connectors facing down toward the ground to prevent moisture from accumulating in the RCM - Sprayer
connections.
RCM - SPRAYER MOUNTING LOCATION
1. Locate the foam marker pump (if applicable) and ECU cabinet between the axles on the right side of the
machine.

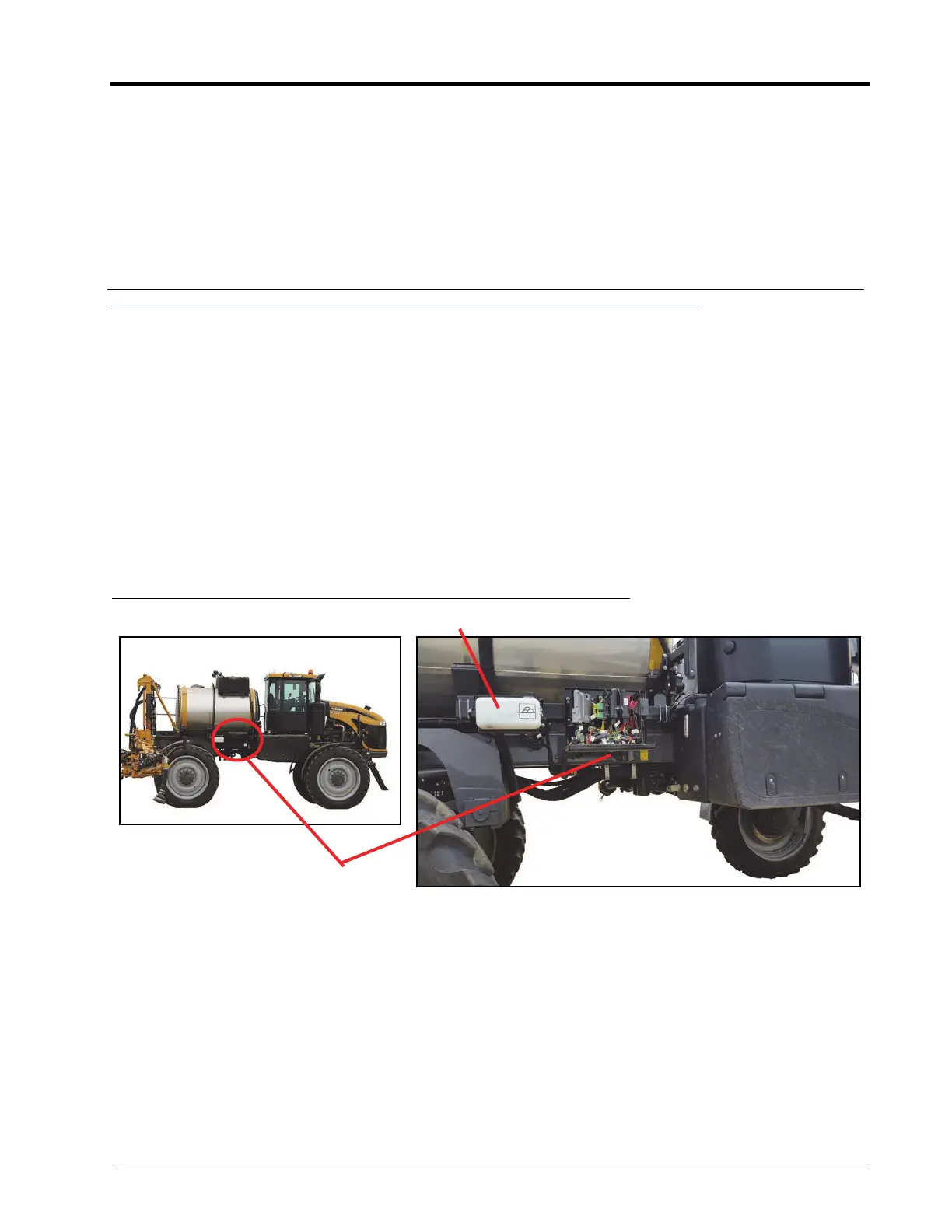

FIGURE 1. RoGator 1300 ECU Cabinet and Foam Marker Pump Location
NOTE: If a foam marker is present on the machine, refer to the “RCM - Sprayer Mounting With Foam Marker”
on page 34.
If Raven Autoboom XRT is already installed on this machine, refer to “RCM - Sprayer Mounting with
Raven Autoboom XRT” on page 36.
2. Use the supplied u-bolts (P/N 107-0171-852) and 3/8” hardware to secure the RCM - Sprayer mounting plate
(P/N 107-0235-015) to the outside of the frame structure, roughly 12” behind the ECU cabinet. Mount the plate
so that the tabs at the bottom of the plate face toward the center of the machine.
Machine ECU
Cabinet
Foam Marker
