CHAPTER 4
28 Hawkeye® 2 Installation Manual for AGCO RoGator C-Series (RG900, RG1100, RG1300)
INSTALL THE PROSTOP-E VALVE
NOTE: For the Wilger version of Hawkeye® 2 kits, the Hawkeye® 2 system will control the Hypro ProStop-E
on/off valve in addition to the NCV. In order to accommodate both valves, a Wilger dual drop nozzle
body is installed along with an adapter for the ProStop-E.

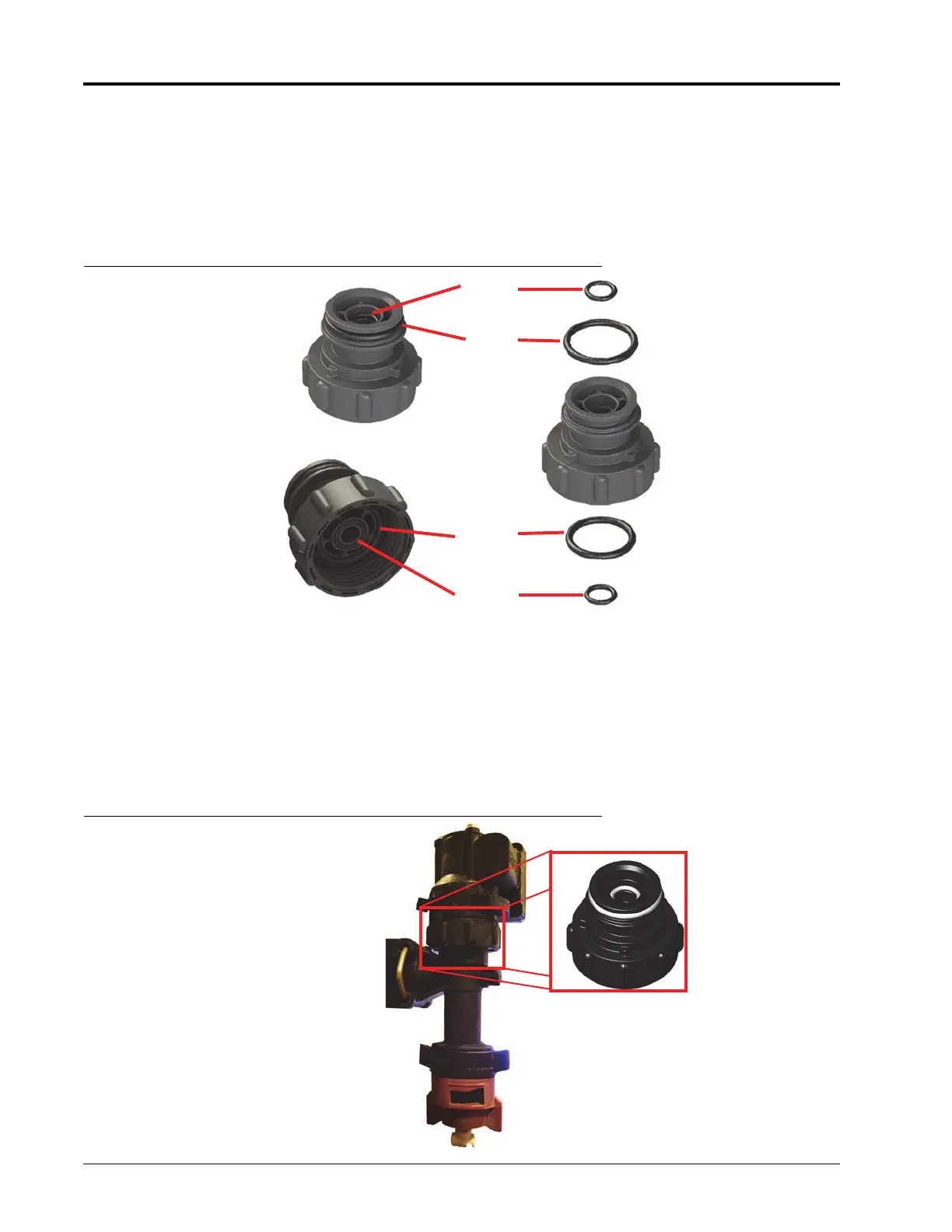

1. Install the four O-rings into the ProStop-E adapter.
FIGURE 7. ProStop-E Adapter O-Ring Installation
2. Remove the ProStop-E valve from the original Hypro nozzle body by removing the U-clip that attaches it to the
threaded nut. Pull on the valve to separate it from the nut, and spin the nut to remove it from the nozzle body.
NOTE: Leave the ProStop-E connected to the existing cabling.
3. Remove the Hypro Nozzle body from the boom tubing.
4. Thread the ProStop-E adapter (P/N 063-0173-964) onto the threaded port of the Wilger nozzle body furthest
from the boom tube clamp.
FIGURE 8. ProStop-E Adapter Installation Location
#2-011
#2-117
(Largest)
#2-116
#2-111
To Next Page
