Introduction: Make and Model Compatibility 9
INTRODUCTION
MACHINE CONFIGURATION NOTES
The AGCO AccuTerminal does not need to have settings changed to function with RCM - Sprayer.
The AGCO AccuTerminal and other ECUs should be updated to the latest software by an AGCO Service
Provider. For 36 section control, the AGCO RoGator C Liquid EXT software must be updated to version 1.02 or
newer.
The Raven RCM - Sprayer ECU must be updated to software version of v21.2.1.7 or newer.
When prompted to setup the machine configuration, complete the following steps:
NOTE: Machine configuration process is compatible for Hawkeye NCVs, AGCO ProStop-E valves, or both
Hawkeye NCVs and AGCO ProStop-E valves simultaneously with dual outlet nozzle bodies. The
process only needs to be completed once during the initial installation.
1. Refer to tables above to find the matching boom/spacing configuration column to the physical machine.
2. Input the number of sections of the matching boom/spacing in the section setup screen as shown in Figure 1,
“Section Setup - Number of Sections,” below. There will be 15, 16, 35, or 36 sections based on the “Section”
column in the tables above.
NOTE: It is not necessary to check the fence row option as this functionality is controlled via AGCO switches
and cabling.

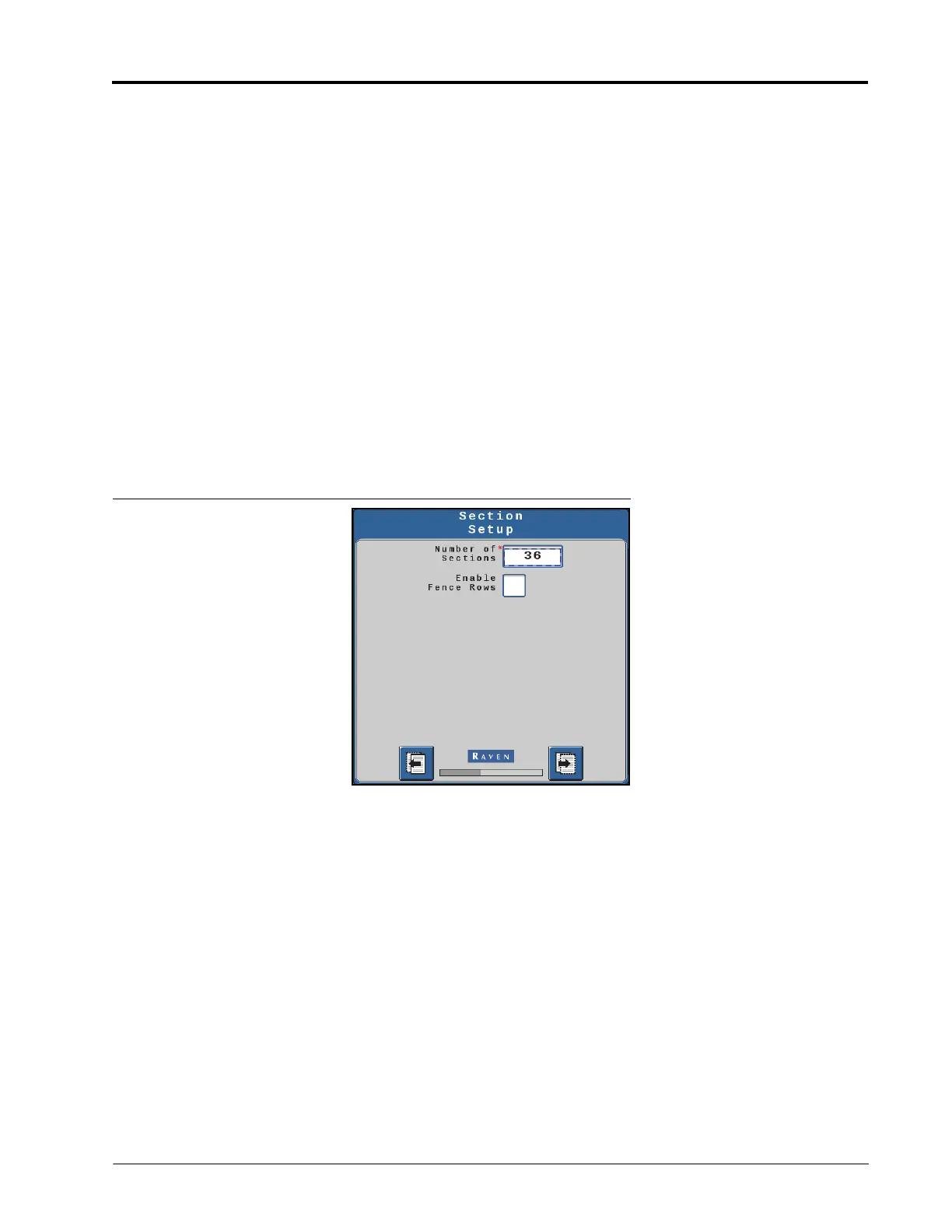

FIGURE 1. Section Setup - Number of Sections
3. Press Next to advance.
