SETUP WORKING WIDTH | CR7 | QUICKSTART STEERING MANUAL
13

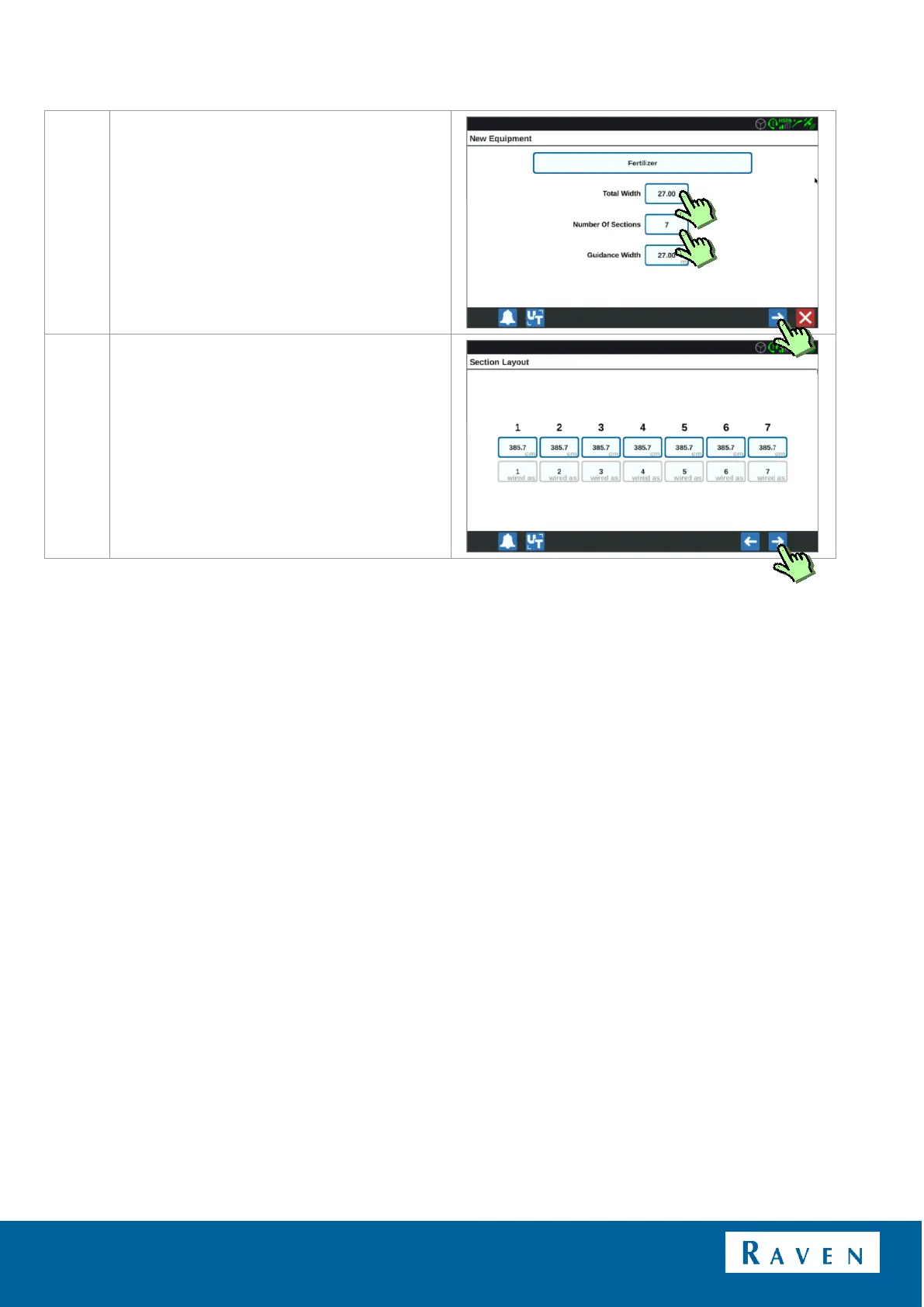

In this example is a Fertilizer which has 7
sections. Total width is the same as Guidance
width so there is no overlap.
Enter the # of sections.
Press next step.
14
The sections are automatically configured. If
the width of the sections differ, manually
change the width per section.
Press next step.
