14 Raven RS1™ Guidance and Steering Calibration & Operation Manual

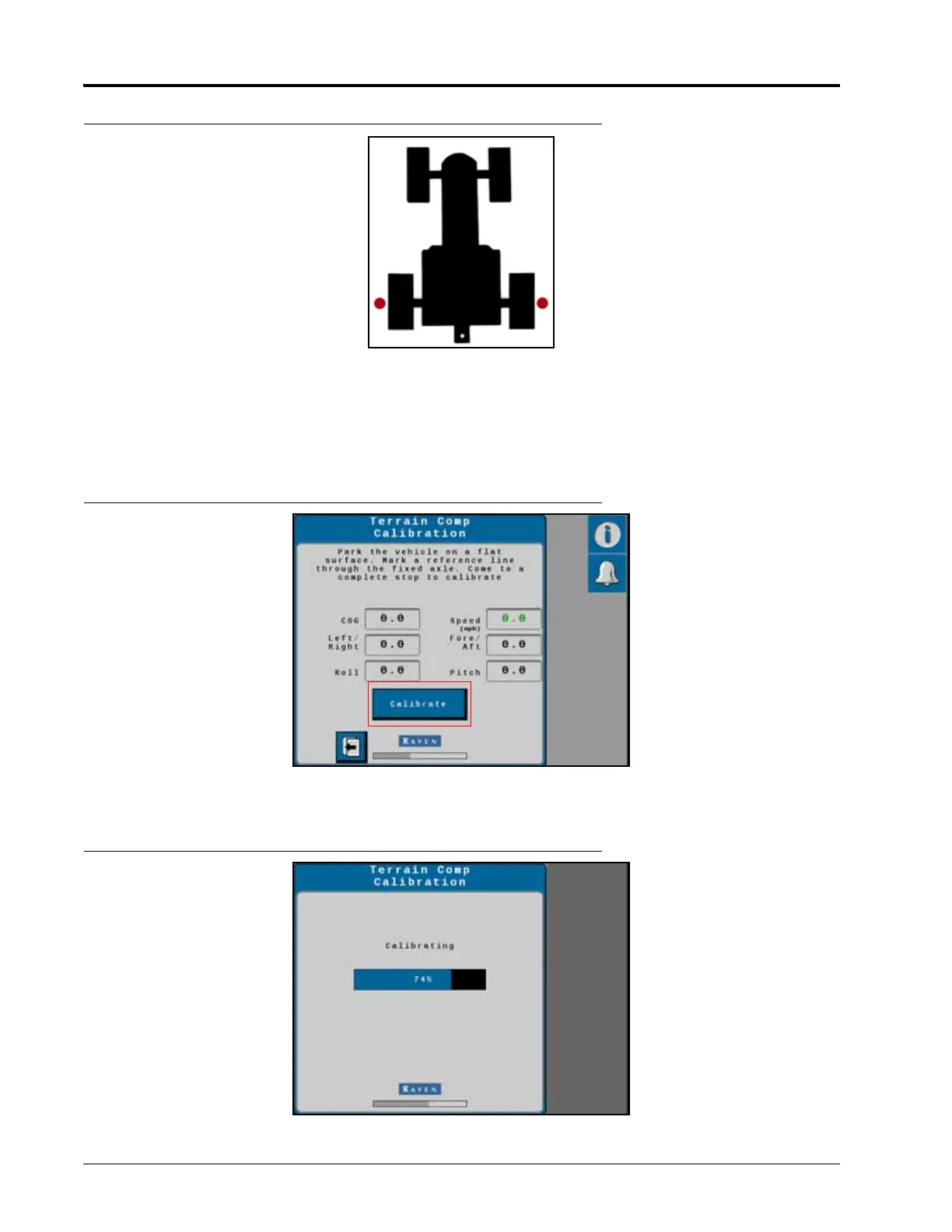

FIGURE 14. Machine’s Rear Axle Marked Before Terrain Comp Calibration
4. Place flags or markers on the outside of each wheel of the fixed axle of the machine.
• Rear axle - Front boom sprayers, rear boom sprayers, and front-steered machines
• Front axle - Articulated tractors, rear-steered machines, and windrowers
• Center of track - Tracks
FIGURE 15. Terrain Compensation Calibration Wizard
5. Select Calibrate to begin the calibration process. The following screen will appear:
FIGURE 16. Terrain Comp Calibration Screen
