Raven RS1/HDU Calibration & Operation Manual

CHAPTER
6
P/N 016-4010-001 Rev. A 37
CHAPTER 6 STEERING SETUP

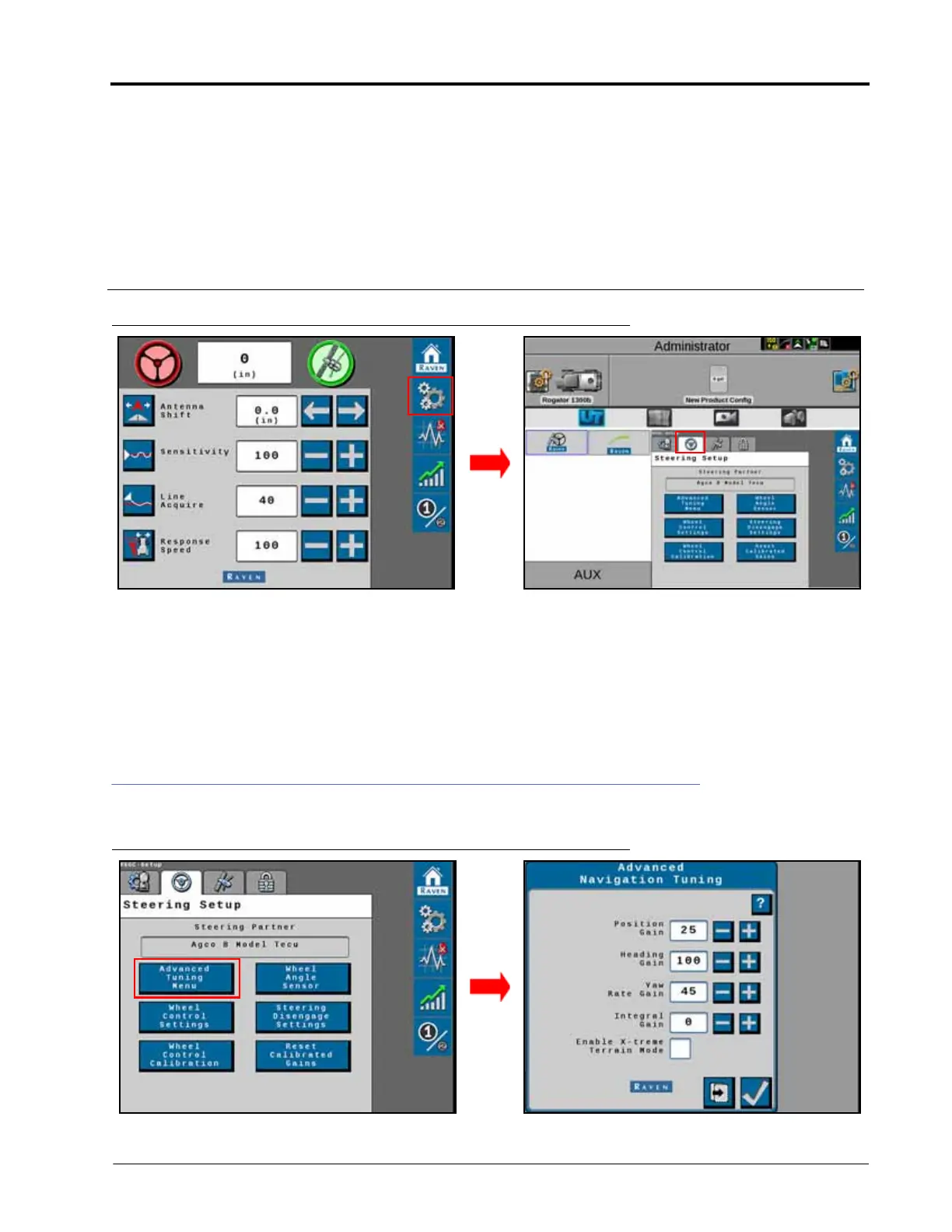

FIGURE 1. Steering Setup Screen
The Steering Setup screen displays the steering partner that the RS1 unit communicates with during steering
operation. The Steering Setup screen contains the functions that allow the operator to fine-tune the steering
system.
NOTE: The Steering Setup tab is hidden from view if GPS Only was selected during the RS1 system
calibration.
ADVANCED TUNING
FIGURE 2. Advanced Tuning Menu
