CHAPTER 9
ROUTINE OPERATION

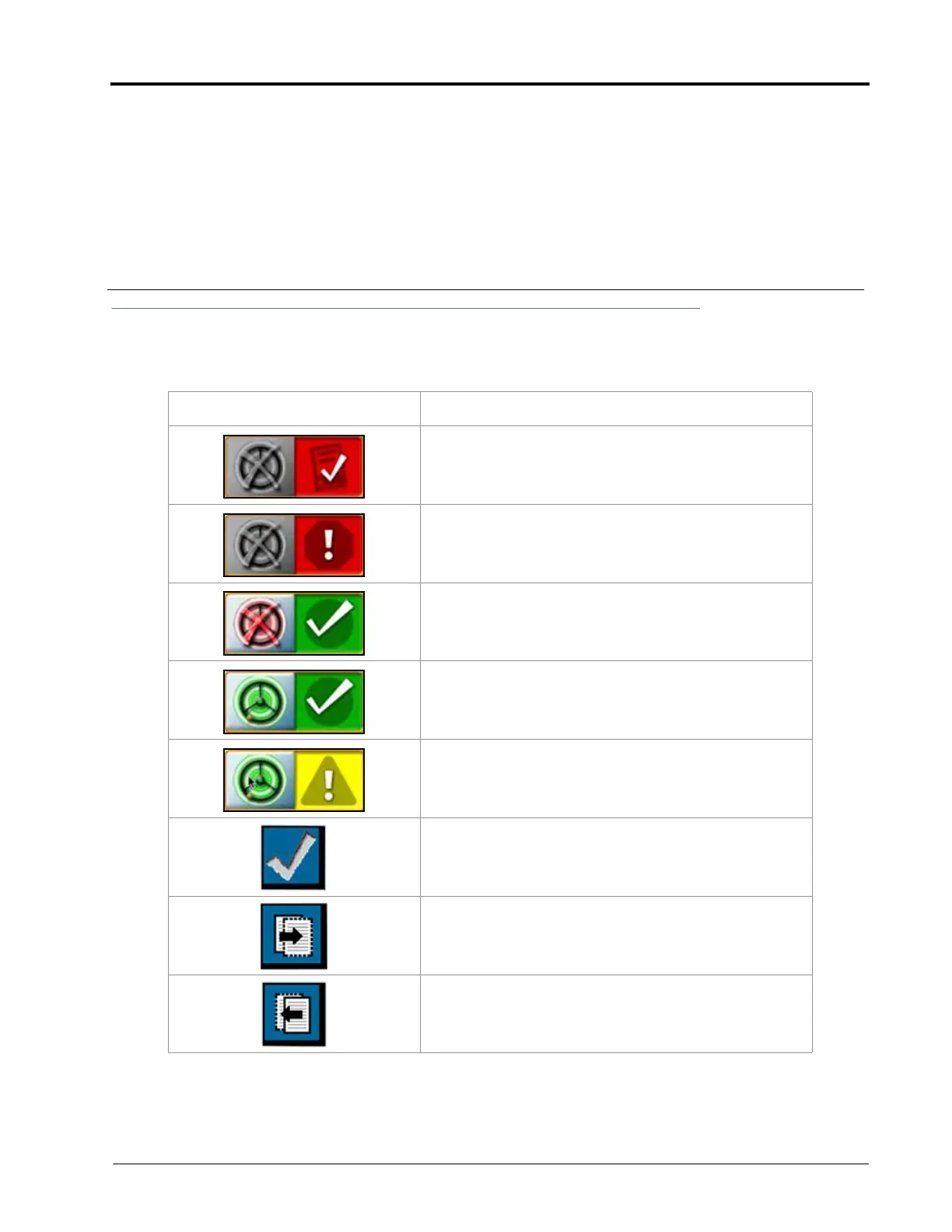

WIDGET AND BUTTON DEFINITIONS
The following are common status or mode information which may be displayed in the RS1 system while in a job:
NOTE: Refer to Diagnostic Trouble Codes (DTC) section on page 61 for additional status conditions which
may be displayed in the RS1 on-screen widget.
Display Message
The RS1 node is detected, but the operator must accept
responsibility for the operation of the RS1 system.
No A-B path or guidance line has been set or an active
DTC is preventing the RS1 system from engaging.
RS1 is detected, turned on, and calibrated.
RS1 is detected and in operation.
Vehicle speed is too fast or too slow for RS1 operation
and the system will disengage.
Accept - Saves the changes made to the RS1 system at
the end of the setup process and returns the to the
Tools Menu.
Next - Saves the changes made to the RS1 system and
proceeds to the next step in the setup process.
Previous - Returns the Viper 4 display to the previous
screen in the setup process.
