DIAGNOSTICS AND TROUBLESHOOTING
DIAGNOSTIC TROUBLE CODES (DTC)
FIGURE 4. Diagnostic Trouble Codes Screen

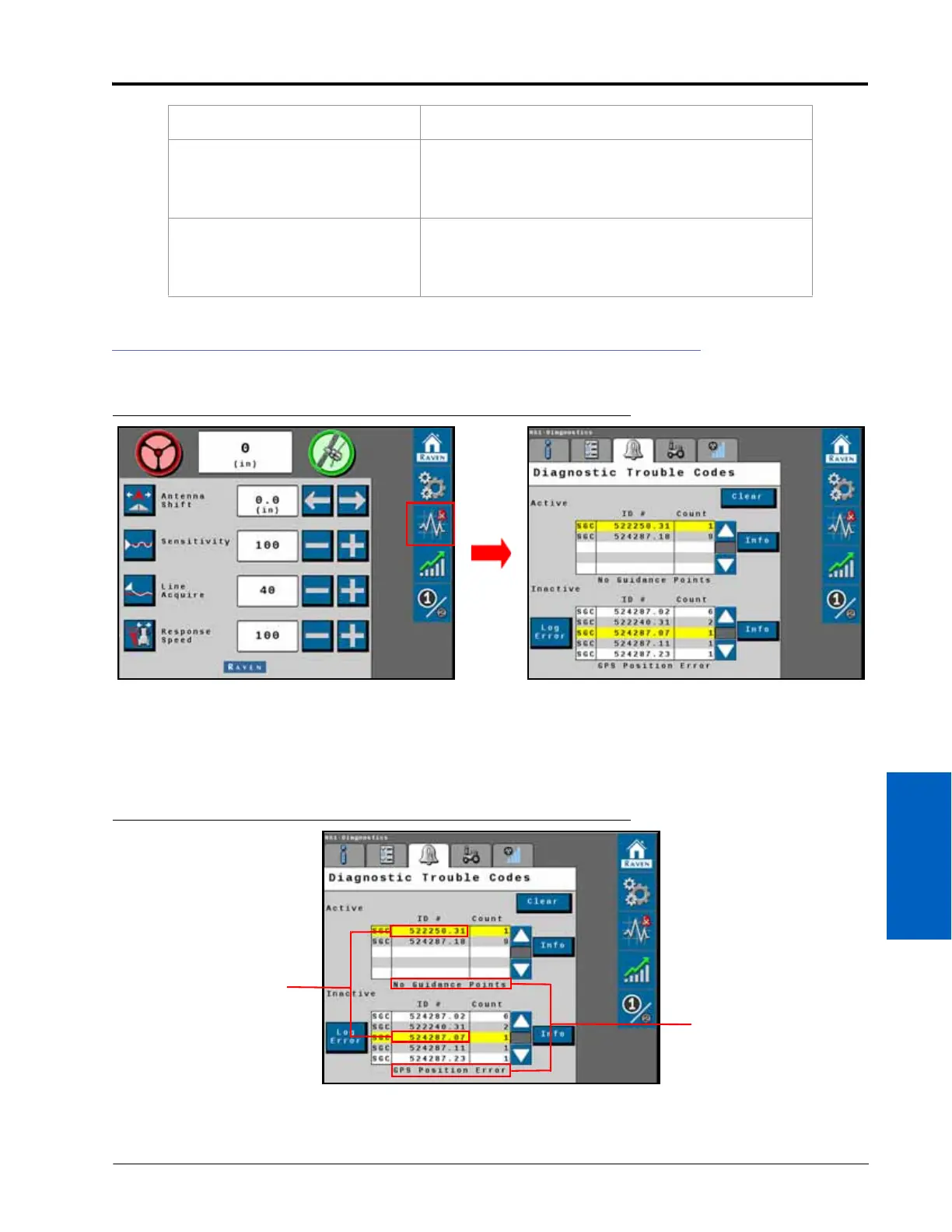

The Diagnostic Trouble Code screen displays active and previous diagnostic trouble codes (DTCs) that occur
during RS1 system operation. Active DTCs must be fixed before the RS1 system can be enabled for guidance and
steering operation. Once a DTC has been corrected, the code moves to the inactive DTC code list. Refer to Figure
3 for an example of DTCs and DTC summaries.
FIGURE 5. Diagnostic Trouble Codes Screen
NOTE: In Figure 3 above, the active DTC is 522250.31 and the DTC summary is “No Guidance Points.” The
inactive DTC is 522261.31 and the DTC summary is “No SCU Detected.”
HDOP
Horizontal Dilution of Precision. If all of the satellites in
vew are from the same direction, the number will be
higher and the accuracy will be reduced.
Age of Differential
Time (in seconds) since the last differential correction
was received. If a differential source is not currently
tracked this entry will be “- - - -”.
Display Message
Diagnostic Trouble
Code (DTC)
DTC Summary
