CHAPTER 3
22 Raven RS1™ Guidance and Steering Calibration & Operation Manual
3. Place flags or markers on the outside of each wheel of the fixed axle of the machine.
• Rear axle - Front boom sprayers, rear boom sprayers, and front-steered machines
• Front axle - Articulated tractors, rear-steered machines, and windrowers
• Center of track - Tracks

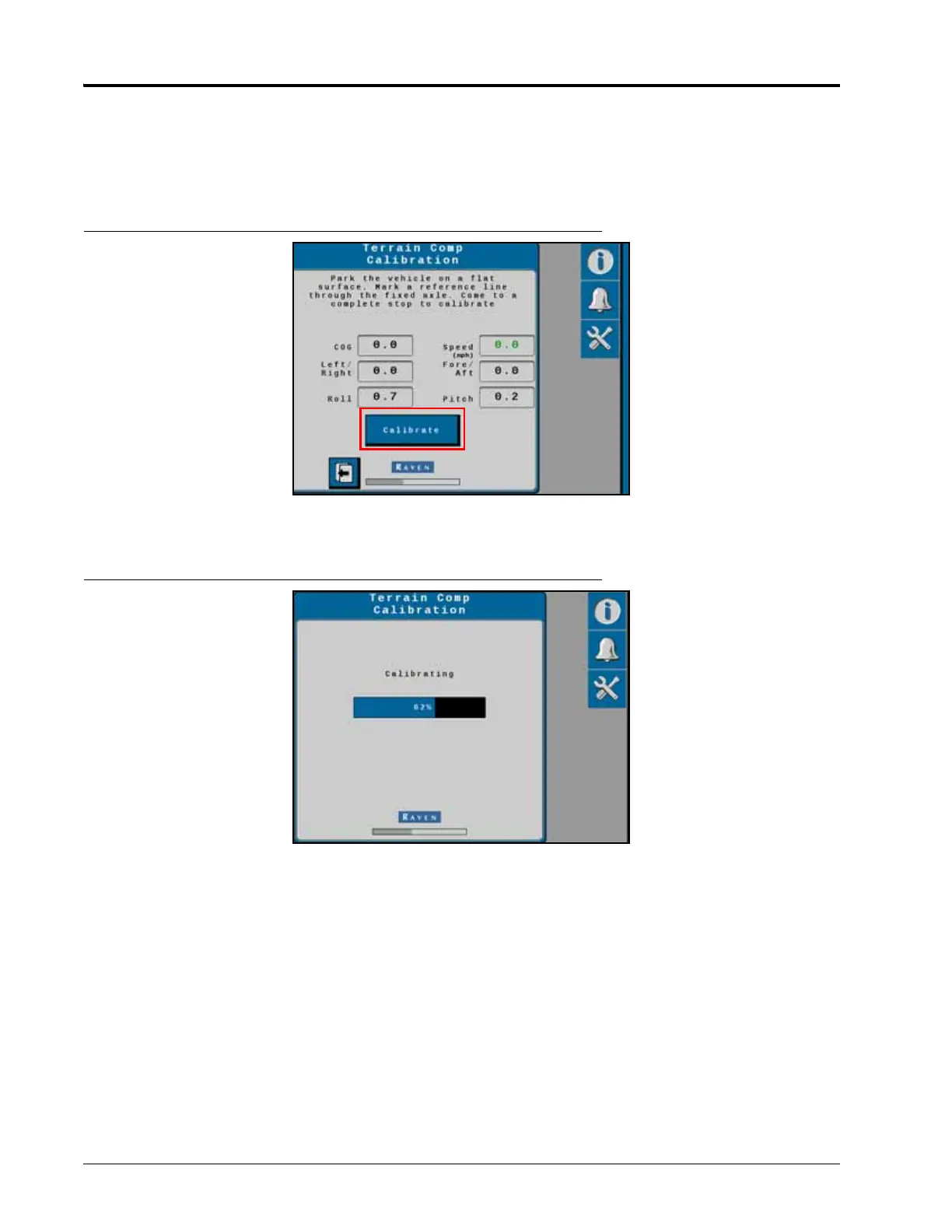

FIGURE 33. Terrain Comp Calibration Screen
4. Select Calibrate to begin the calibration process. The following screen will appear:
FIGURE 34. Terrain Comp Calibration Screen
5. Wait for the calibration process to be completed before moving the vehicle.
