CHAPTER 5
34 Raven RS1™ Guidance and Steering Calibration & Operation Manual

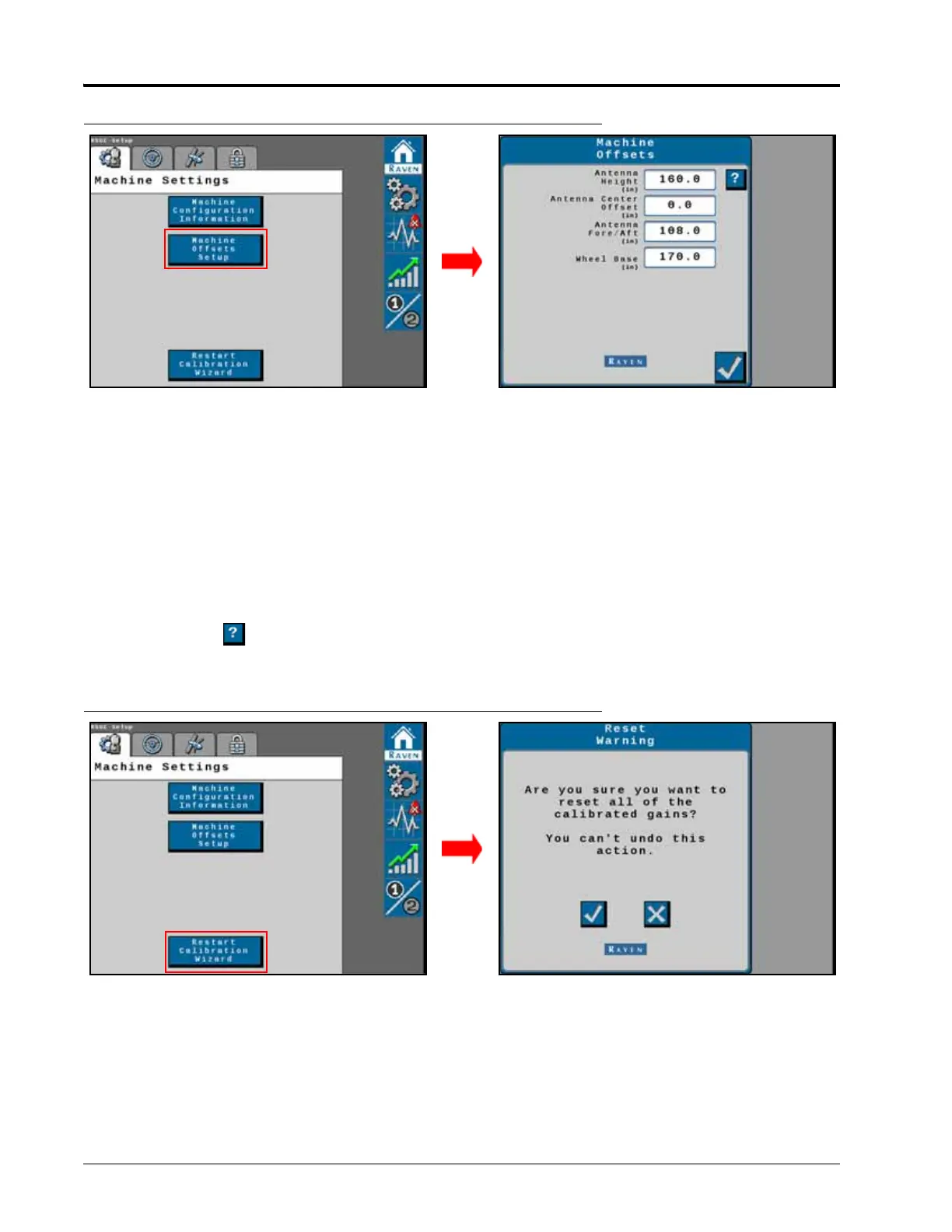

FIGURE 3. Machine Offsets Setup Screen
Antenna Height - The Antenna Height is calculated by measuring from the ground to the center of the RS1
unit.
Antenna Center Offset - The Antenna Center Offset position is calculated by measuring from the center of the
machine to the center of the RS1 unit. A negative value should be entered if the RS1 unit is located to the left of
the machine’s center line.
Antenna Fore/Aft - The Antenna Fore/Aft position is calculated by measuring from the rear axle of the
machine to the middle of the RS1 unit. A negative value should be entered if the RS1 unit is located behind the
rear axle.
Wheel Base - The Wheel Base is calculated by measuring from the center of the front tire to the center of the
rear tire.
Help Menu Icon - Pressing the Help Menu icon displays the Help Menu. The Help Menu contains
additional information about the settings contained within that screen.
FIGURE 4. Restart Calibration
Restart Calibration Wizard - Select the check button to restart a new calibration, or select the X button to
cancel the calibration reset and return to the Machine Settings screen.
NOTE: If Restart Calibration is selected, the RS1 system must be recalibrated before the system can be
enabled. Refer to Chapter 3, Calibration on page 7 for information on completing the RS1 system
calibration.
