Install the DirecSteer System
Install the Anti-Rotation Bracket

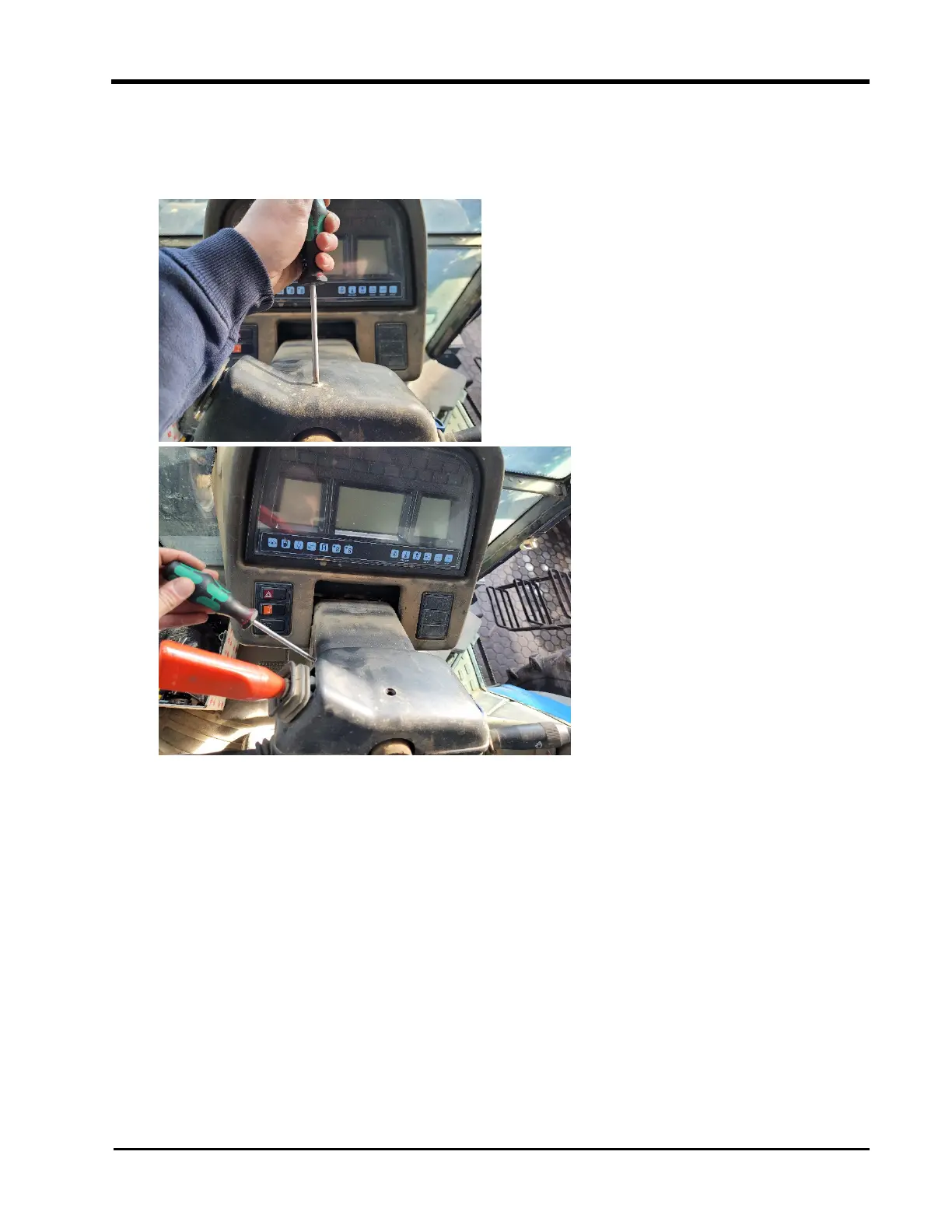

1. Remove the 3 screws securing the cover on the front/top of the steering column.
Note: Two of the screws are on either side of the cover.
21
