Install the DirecSteer System

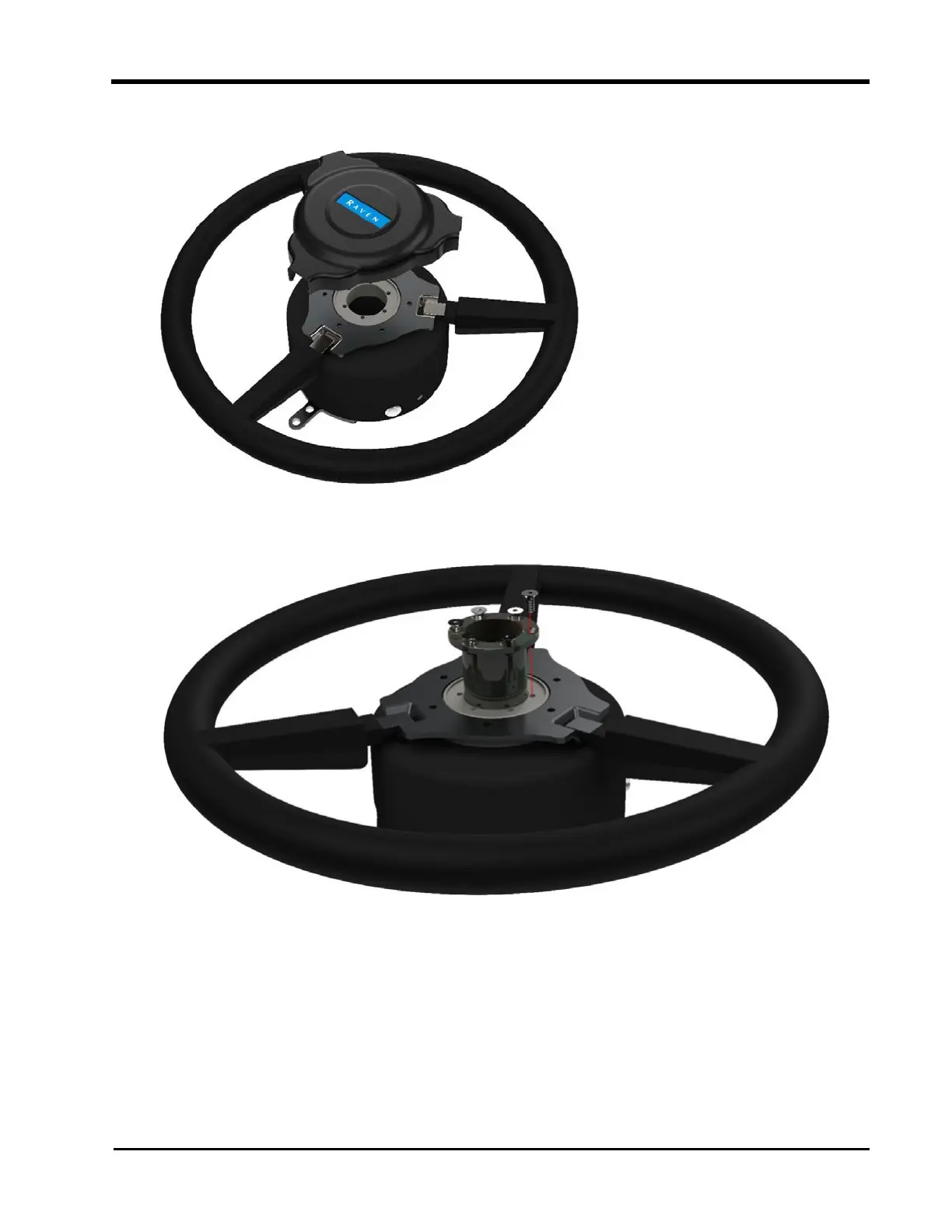

2. By hand, remove the center cover from the DirecSteer assembly.
3. Install the spline adapter (P/N 107-4050-013) into the center of the DirecSteer
assembly and secure using the six provided M5x12 bolts (P/N 311-4070-090).
Attach the DirecSteer Assembly to the Steering Column
1. Insert the anti-rotation pin through the bearing with the thread end pointing toward
the spline of the steering column.
Note: Use a hex key or small screwdriver through the hole at the bottom of the anti-
rotation pin for additional leverage to thread the pin into the bracket.
