Install SC1™/TC1™ with DirecSteer
SC1™ and DirecSteer System Diagrams
The following sections contain example diagrams of various systems which may interface
with the auto-steer system.

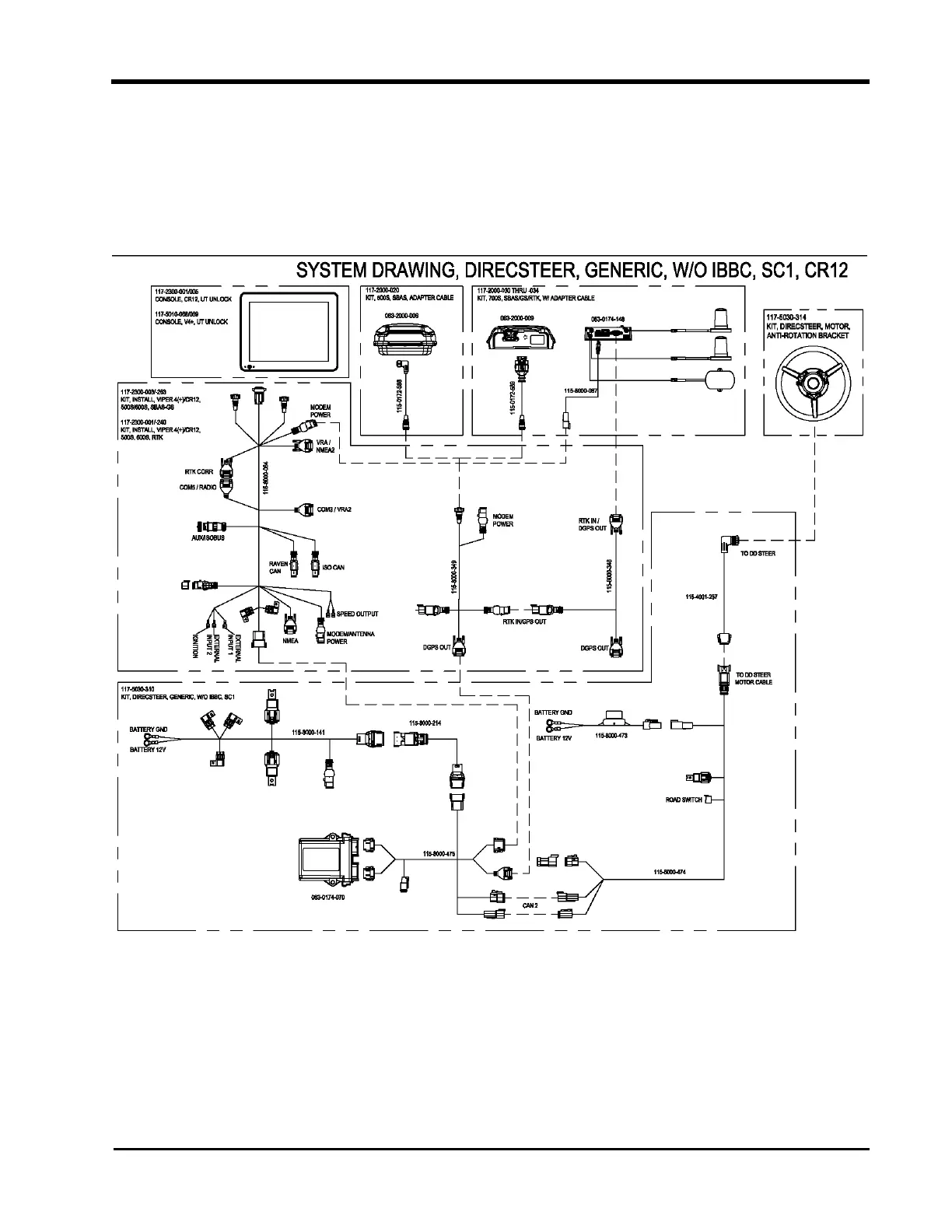

DirecSteer System Diagram w/ SC1™ and CR12™ w/o IBBC (P/N 054-5030-310 Rev. A, Pg. 1)
