Chapter6
1. Locate the battery terminal rings on the DirecSteer power cable (P/N 115-8000-473)
and power harness (P/N 115-8000-060/315 or 115-8000-141).

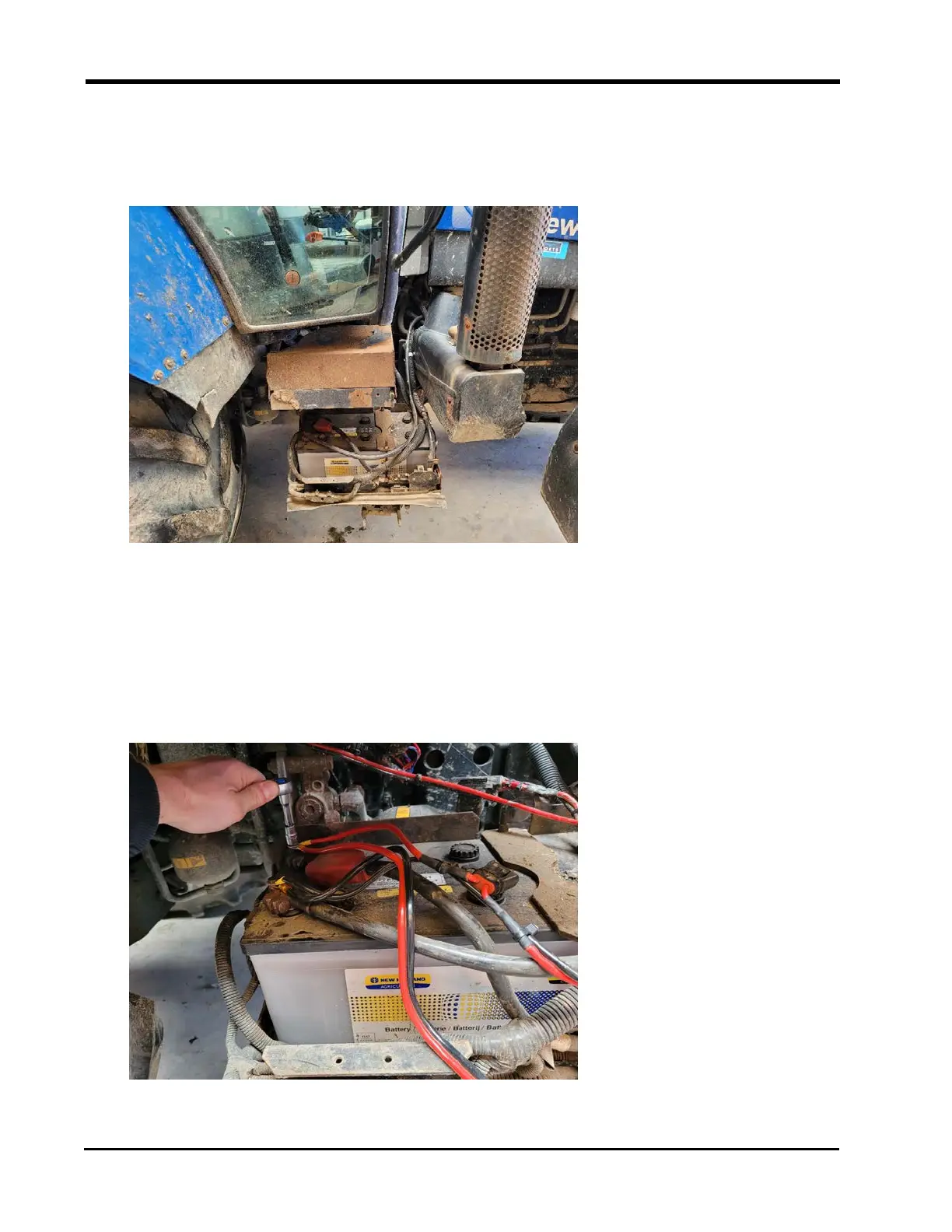

2. Locate and open the battery compartment.
Note: Generally, the battery compartment is located on the right side of the tractor, in
front of the rear tire and below or beside the tractor cab.
3. Route the black and red ring terminals from the power cable and power harness into
the battery compartment.
4. Connect the red lead(s) to the positive battery terminal and the black lead(s) to the
negative battery terminal.
