Chapter
5

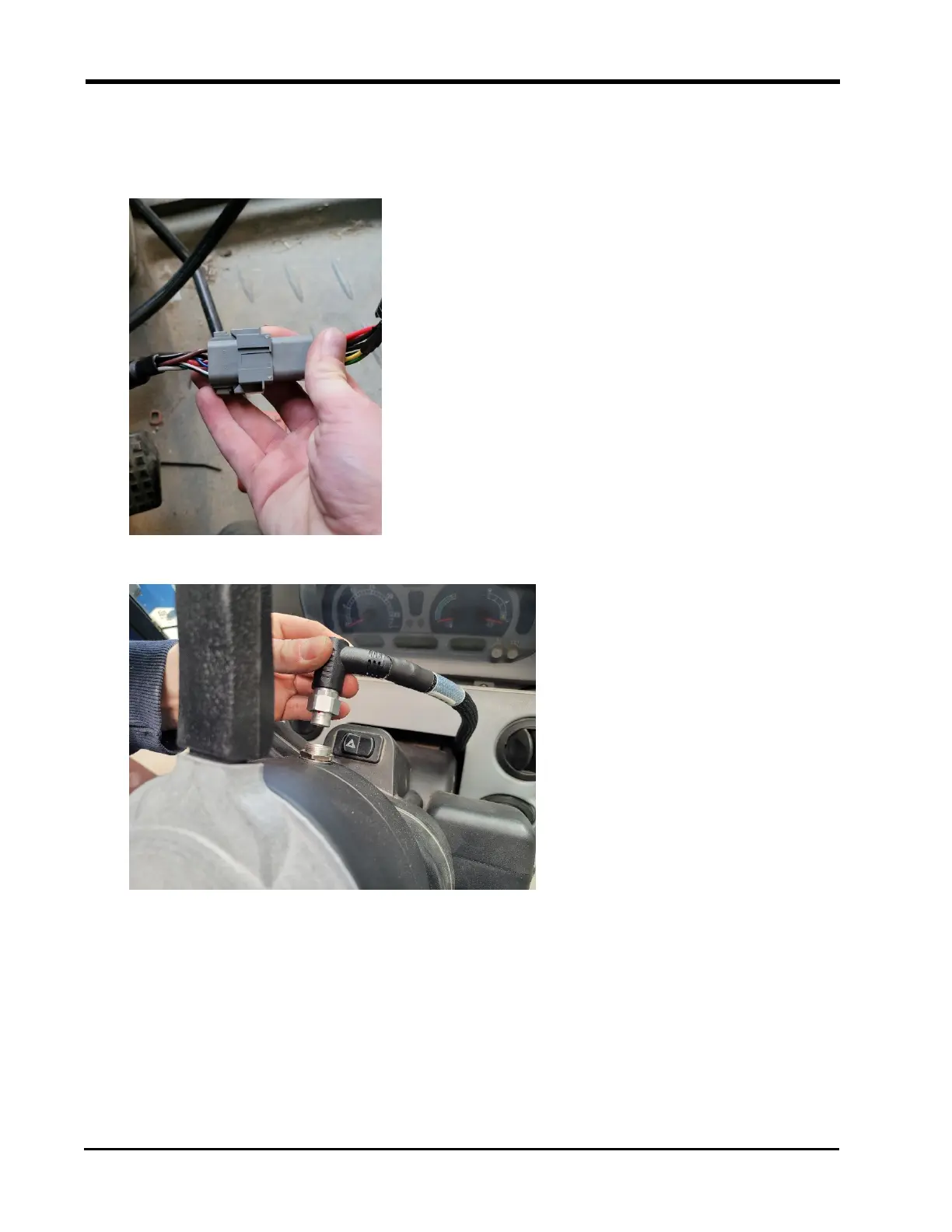

15.
Route
the
8-pin
connector
of
the
DirecSteer
motor
cable
(P/N
115-4001-257)
under
the
floor
mat
to
the
mating
connector
labeled
"DD
Steer
Motor
Cable"
on
the
DirecSteer
main
cable
(P/N
115-8000-474)
located
in
the
side
console.
16.
Connect
the
DirecSteer
motor
cable
(P/N
115-4001-257)
to
the
DirecSteer
assembly.
17.
Connect
the
12-pin
connector
of
the
field
computer
harness
to
the
mating
connector
of
the
RS1™
T-cable
(P/N
115-8000-330).
46
51
53
Table of Contents
Table of Contents
3
Important Safety Information
7
Field Computers, Displays, and Control Consoles
8
Hydraulic Safety
8
Electrical Safety
9
Touch Screen
10
Recommendations and Best Practices
11
Point of Reference
11
Preparing for Install
11
Aerials and Signal Interference
11
Hose Routing
12
Harness Routing
13
Introduction
17
Kit Components
17
Updates
20
Install the Direcsteer System
23
Prepare for the Installation
23
Recommendations
23
Tools Needed
24
Point of Reference
24
Remove the Steering Wheel
25
Install the Anti-Rotation Bracket
27
Install the Direcsteer Assembly
32
Prepare the Direcsteer Assembly
32
Attach the Direcsteer Assembly to the Steering Column
33
Install the Direcsteer System Components
37
Mount the (Optional) Foot Switch
37
Install the Field Computer
38
Install RS1™ with Direcsteer
41
Install the RS1™ Unit
42
Insert a SIM Card in the RS1
42
Assemble the Mounting Brackets
43
Prepare the Roof
43
Connect RS1™ Cabling to Direcsteer
44
Best Mounting Practices
45
Route the RS1™ Cabling to Direcsteer
46
Connect to Power
54
RS1™ and Direcsteer System Diagrams
55
Install SC1™/TC1™ with Direcsteer
61
Install the SC1™/TC1™ Unit
62
Install the Antenna
64
Install the 500S™ Receiver
64
Install the 700S™ Receiver
65
Connect SC1™ Cabling to Direcsteer
65
Best Mounting Practices
66
Route the SC1™ Cabling to Direcsteer
67
Connect the 500S™/700S™ Antenna
75
Connect to Power
75
SC1™ and Direcsteer System Diagrams
77
Limited and Extended Warranties
81
Limited Warranty
81
What Does this Warranty Cover
81
How Long Is the Coverage Period
81
