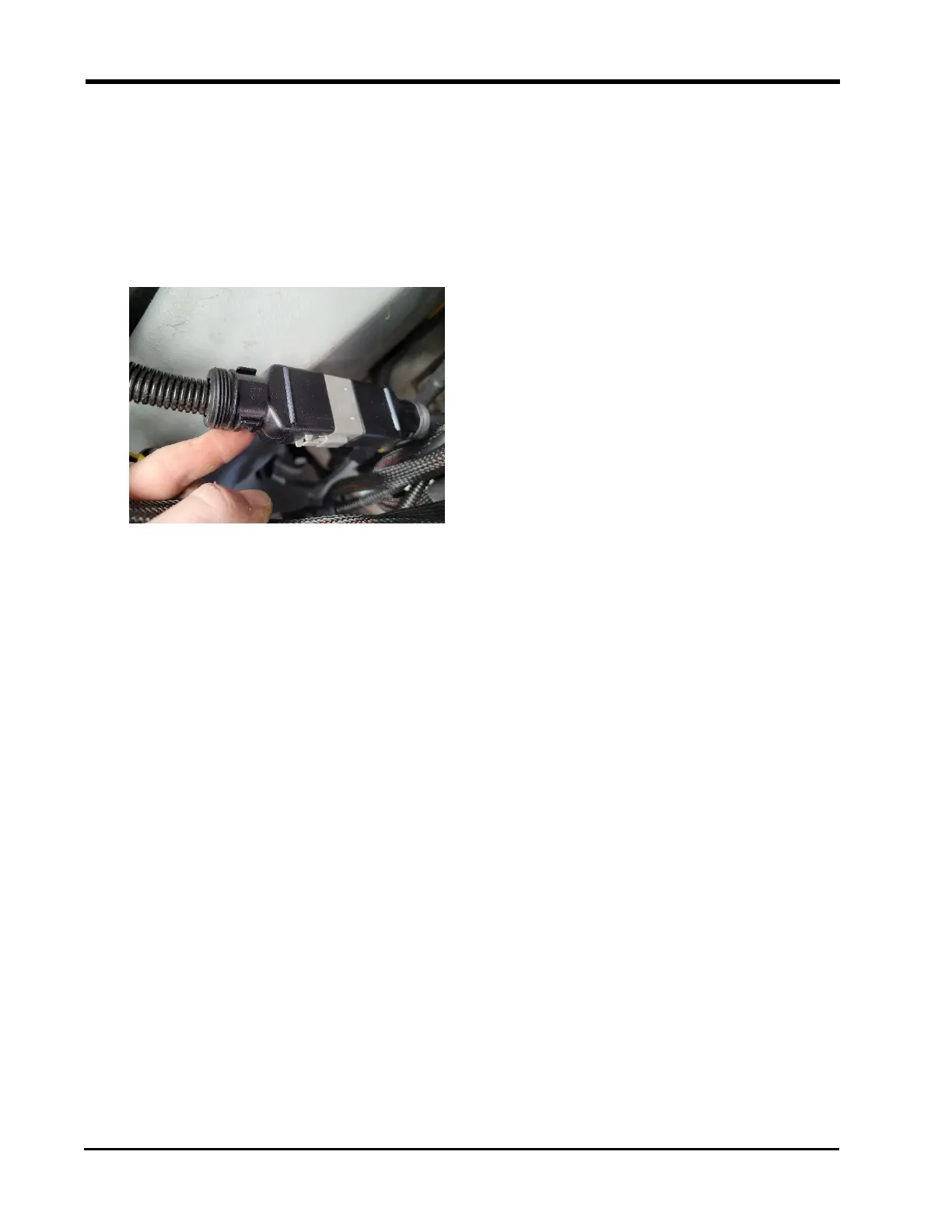

10. Connect the female 12-pin connector of the SC1™/TC1™ cable (P/N 115-8000-475) to
the 12-pin connector of the DirecSteer power harness (P/N 115-8000-060/315 or 115-
8000-141) coming into the cab of the tractor.
Note: This can be done behind the covers behind the seat in most tractors. Make sure
the green and gray connectors can be removed from behind the covers to insert them
in the SC1™ in a later step.
11. Connect the male 12-pin connector from the SC1™ harness (P/N 115-8000-475) to the
12-pin connector on the field computer harness (P/N 115-8000-064/327).
Note: Make sure when this cable can reach the area where the terminal is going to be
installed.
