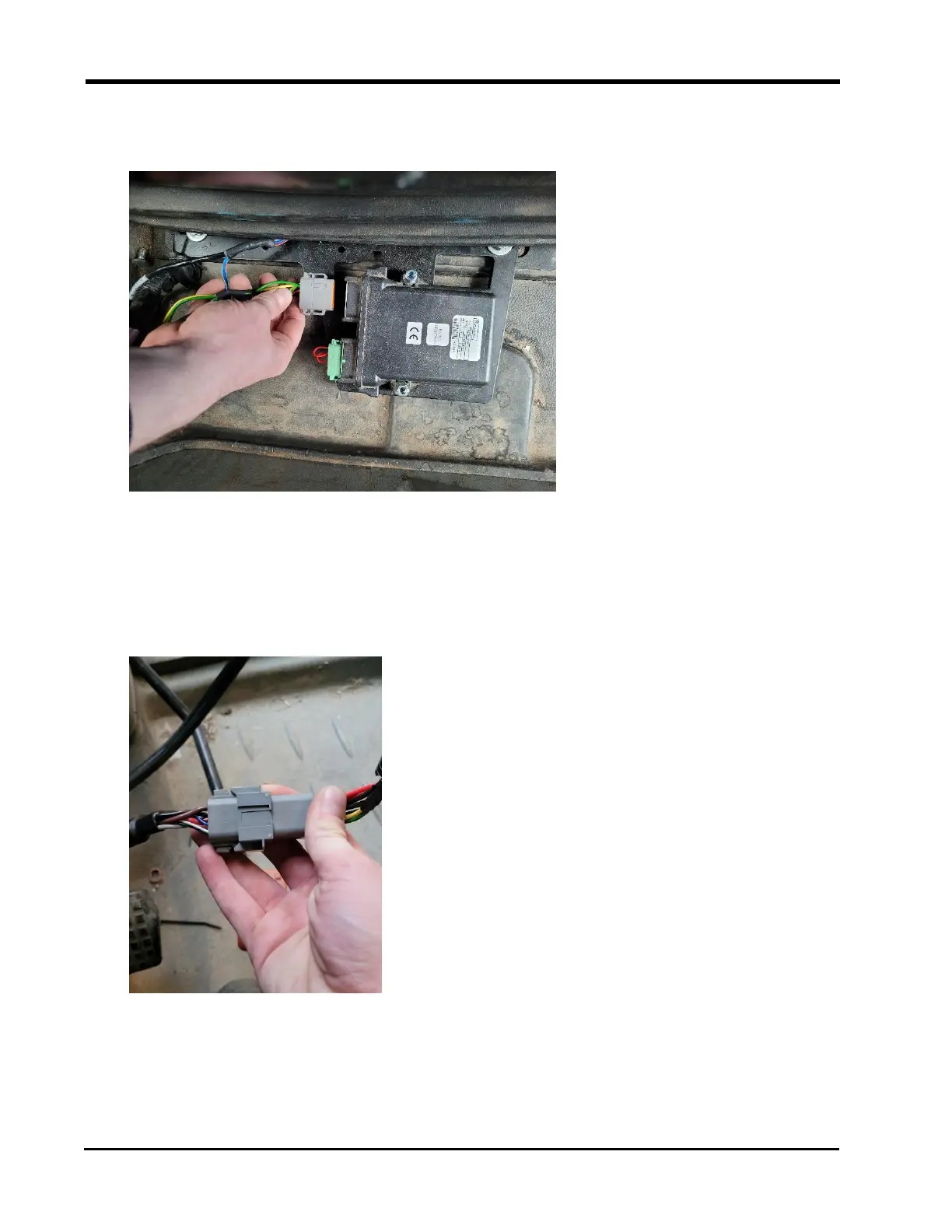

13. Connect the green and the gray 12-pin connectors from the in-cab SC1™ harness cable
(P/N 115-8000-475) to the SC1™ unit.
14. Route the DirecSteer motor cable (P/N 115-4001-257) from the DirecSteer assembly
down through the housing of the steering column and to the pedals.
15. Route the 8-pin connector of the DirecSteer motor cable (P/N 115-4001-257) under
the floor mat to the mating connector labeled "DD Steer Motor Cable" on the
DirecSteer main cable (P/N 115-8000-474) located in the side console.
