CONSOLE PROGRAMMING

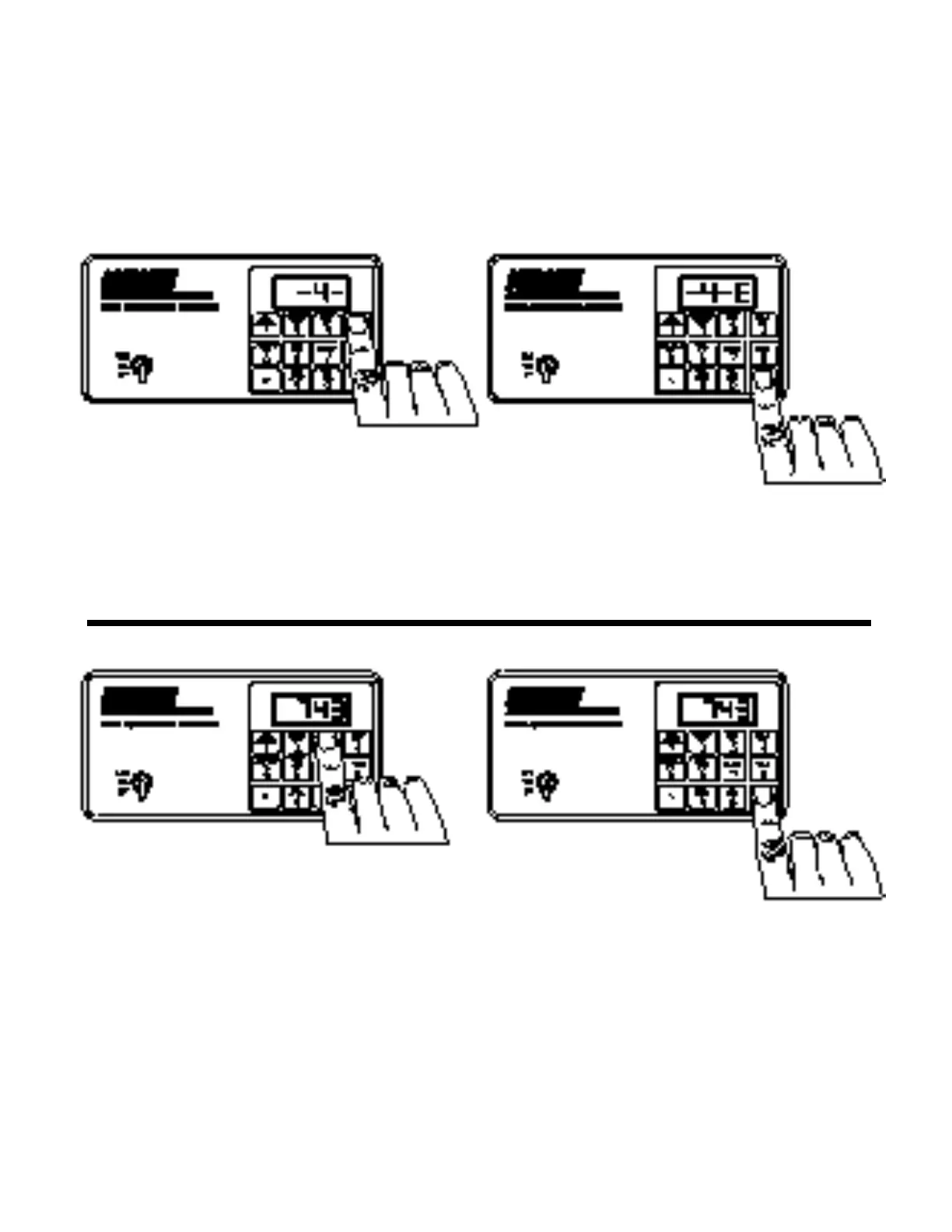

When entering data into the Console, the entry sequence is always the same.
(NOTE: DATA MUST BE ENTERED INTO THE FIRST SIX KEYS).
Depress the key in which
you wish to enter data.
Depress the ENTER key. An
"E" will illuminate in the
DATA display.
Depress the keys correspond-
ing to the number you wish to
enter (i.e. "7","4","3").
The numbers will be dis-
played as they are entered.
Complete the entry by again
depressing the ENTER key.
