APPENDIX 7
SIX MAGNET WHEEL DRIVE SPEED SENSOR

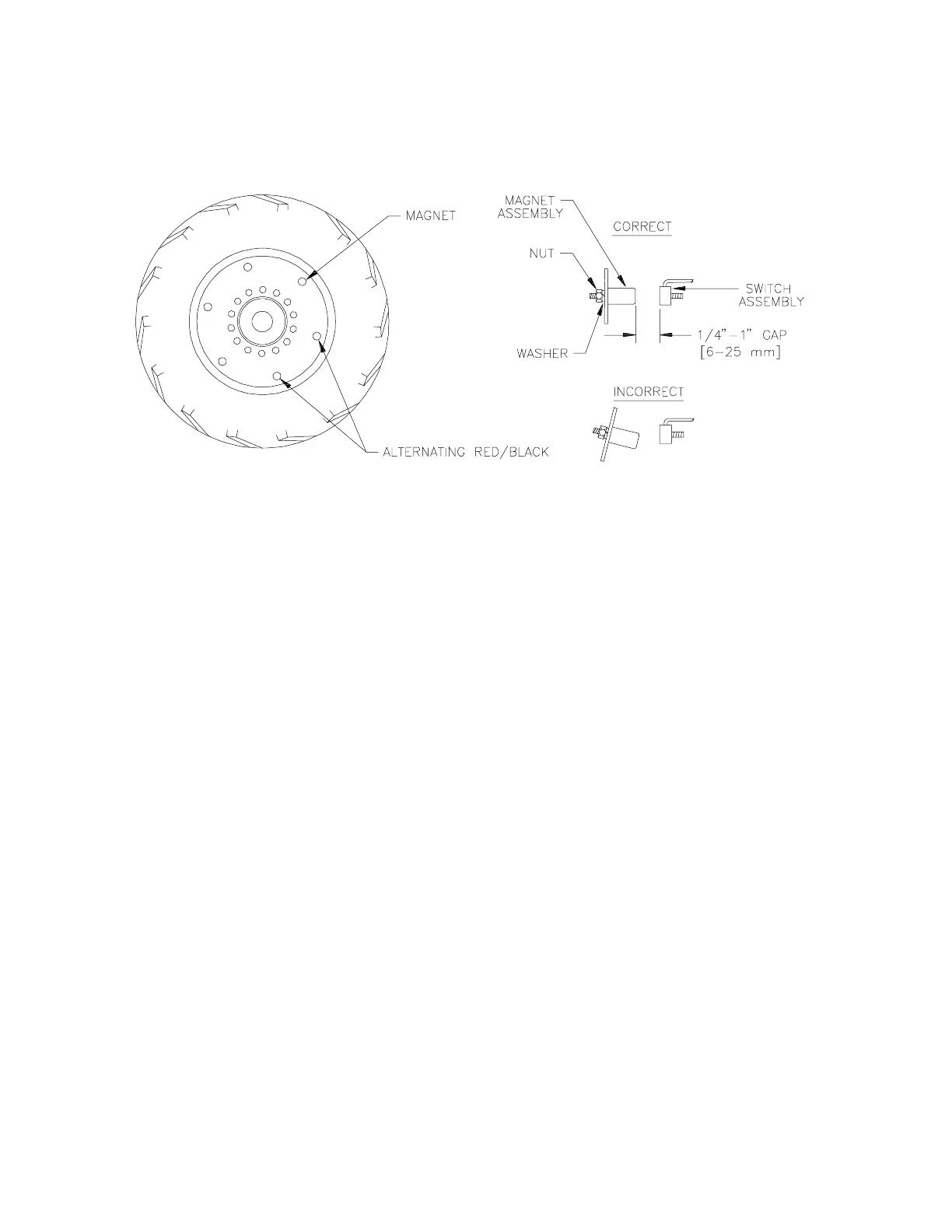

Position the six magnets symetrically on the rim of the tire, alternating the
magnets in red-black order.
To find the new SPEED CAL number, take number found in CALCULATING "SPEED CAL"
on page 8 and divide by 3. This is the new SPEED CAL number.
