2. MOUNTING THE FLOW METER

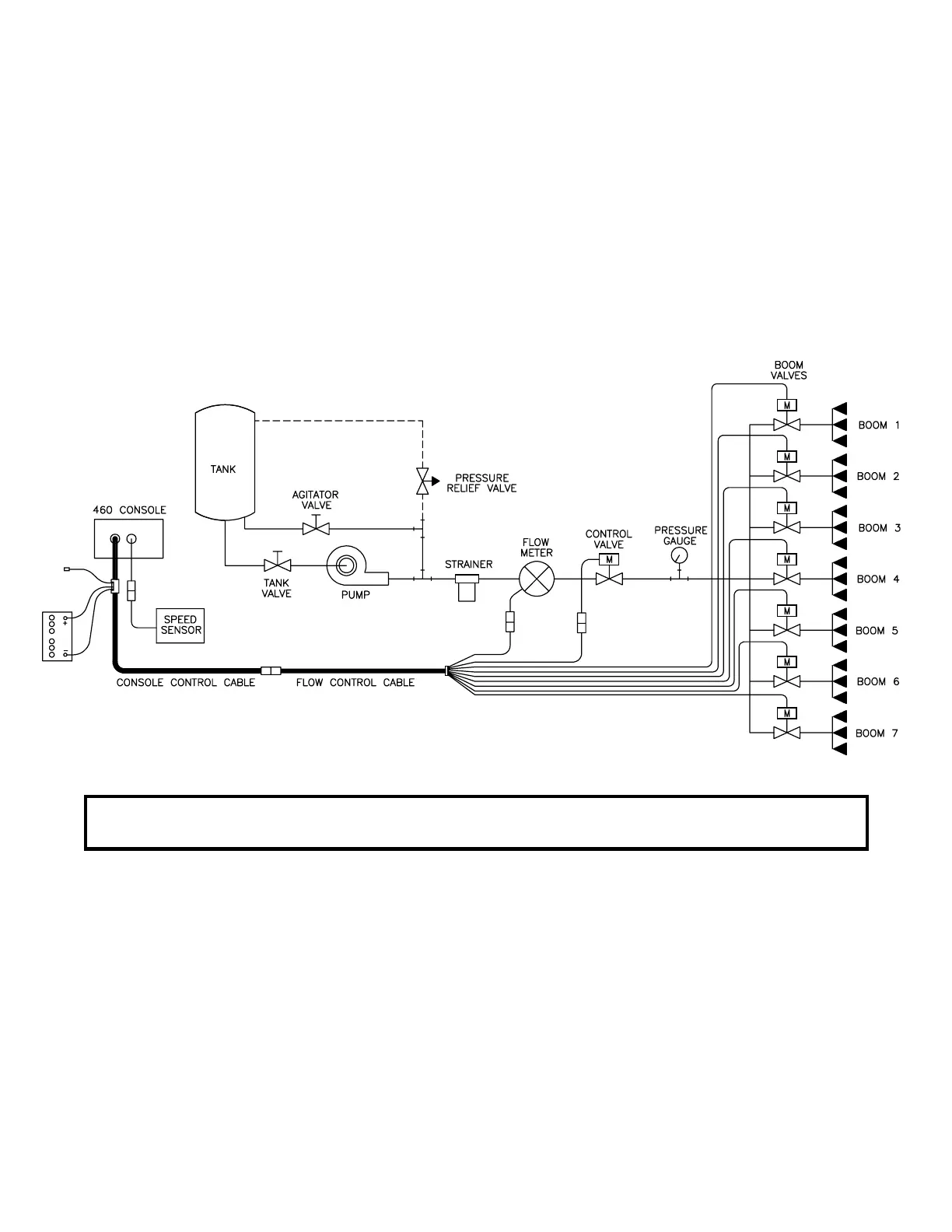

1) Mount Flow Meter in the area of the boom valves per Figure 4. All flow through
Flow Meter must go to booms only, i.e., no return line to tank or pump after Flow
Meter.
2) Mount Flow Meter horizontal to the ground. Use the bracket to secure the Flow
Meter.
3) For best results, allow a minimum of 7 1/2 inches [20 cm] of straight hose on inlet
of Flow Meter. Bend radius of hose on outlet of Flow Meter should be gradual.
4) Flow must be in direction of arrow on Flow Meter.
FIGURE 4FIGURE 4
FIGURE 4FIGURE 4
FIGURE 4
3. MOUNTING THE CONTROL VALVE
1) Mount the motorized Control Valve in the main hose line between the Flow Meter
and the booms, with motor in the upright position. (For flow less than 3 GPM
[11 lit/min] the motorized Control Valve is mounted in a by-pass line. Refer to
Appendix 3 for alternate plumbing diagram).
2) Connect the Flow Control Cable connectors to boom valves, Flow Meter, and motorized
Control Valve. (Black wire to boom valve #1, Brown to boom valve #2, Blue to boom
valve #3, Blk/wht to boom valve #4, Brn/wht to boom valve #5, Blu/wht to boom valve
#6, Wht/blk to boom valve #7).
NOTE: It is essential, when using suspensions, that the system be thoroughly
rinsed out each day after use.
