3. MOUNTING THE CONSOLE AND CABLING
1) Mount the Console to a secure support inside the cab of the vehicle.
2) Connect the Adapter Cable to the plug in the back of the Console. (Reference Figure 2). Route the
Adapter Cable to A-Post and terminate. (Flow Meter extension cables are available from your
Dealer).
3) Initial installation of the system is now complete.
FIGURE 2

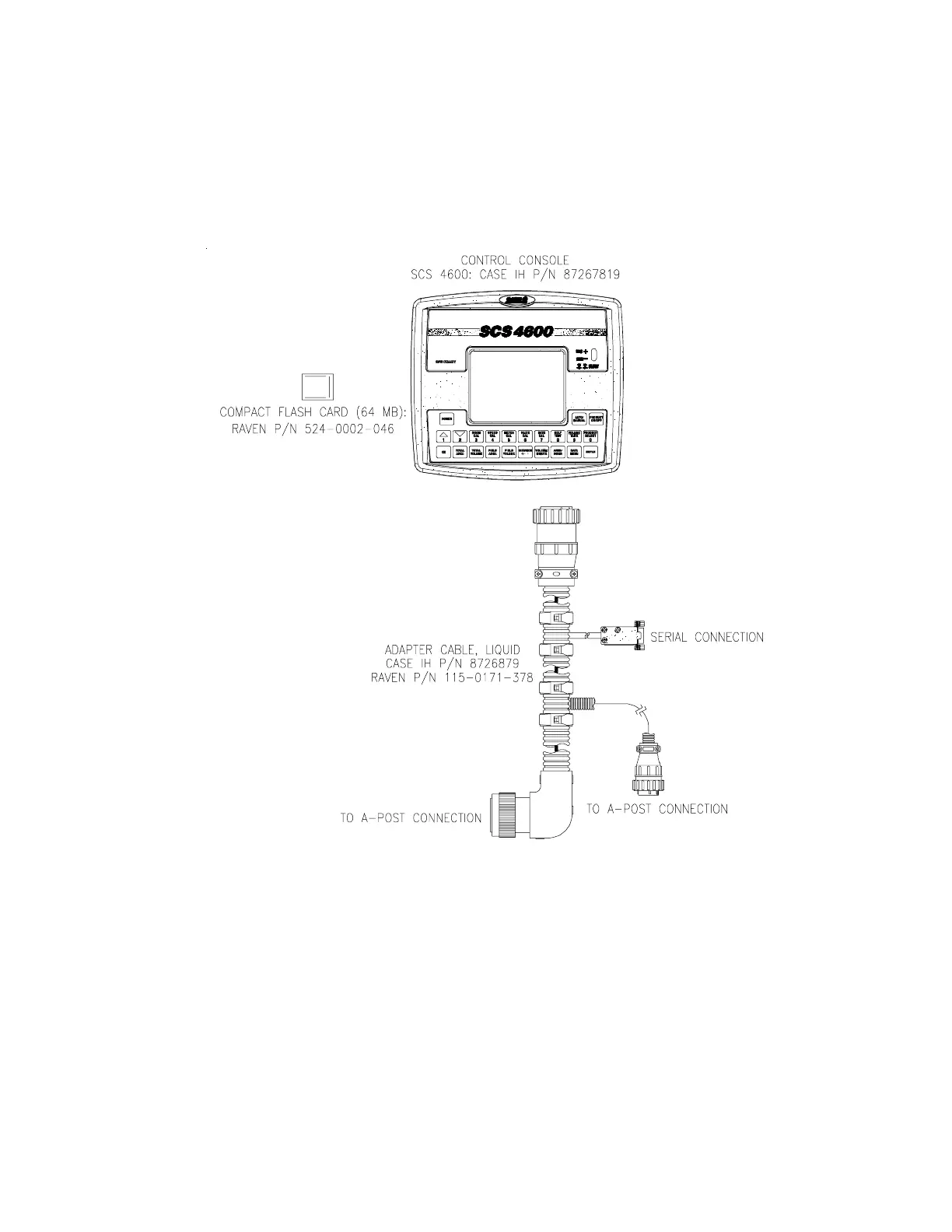

SCS 4600 LIQUID CABLING
