2. MOUNTING THE HYDRAULIC CONTROL VALVE

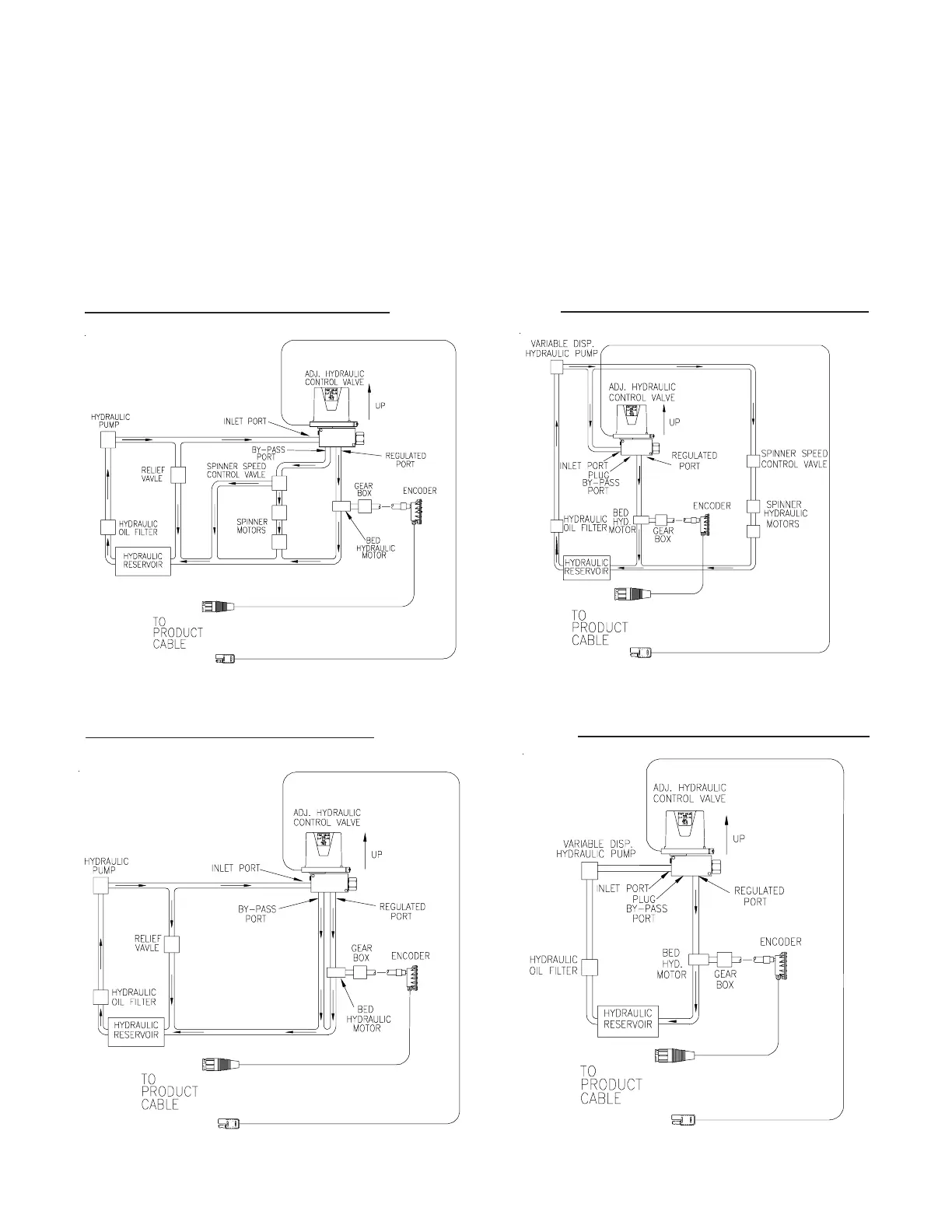

1) Refer to Figures 9-12 for typical placement of the Hydraulic Control Valve.
2) Valve is to be mounted with motor in the upright position.
3) Connect the product cable connectors to hydraulic control valve and encoder(s). If applicable, also
connect fan sensor, bin level sensor, clutches, and boom vlves.
PNEUMATIC SYSTEM
SPINNER SYSTEM
CLOSED HYDRAULIC SYSTEM (VARIABLE DISP. PUMP)
FIGURE 12
FIGURE 11
FIGURE 10
FIGURE 9
OPEN HYDRAULIC SYSTEM (FIXED DISP. PUMP)
CLOSED HYDRAULIC SYSTEM (VARIABLE DISP. PUMP)
OPEN HYDRAULIC SYSTEM (FIXED DISP. PUMP)
