58
APPENDIX 8
F
AN RPM SENSOR INST
ALLA
TION
RAVEN P/N 117-0159-575

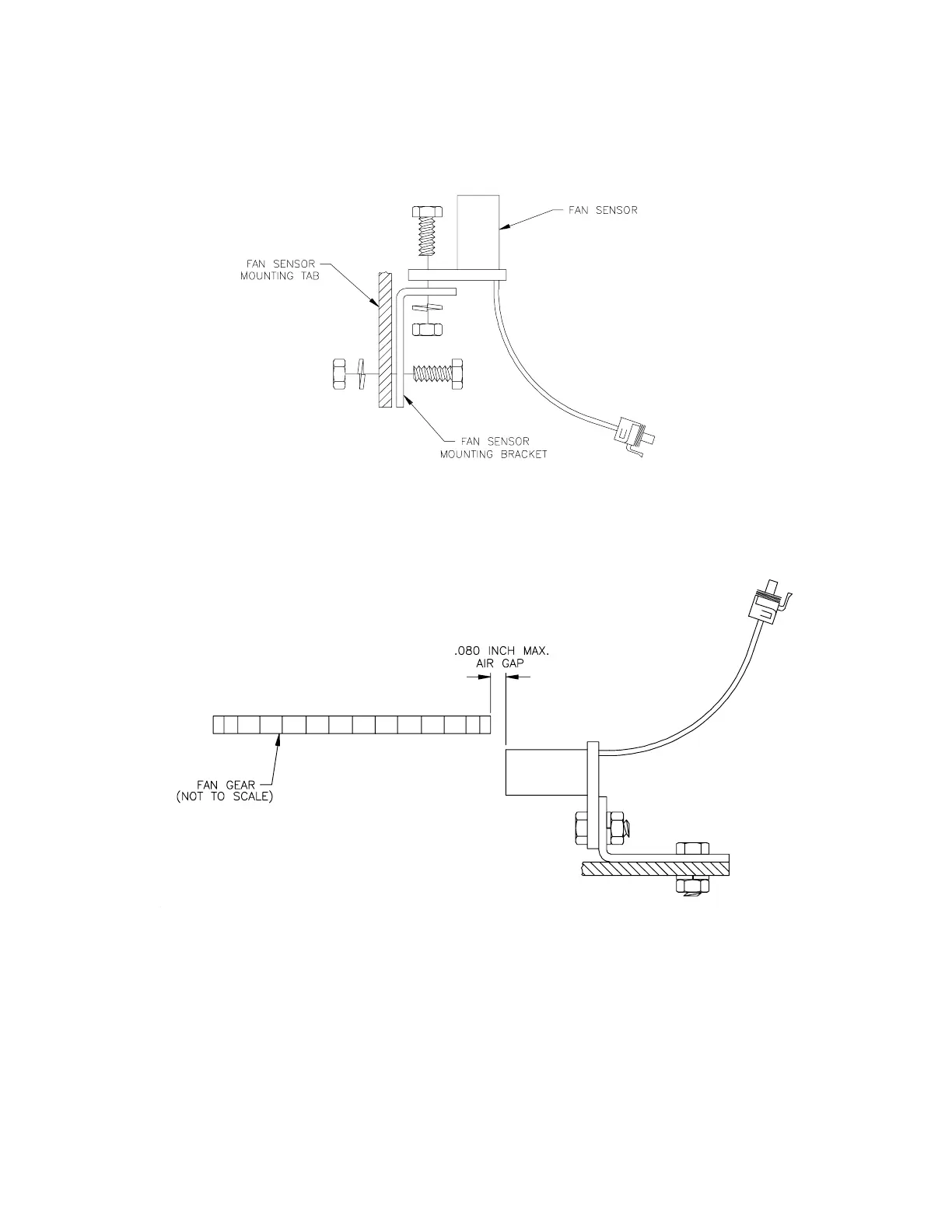

Assemble Fan Sensor to fan sensor bracket with stainless steel bolt, lock washer, and nut. Assemble fan
sensor bracket to fan sensor mounting tab on box with stainless steel bolt, lock washer, and nut. (See Figure
above).
Adjust fan sensor air gap between .040 and .080 inch (.080 inch max.)
62
64
Table of Contents
Default Chapter
6
Table of Contents
6
Symbol Definition
8
Introduction
9
Section 1 - Liquid and Granular Applications
11
Installation
12
MOUNTING the FLOW METER and OPTIONAL PRESSURE TRANSDUCER (Liq. Apps)
12
MOUNTING the CONTROL VALVE (Liquid Applications)
13
Mounting the Console and Cabling
14
Battery Connections
15
Console Features
16
Console Calibration
17
CALCULATING "BOOM CAL" (Liquid Applications)
17
Calculating "Speed Cal
18
CALCULATING "METER CAL" (Liquid Applications)
18
Calculating "Valve Cal
19
CALCULATING "RATE CAL" (Liquid Applications)
20
Console Programming
21
Initial Console Programming
21
Other Display Features
24
Self Test Feature
25
Decimal Shift
25
Data Menu
27
Alarms Definition
31
Datalogger
32
Scs 4600 with Guidance System Drawing
34
Initial System Set-Up
35
Initial System Field Test
36
Preventive Maintenance
36
Section 2 - Granular Applications
37
Scs 4600 System Drawing
38
Installation
39
Mounting the Encoder
39
Mounting the Hydraulic Control Valve
40
Console Calibration
41
Calculating "Boom Cal
41
Calculating "Spreader Constant
41
Calculating "Meter Cal
42
Calculating "Rate Cal
42
Controlling Spinner Rpm
42
Initial System Set-Up
43
Initial System Field Test
43
Section 3 - Controller Area Network (Can)
45
Introduction
46
Procedure to Readdress Can Product Control Nodes
46
System Drawings
47
Troubleshooting Guide
50
Case Ih A-Post Definition
55
Alternate By-Pass Line Plumbing System
56
Procedure to Test Speed Sensor Extension Cables
58
Procedure to Test Flow Meter Cables
59
Flow Meter Maintenance and Adjustment Procedure
60
Procedure to Re-Calibrate Flow Meter
61
Verification of Spreader Constant
62
Fan Rpm Sensor Installation
63
Bin Level Sensor Installation
64
Serial Interface
65
Case Ih Scs 4600 Communication Strings
66
Databoy Viewer Installation
68
