of day clock will reset to 0:00. The delay time is initially set at 10 days; but can be changed
by the user.
b) PROD 1 display will show "dAtE". PROD 2 display will show "P dn". The DATA display will
show "10".
c) To change the delay time enter a new number from 0 to 200 days.

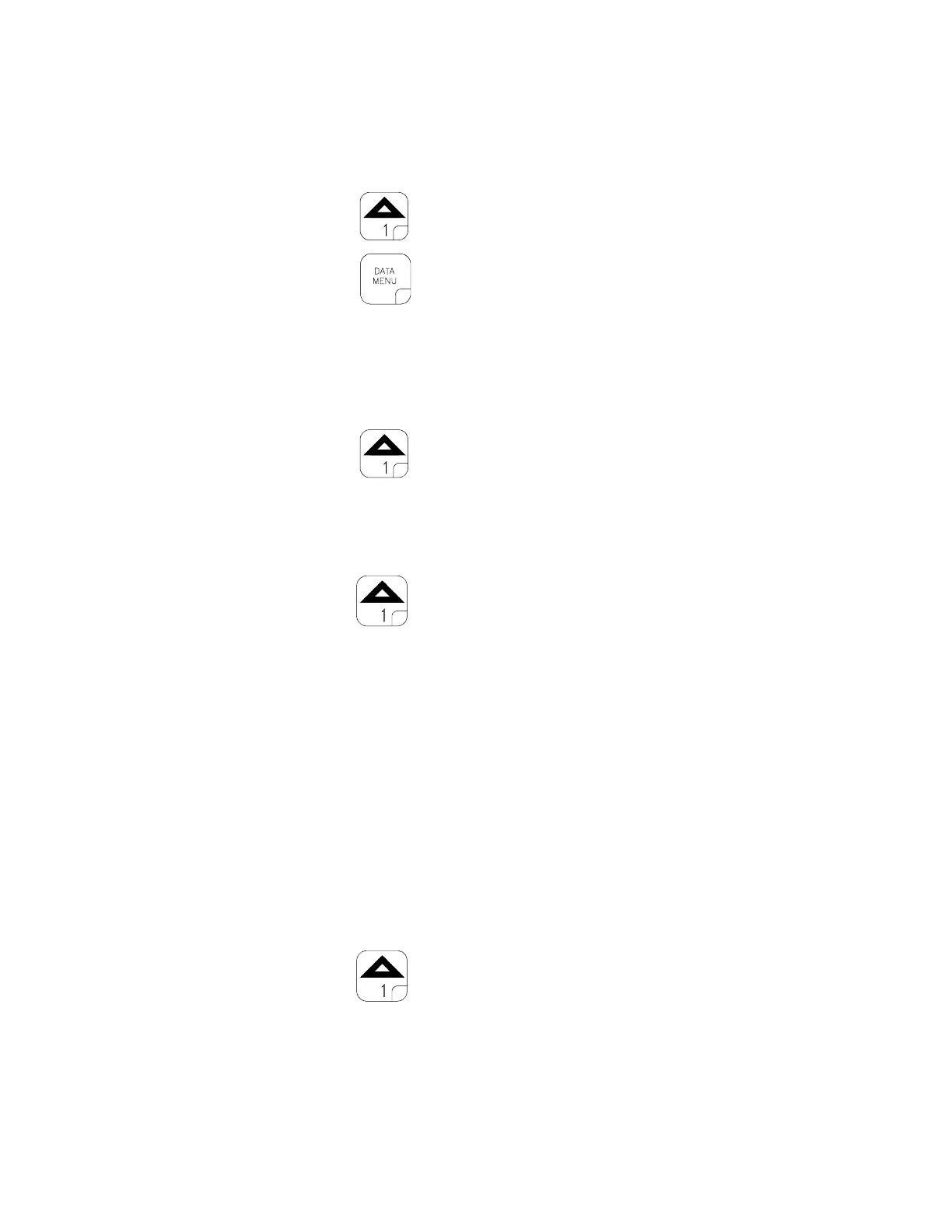

d) Momentarily depress
to advance to TIME.
e) Momentarily depress
to advance to the FLOW RATE category.
FLOW RATE SCREENS
16) VOLUME/MINUTE PRODUCT 1
a) PROD 1 display will show "Fr". PROD 2 display will show "FLo1". The DATA display will
show the volume per minute of Product 1.
b) Momentarily depress
to advance to VOLUME/MINUTE PRODUCT 2.
17) VOLUME/MINUTE PRODUCT 2
a) PROD 1 display will show "Fr". PROD 2 display will show "FLo2". The DATA display will
show the volume per minute of Product 2.
b) Momentarily depress
to advance to VOLUME/MINUTE RATE FAULT PRODUCT 1.
18) VOLUME/MINUTE RATE FAULT PRODUCT 1
a) If the actual volume per minute falls below the set limit, the injection pump stops slowing
down, or the control valve stops closing, an alarm sounds and the PROD 1 display flashes
"-LL-".
The low limit value should be determined with all booms ON. This value is automatically
proportioned to the percentage of booms that are ON.
EXAMPLE:The entered low limit is 4. If half the total boom length is turned
OFF, the Console will automatically reduce the entered low limit to 2.
b) PROD 1 display will show "Fr". PROD 2 display will show "LL 1". The DATA display will show
"0".
c) Enter the set limit.
d) Momentarily depress
to advance to VOLUME/MINUTE RATE FAULT PRODUCT 2.
19) VOLUME/MINUTE RATE FAULT PRODUCT 2
a) If the actual volume per minute falls below the set limit, the injection pump stops slowing
down, or the control valve stops closing, an alarm sounds and the PROD 2 display flashes
"-LL-".
