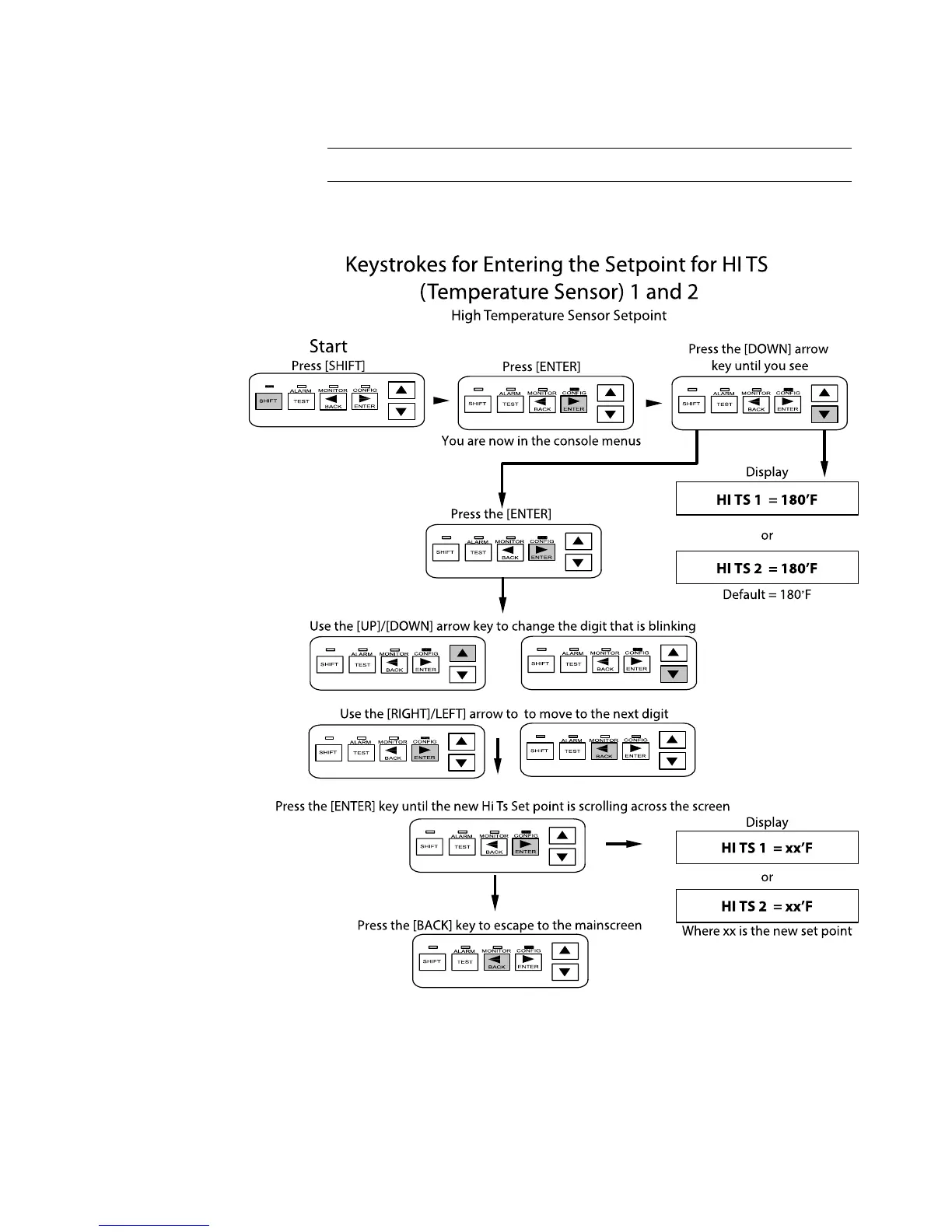

Raychem C910-485 - 4.2 Console Mode Menus: High Temp Alarm Setting; 4.2 Console Mode Menus: Hi TS Setpoint Keystrokes

nVent.com | 28
4.2.10 High Temperature Alarm: Setting (Hi TS 1 and Hi TS 2)
Purpose
This allows the user to set the high temperature alarm Setting for
temperature sensor number 1 and 2.
Alarm time delay filter is factory set at 15 minutes.
Setting/Range
0°F to 200°F (–18° to 93°C)
Factory Default
180°F (82°C)
