Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide
RFL-C2000S-HP /RFL-C3000S-HP /RFL-C4000S-HP/RFL-C6000S-HP
11
3 Installation
3.1 Dimensions

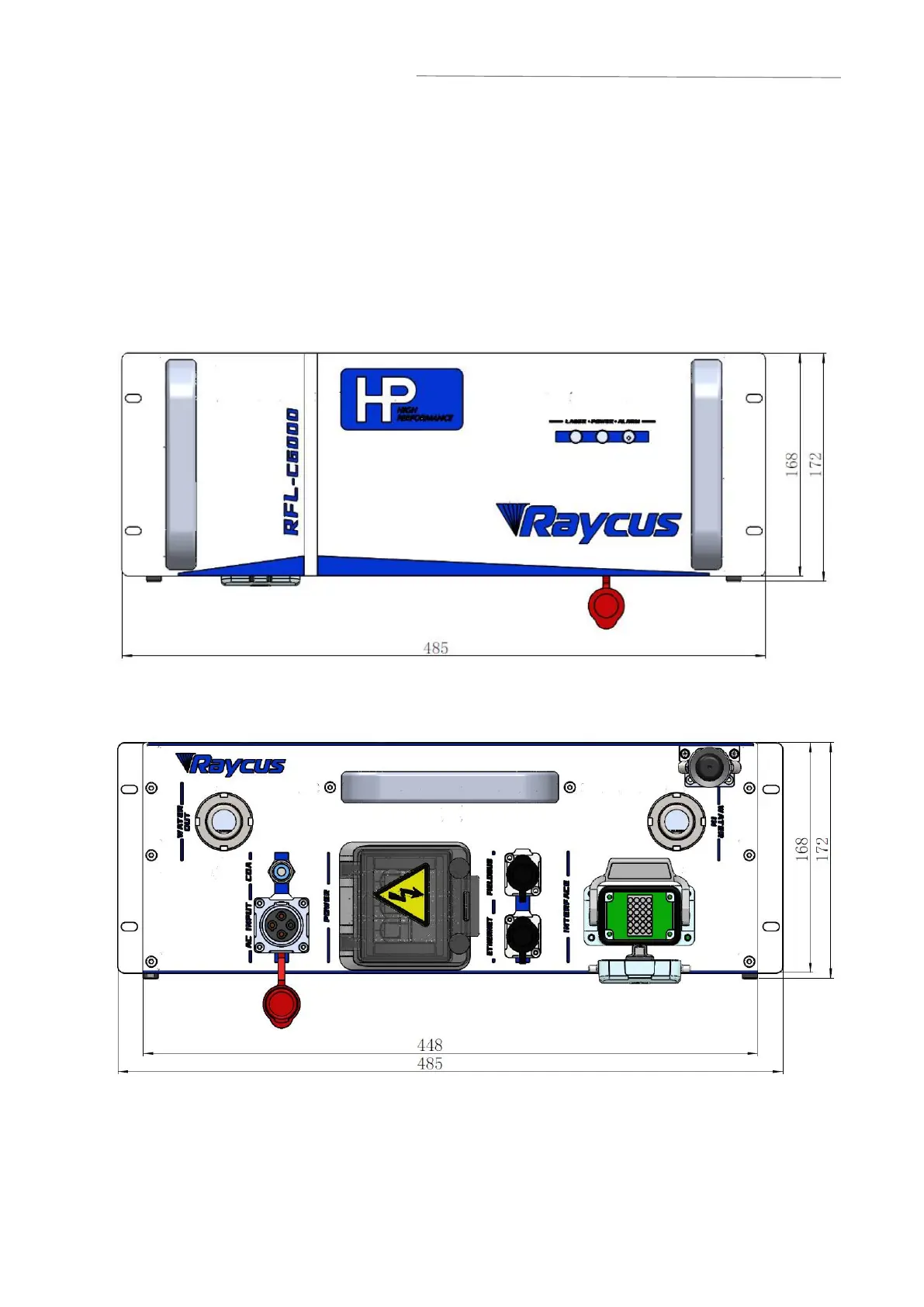

Figure 2 shows the external dimensions of the RFL-C2000S-HP/RFL-C3000S-HP/
RFL-C4000S-HP/ RFL-C6000S-HP.(take C4000S as an example)
Figure 2 (a) Front view (Unit: mm)
Figure 2 (b) Rear view (unit: mm)
