Raycus RFL-C2000S-HP User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide
RFL-C2000S-HP /RFL-C3000S-HP /RFL-C4000S-HP/RFL-C6000S-HP
42

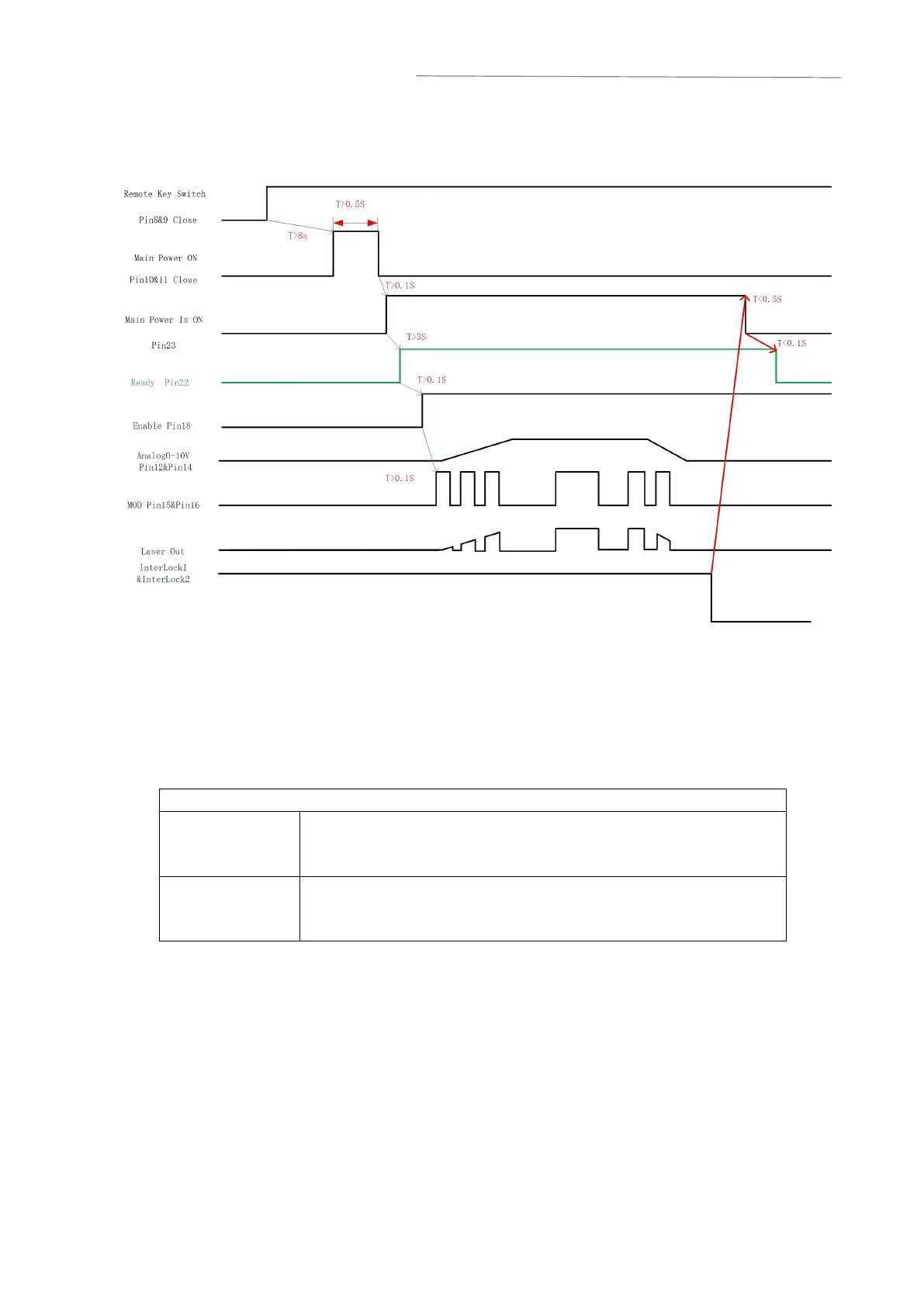

4.8.2 Control Sequence Diagram
Figure 19 Control Timing Diagram
4.9 Red guide beam control
Table 17 Red guide beam external control mode
Red guide beam external control
ON
17 pin of INTERFACE:
Positive edge - turn on the red guide beam;
Negative edge - turn off the red guide beam.
OFF
Host software:
Red guide beam ON - turn on the red guide beam;
Red guide beam OFF - turn off the red guide beam.
