Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide
RFL-C2000S-HP /RFL-C3000S-HP /RFL-C4000S-HP/RFL-C6000S-HP
12

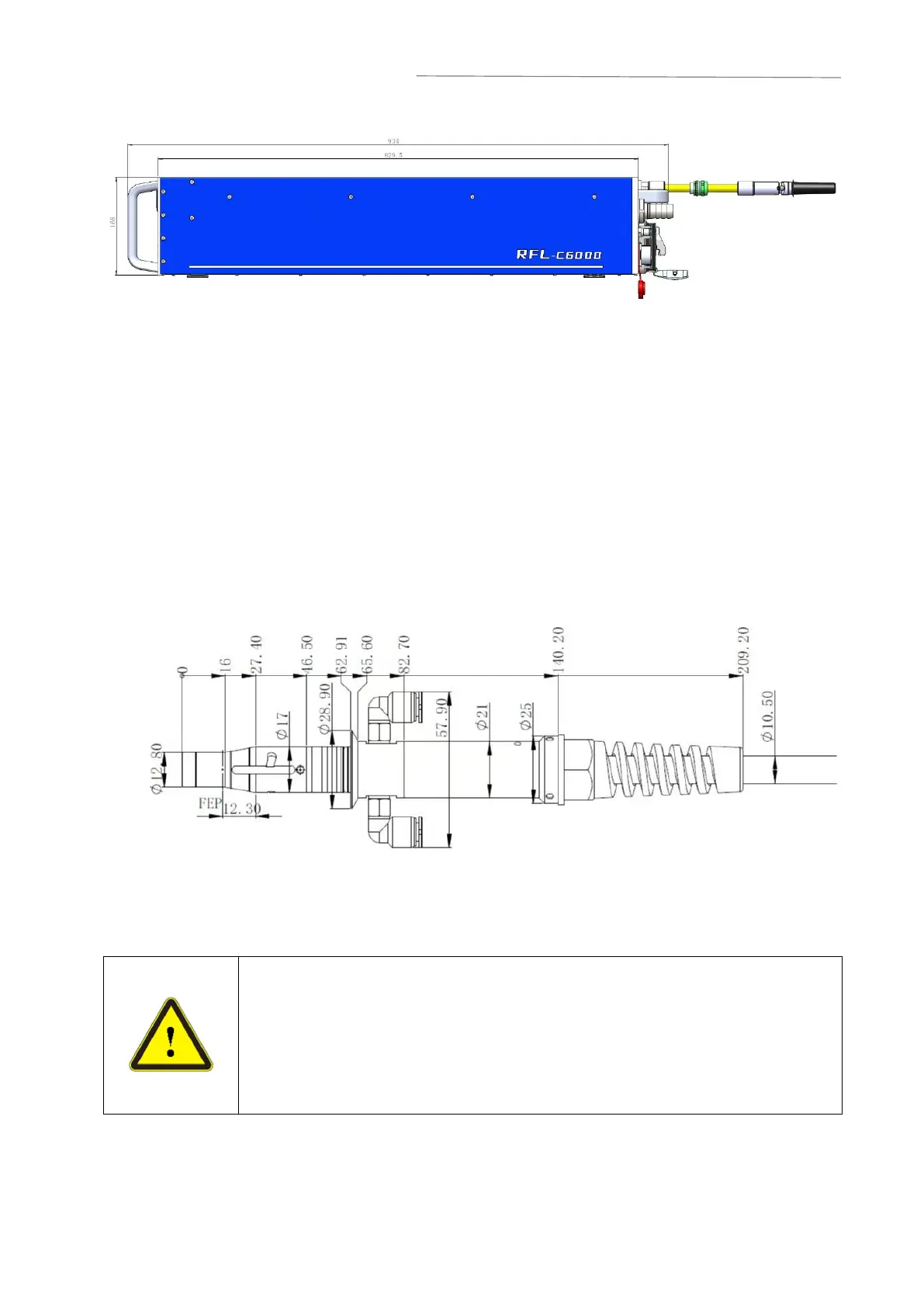

Figure 2 (c) Side view (Unit: mm)
3.2 Size and installation of output optical cable
The standard output cables of Raycus
RFL-C2000S-HP/RFL-C3000S-HP/RFL-C4000S-HP/RFL-C6000S-HP fiber lasers are QBH
output cables.The specific appearance dimensions are shown in Figure 3 below:
Compared with other types of laser output cable, there are differences in the size of the
protective end cap. The protective end cap of this type is
lengthened.
Figure 3 Dimensional drawing of QBH output optical cable (unit: mm)
Before installing the output cable in the processing head, the lens of the
output cable must be inspected. If the lens is dirty, it must be cleaned.
It is forbidden to disassemble the output lens by anyone other than Raycus,
otherwise the warranty will be invalid.
Before the laser is used, it is necessary to ensure that the two copper rings of
the output cable are fitted with the cutting head to form a short connection state.
3.3 Cooling system installation and requirements
Table 5 Cooling system requirements
