Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide
RFL-C2000S-HP /RFL-C3000S-HP /RFL-C4000S-HP/RFL-C6000S-HP
41
ON
The Positive edge of pins 15 and 16 of INTERFACE 24 pins
OFF
The laser emission button or communication command of the
Raycus software
“
EMON/EMOFF
”

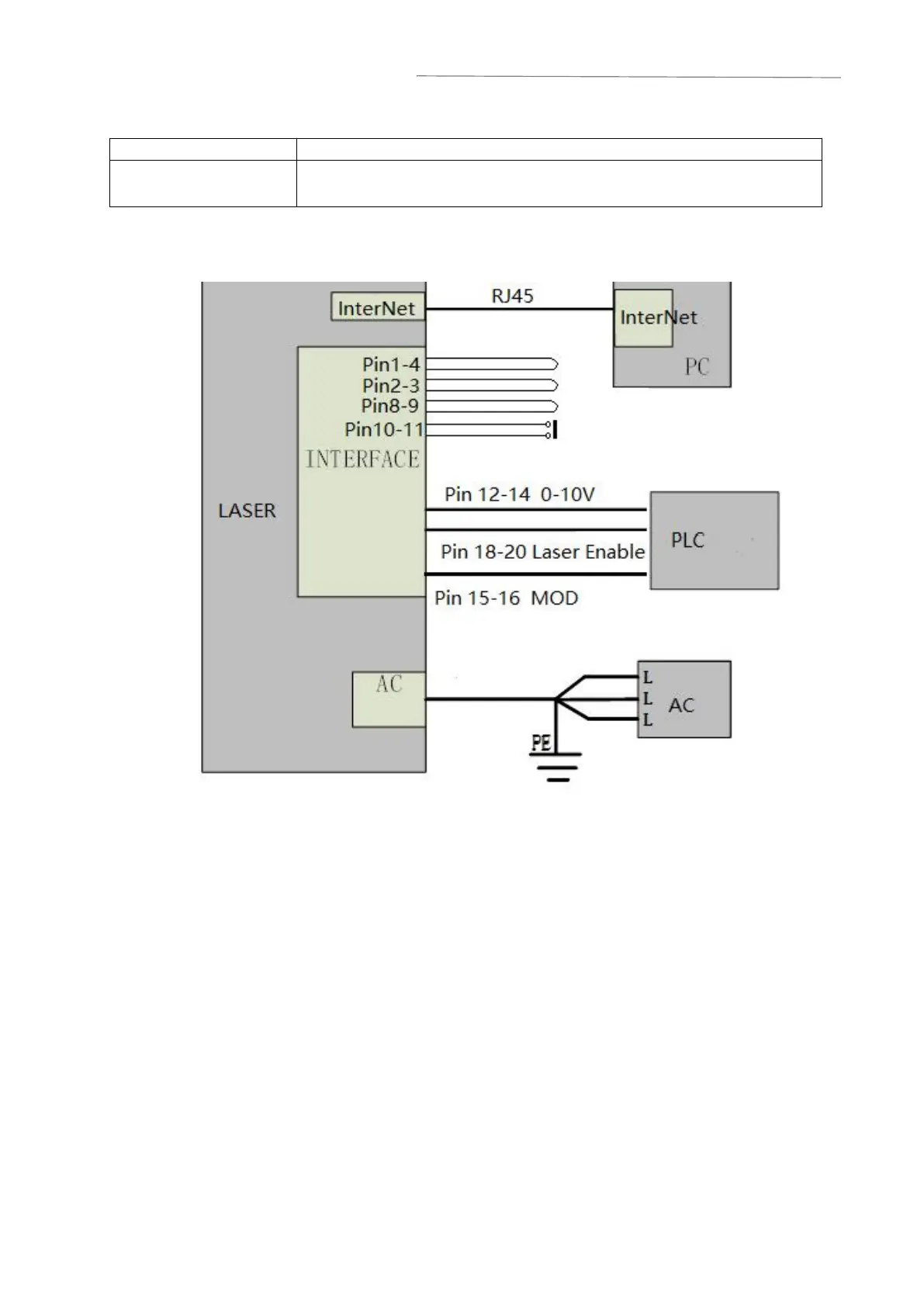

4.8.1 Full external control mode control mode wiring diagram (external
analog/external enable/external emit laser)
Figure 18 External control wiring diagram
