Table 18 Programming mode enable method
Programming mode
The laser emission is determined by the edited waveform
Voltage of pins 15 and 16 of INTERFACE 24 pin:
Rising edge - start the program to start executing
Falling edge - terminate the program running
Closed: the current program
number is 0
Do not execute programming
When the current program number of the laser is not 0, the laser is running in programming
mode. Please use the Raycus software provided by Raycus to edit the waveform, and select the
pre-running program number. The output waveform of the laser is determined by the edited
waveform. When all the laser emission conditions are satisfied, the relationship between the laser
emission and the programming waveform in the programming mode is as follows:

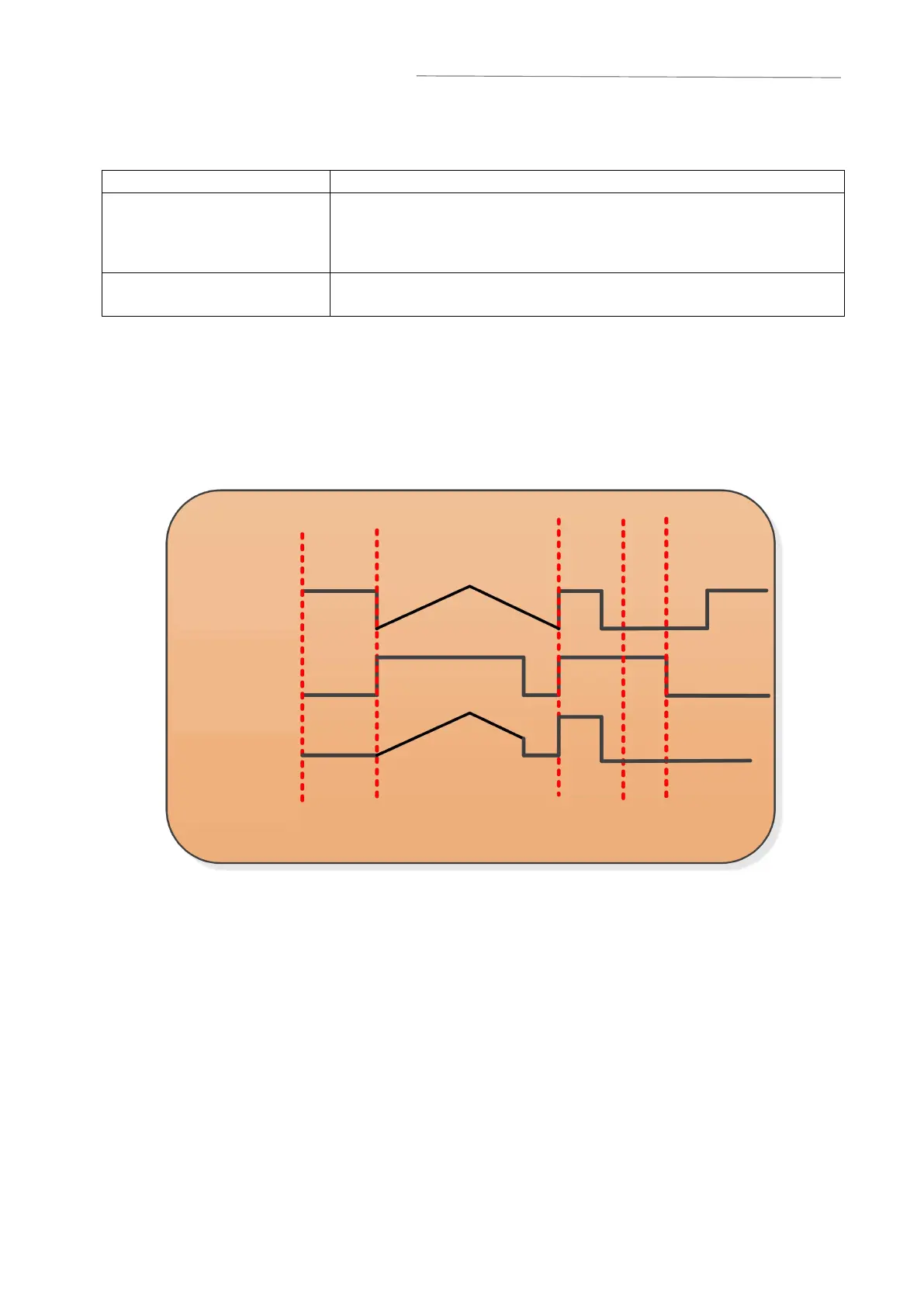

Figure 21 The relationship between laser emission and programming waveform in
programming mode
4.11.2 Programming setting menu (waveform editing)
Check "Display Programming Mode" in the "Mode Selection" of the Raycus software.
Programming
Waveform
Laser Beam
Waveform
Editing Switch
ON OFF/15
16-pin
