Raycus RFL-C4000S User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL- RFL-C4000S
13
3.2 Output Head and Installation

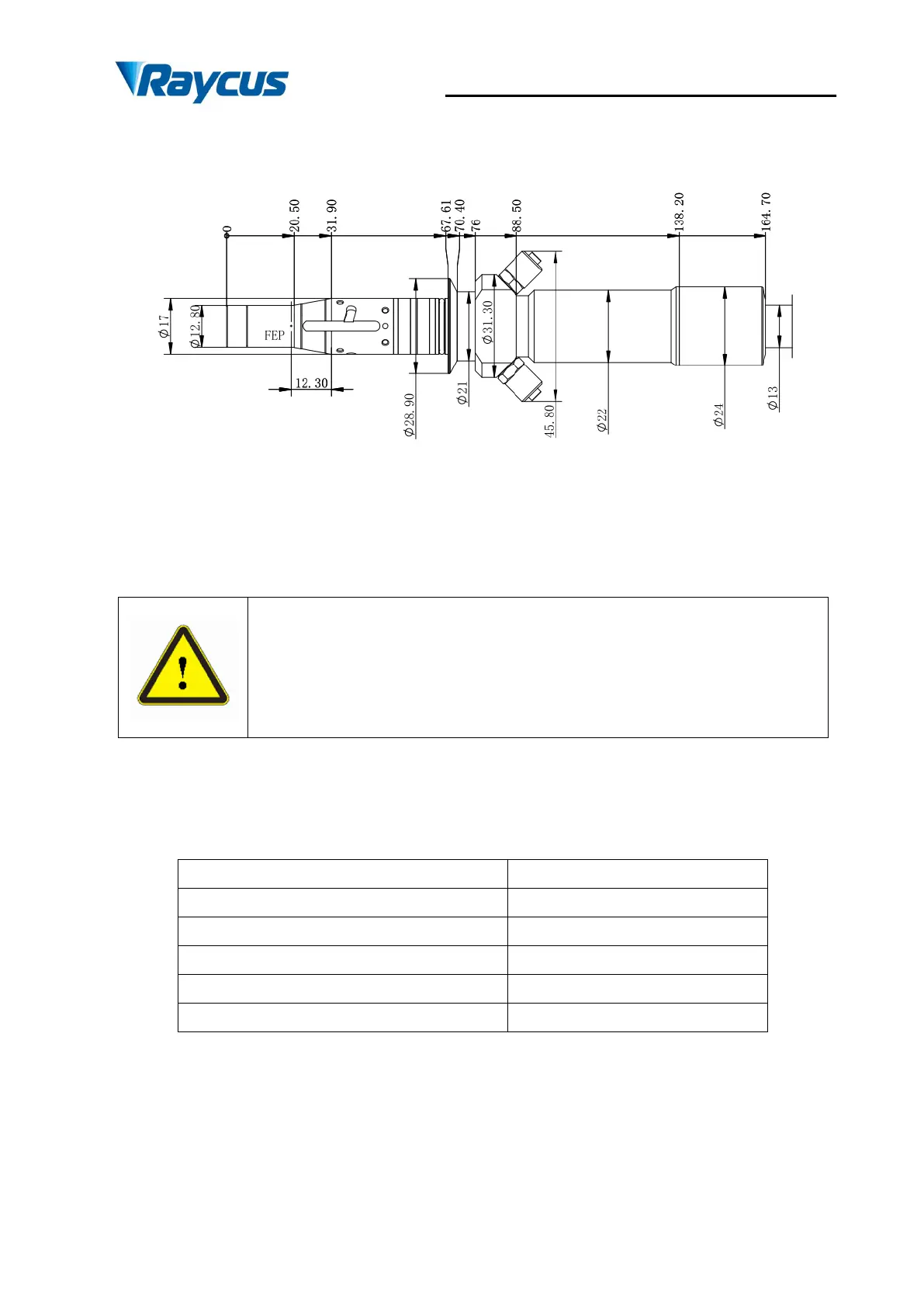

Figure 3 Dimensions of iQB Output Head
The QBH and iQB laser output head of RFL-C4000S are all the standard QBH interface. The
specific appearance and dimensions are shown in Figure 3 above.
CAUTIONS:
◆ Inspect the output lens before installing the output head to the
processing head. Clean the output lens if necessary.
◆ It is strictly prohibited to disassemble the output head by personnel not
approved by Raycus, or the warranty is void.
3.3 Cooling Requirements
Table 6 Cooling Requirements
Model
RFL-C4000S
Cooling Capability(W)
>10000
Minimum Flow(L/min)
40
Maximum Pressure(Bar)
7
Pipe Inner Diameter(mm)
25
Water temperature of coolingsystem (℃)
22±1℃
(1) The water temperature setting of cooling system:
22±1℃（RFL-C4000S）
(2) Cooling system filter access requirements:
