Control mode: The control mode adds the function of operational control interface on the basis
of monitor mode. You need a password to enter the control mode. The initial password is 81338818
(the password can be changed).
Debug mode: On the basis of diagnostic mode, the parameter setting interface is added. Only
Raycus debug engineers can enter the encryption mode.
Diagnostic mode: When a fault occurs in the laser and the user needs to diagnose the fault
remotely or learn more about the status of the laser, the user can enter the diagnostic mode.The
diagnostic mode adds the status and alarm information of the master module, slave module, ACDC
module and DCDC module on the basis of the observation mode. You need a password to enter
the diagnostic mode. The initial password is 81338818 (password can be changed).

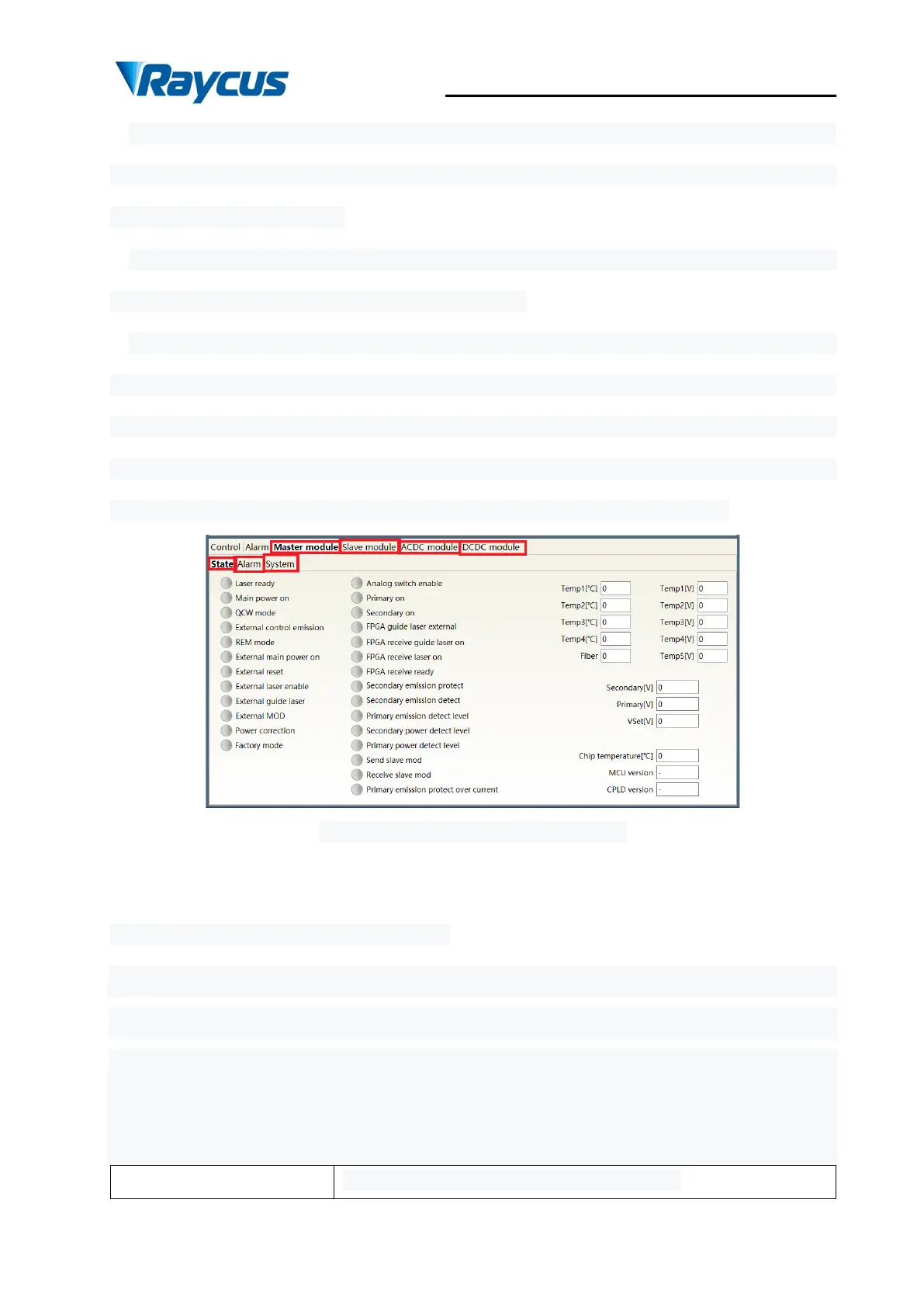

Figure 13 The Diagnostic Mode interface
4.8 The Programming Mode (Waveform Editing)
4.8.1 The Programming Mode enable method
In the Programming Mode, the laser has the functions of waveform editing, storing and
calling.The Programming Mode can be used in the external modulation mode in both ON and
REM modes.
Note: The Programming Mode function is used in REM mode, only the external modulation
mode can be selected, and the internal modulation mode cannot be selected.
Programming Mode
The laser is determined by the edit waveform
