4.1 Front Panel

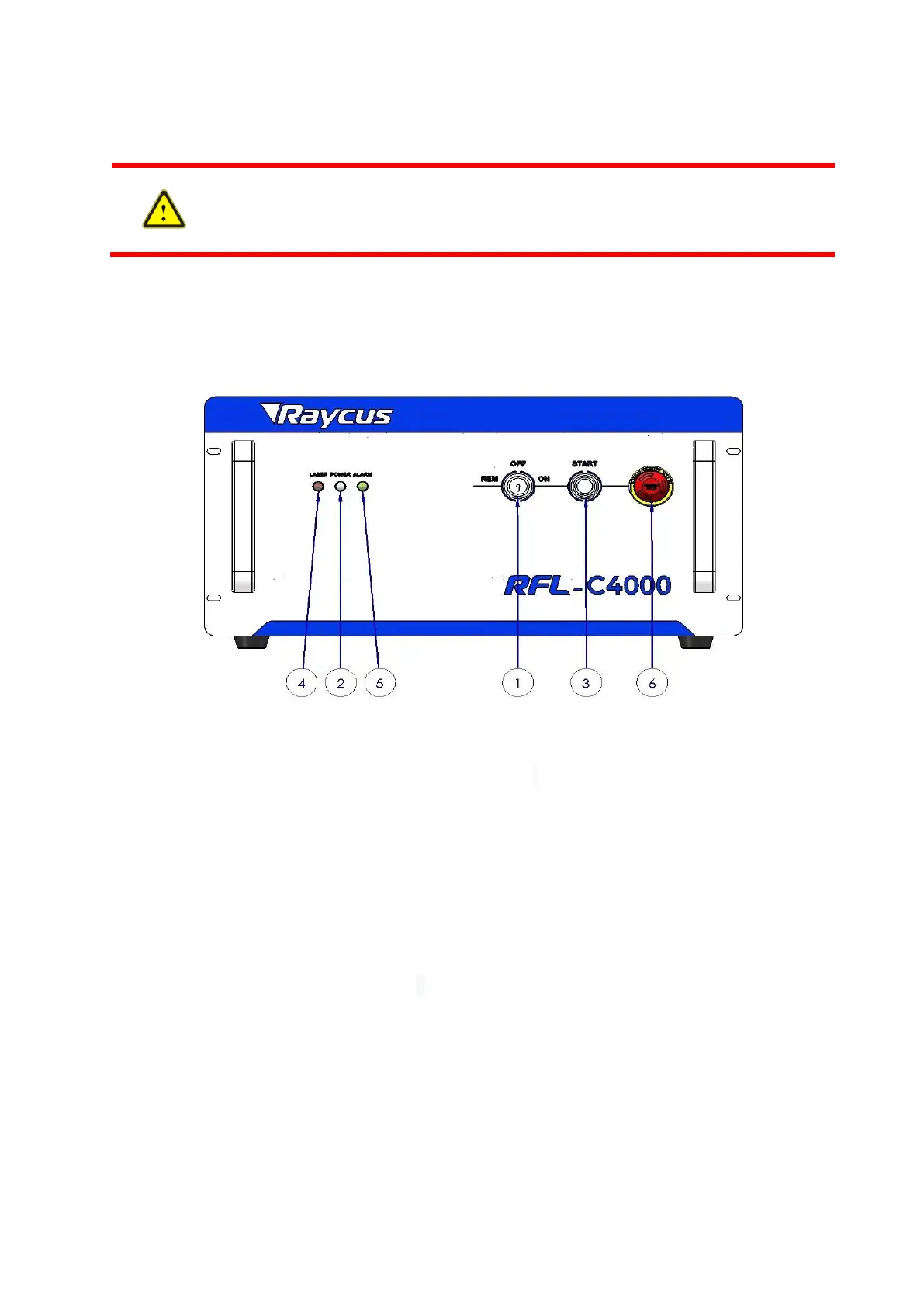

Figure 6 shows the front panel of RFL-C4000S：
Figure 6 Front Panel of RFL-C4000S
(1) REM/OFF/ON: Key switch, the control system power switch of the laser. Insert the key;
either turning the key clockwise to the 'ON' position or counterclockwise to 'REM'
position will power on the laser control system. Then the laser will enter a control mode
depending on your previous setup on the 'CTRL-INTERFACE'. You can refer to 4.9
Control Mode for more details.
(2) POWER: The control system power, LIGHT, indicates that the control system is
switched on.
(3) START: Laser main power button，GREEN，when this button is pressed down，the
laser is ready to emit laser.
(4) LASER: Laser emission indicator, RED, illuminates when laser emission is on.
(5) ALARM: Alarm indicator, YELLOW, indicates an error condition.
