8.3.2 Optics in general
Trotec Laser GmbH recommends to use the cleaning set enclosed. Alternatively, use high-quality cotton
swabs together with the provided cleaning liquid.
Notice
The following cleaning products are available as accessory parts:
– Lens cleaning cloth
– Lens cleaning liquid

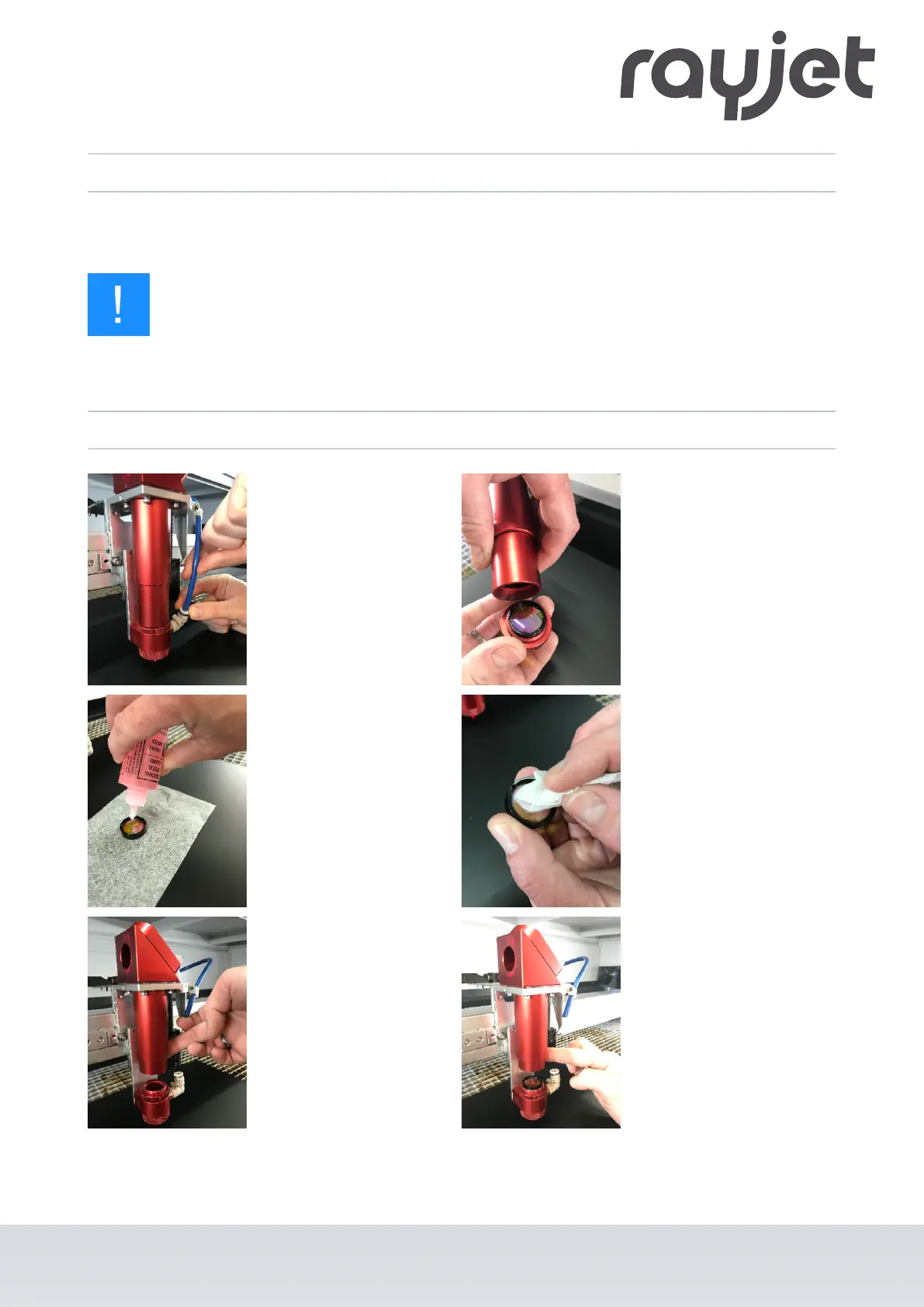

8.3.3 Lens
1. Remove the air assist
hose.
2. Now remove the
lens and check the
surface. Here: 2.0
inch lensRemove
loose particles and
dust with a bellows or
compressed air (ISO
8573:2010 Class 1).
3. Remove the lens and
rinse it with cleaning
fluid. Apply some lens
cleaning fluid to the
lens and let it soak in
for 1 minute.
4. Clean the lens
carefully and without
pressure with the lens
cleaning cloth.
5. Put the tube back on
the laser head.
6. Insert lens.
