Raymarine Axiom 2 Pro 16 RVM - Cable Suppression Ferrites

2.R
ayNettoRayNetcable—ConnectoneendoftheRayNetcabletoyour
display,andtheoppositeendtoaRayNetdeviceorRayNetnetwork
switch.
3.RayNettoRJ45adaptercable—ConnecttheRayNetendofthecable
toyourdisplay,andtheoppositeendtoanetworkdevicewithanRJ45
connector,oranRJ45coupler.
4.ExamplecompatiblenetworkdeviceswithRayNetorRJ45connectors
(e.g.:Radarscanners,Sonarmodules,Displays,Networkswitches,
Camerasetc).
ForalistofavailablenetworkcablesrefertoChapter24Sparesand
accessories
Cablesuppressionferrites
ToensureoptimumEMCperformanceandtocomplywithapplicable
EMCregulationsallRayNetcablesconnectedtothisproductmusthave
asuppressionferritefitted.
Threesuppressionferritesareincludedwithyourdisplay,oneforeach
RayNetconnection.

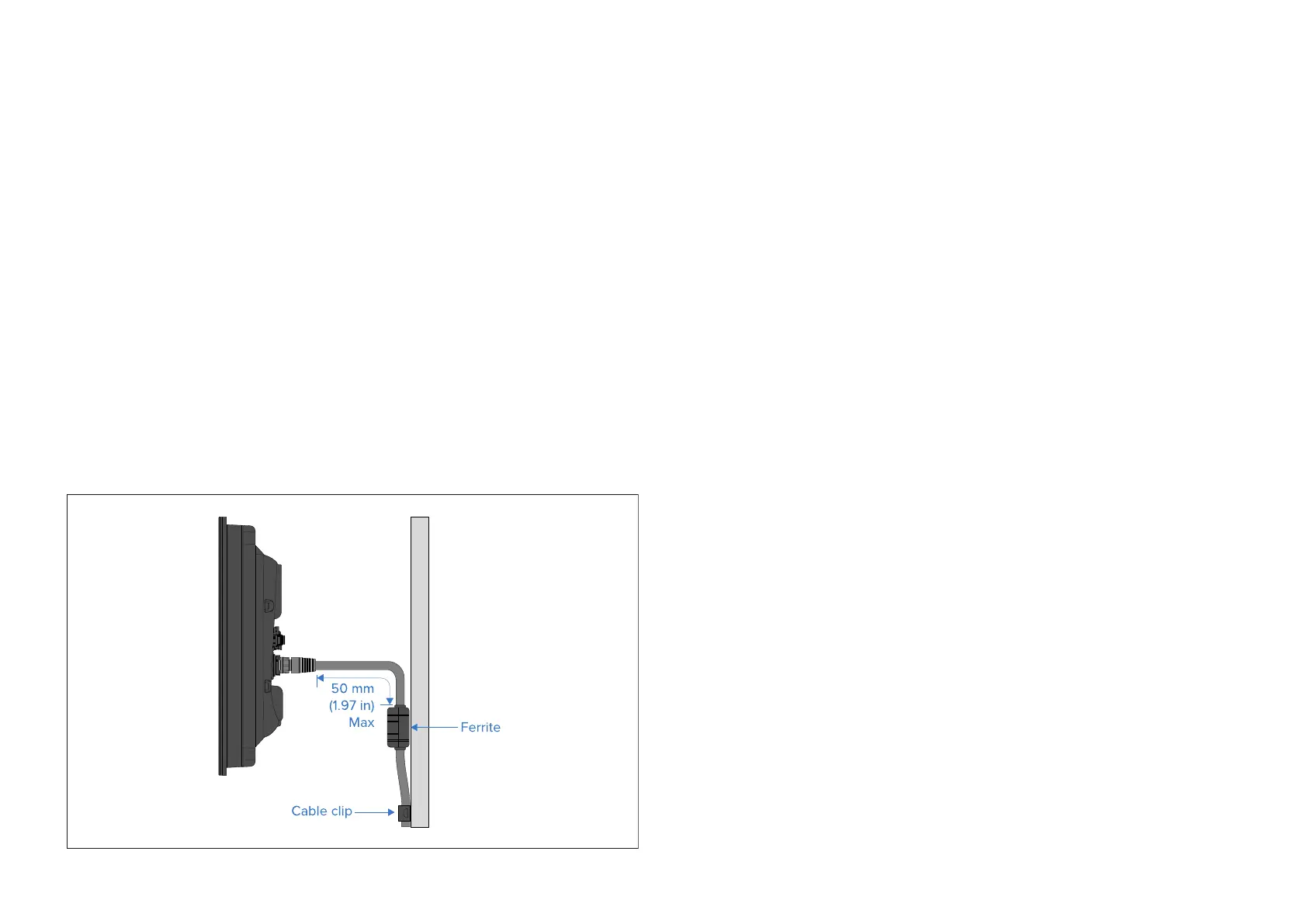

FitaferritetoeachRayNetcableasshownbelow:
•Cableclips(notsupplied)shouldbeusedtosupportthecableandferrite
.
•Ifyouneedtoremoveaferriteforanyreason,ensureitisreplacedinits
originallocationbeforeusingtheproduct.
•Iftheferritemovesfreelyoncefittedusecableties(notsupplied)above
andbelowtheferritetosecureitinplace.
Networkconnections61
