•Airtrappedunderthefrontofthevesselcantravelunderthehullandappearasaerationaft.
Note:Optimumtransducerlocationwillvarydependingonvesseltype.Optimumtransducer
heightandangleshouldbeobtainedbytestingthetransducerwiththevesselinthewater.

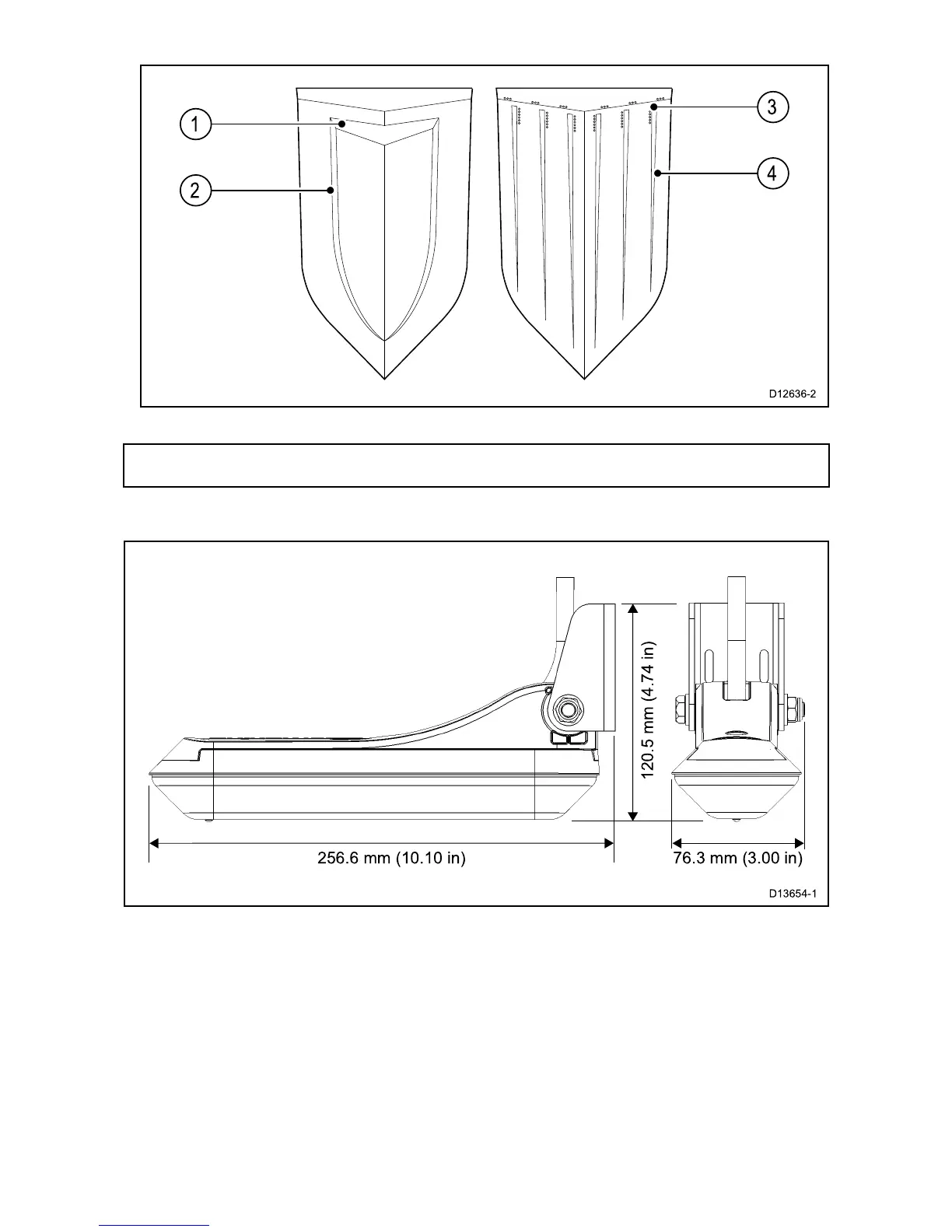

Transducerdimensions—RV-100
•RV-100cablelength:8m(26.2ft).
8
