Chapter 2: Installing the system 15

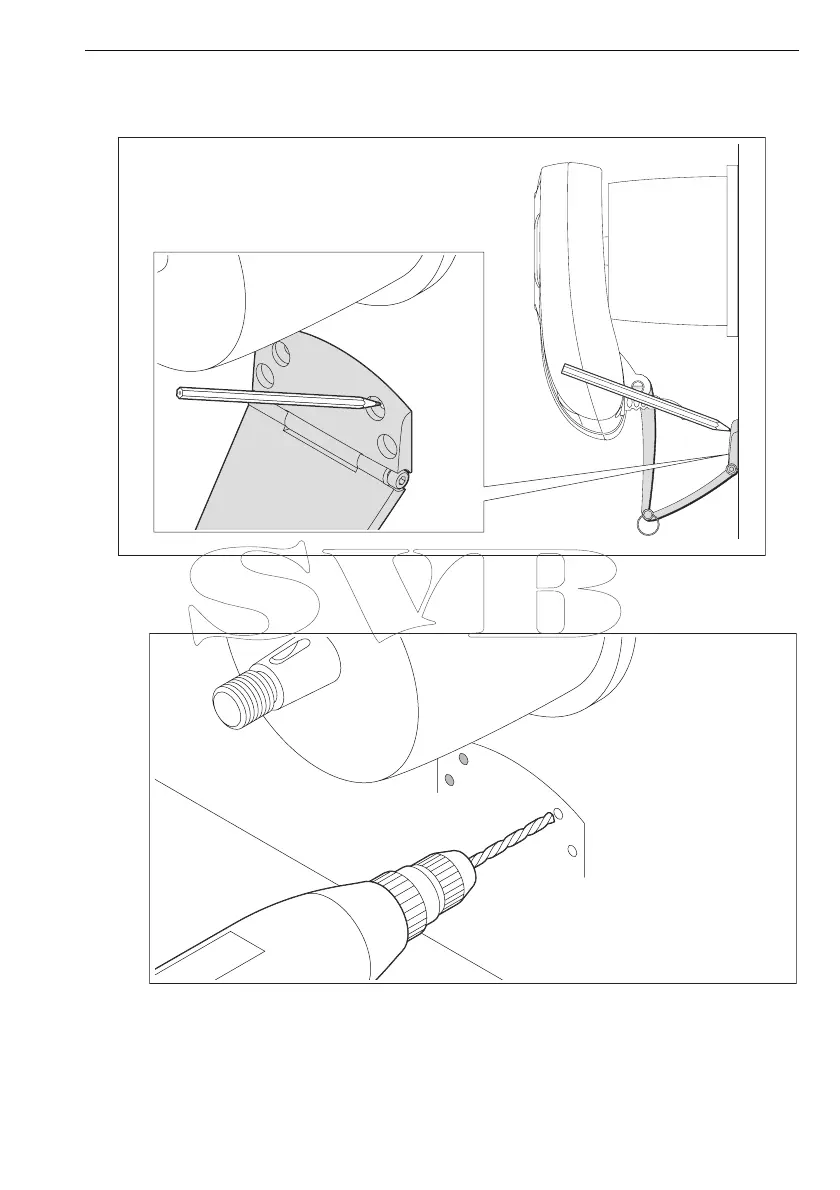

4. Offer up the torque restraint bracket to the mounting surface and mark the posi-
tions for the securing screws.
5. Remove the SPX-5R Drive from the steering shaft, then drill four
5
/
32
in (4 mm)
holes for the securing screws.
D10379-2
D10380-1
