Raymarine SmartPilot X-5R User Manual

26 SmartPilot X-5R Drive Installation and Setup Guide
2.9 Optional connections

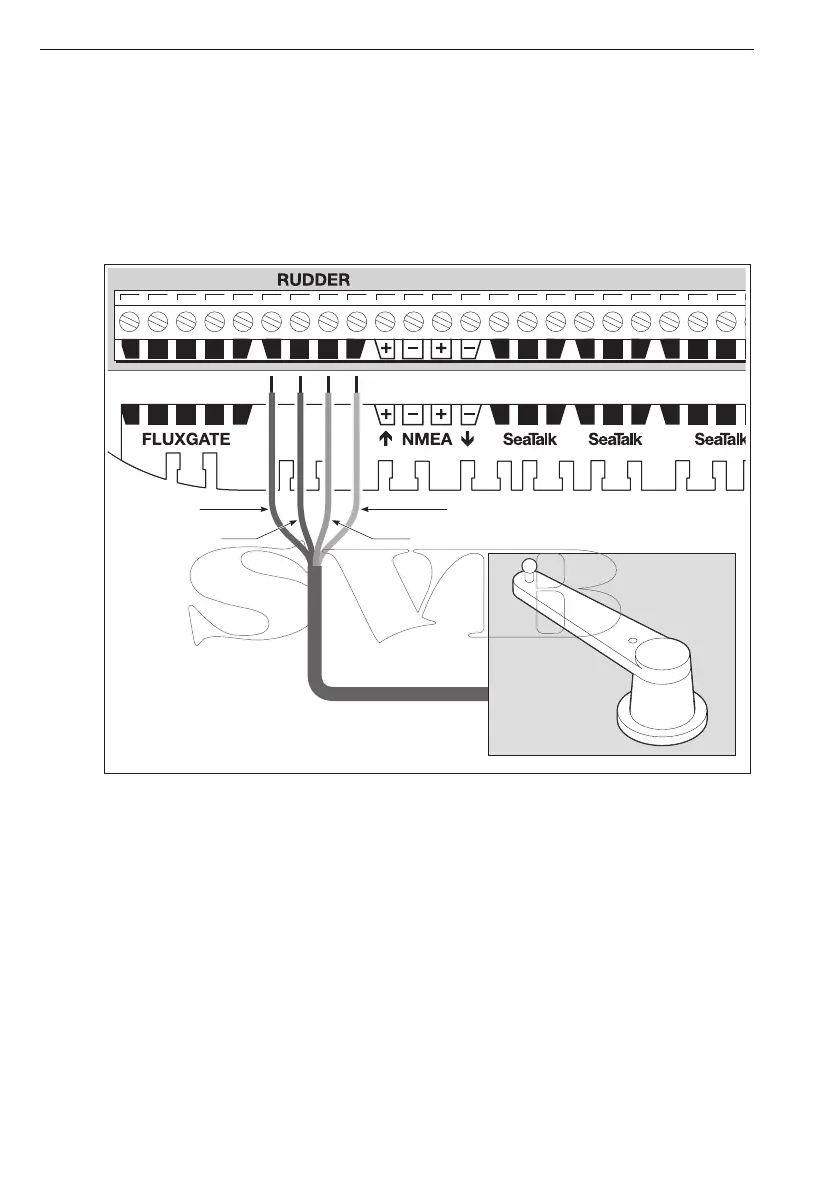

Rudder reference
For suitable vessels, an optional rudder reference transducer is available to provide
an accurate display of the rudder angle, and further improve steering accuracy and
performance of the SPX-5R Drive system. If you have the optional rudder reference
transducer, connect it to the course computer as shown.
D10393-1
Rudder transducer
Red
Blue
Screen
Green
