Raymarine SmartPilot X-5R - Seatalkng Connections; Seatalkng Power; See also

Chapter 2: Installing the system 27
SeaTalk
ng
Connections
To connect your autopilot to a SeaTalk
ng
backbone, use a dedicated spur cable. Spur
cables are available from your Raymarine dealer, as follows:
SeaTalk
ng
power
The Course Computer does NOT supply power for SeaTalk
ng
. A SeaTalk
ng
system
must be powered from its own separate power supply.
See also
For more information on SeaTalk
ng
systems refer to the separate reference guide
available from the Raymarine web site. www.raymarine.com/handbooks.
SeaTalk
ng
spur cable length
Part number
1 ft 3 in (400 mm) A06038,
3 ft 3 in (1 m) A06039
9 ft 10 in (3 m) A06040
16 ft 4 in (5 m) A06041

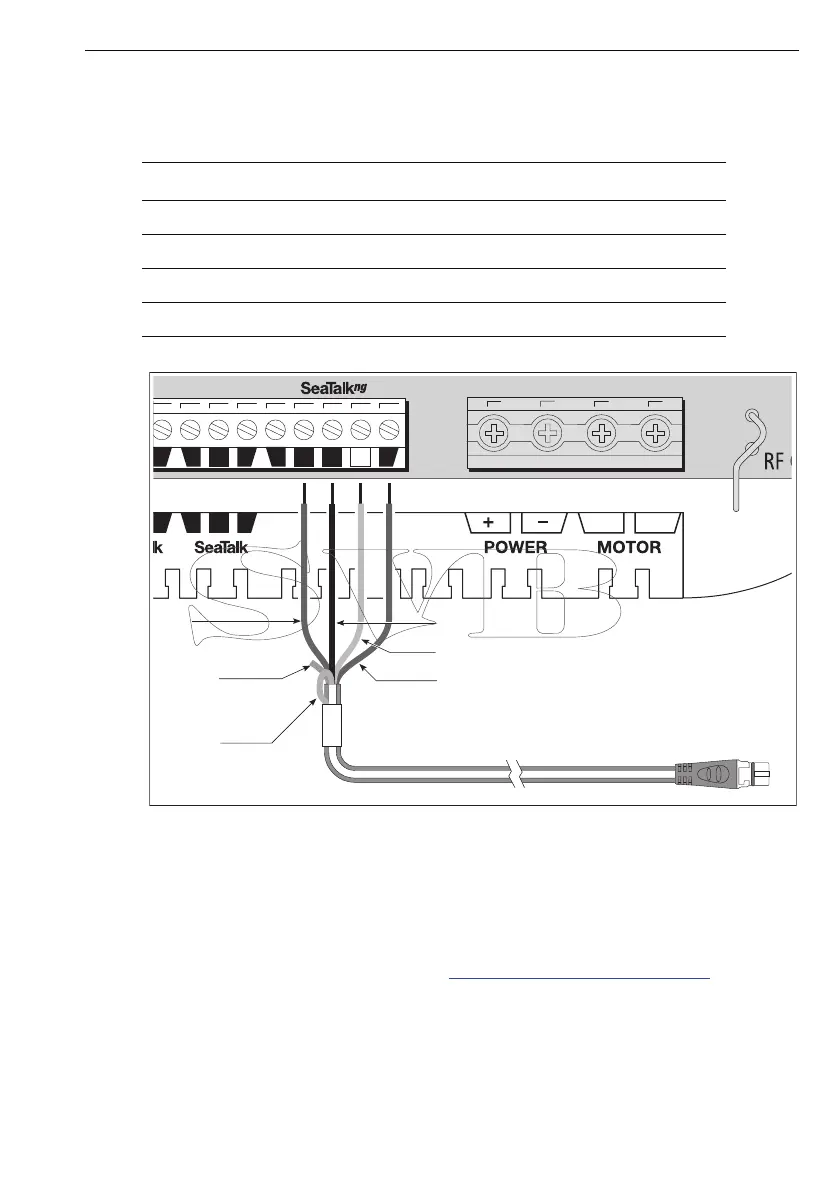

A B
D10394-1
Cut back
Screen
Red
Cut back
& insulate
Yellow
Black
White
Blue
SeaTalk
ng
spur cable
