2 SmartPilot X-5R Drive Installation and Setup Guide
Product documents

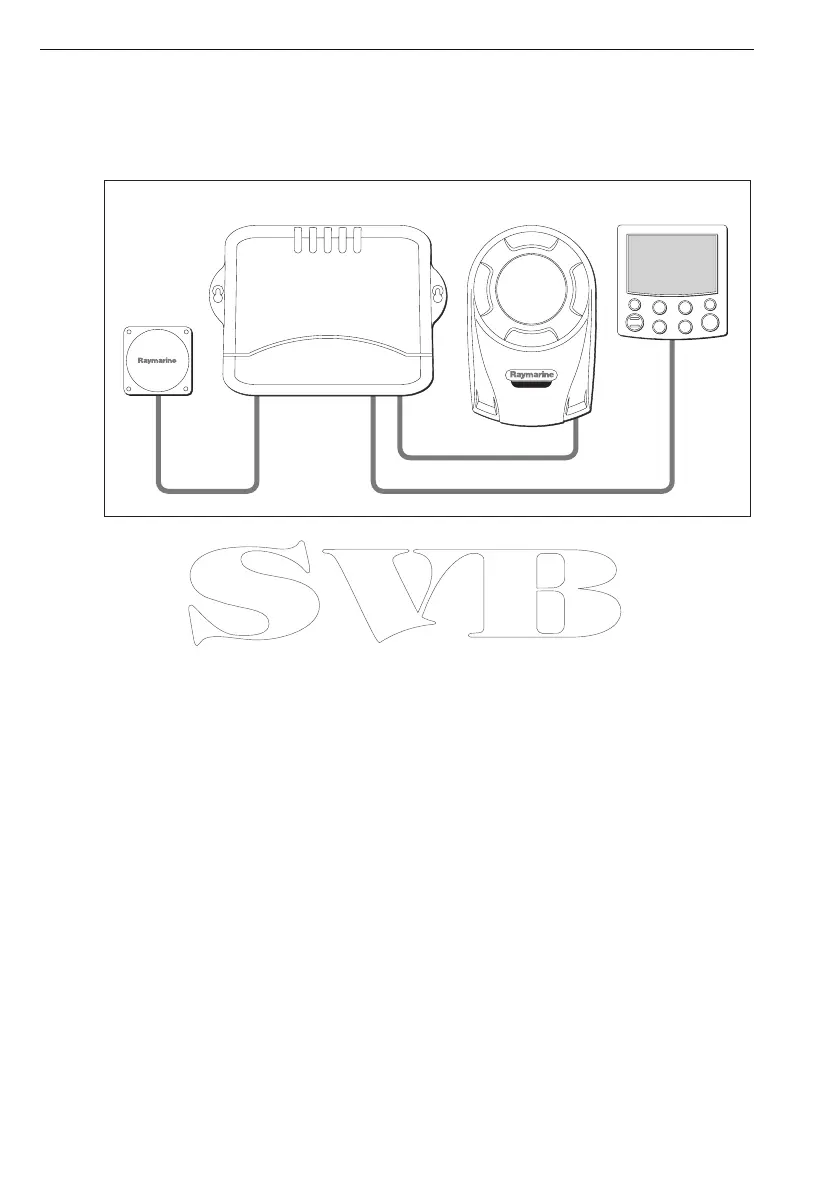

The SPX-5R Drive system consists of a number of components connected together
using a Raymarine SeaTalk bus.
Marine electronics systems
The autopilot may form part of your wider ship’s electronics system, and may be
connected to equipment using a number of marine industry standard protocols,
including:
•SeaTalk.
•SeaTalk
ng
• NMEA 0183
• NMEA2000 (via SeaTalk
ng
)
D10369-2
SmartPilot course computer
Drive unit
Fluxgate
compass
ST6002 controller
