24 SmartPilot X-5R Drive Installation and Setup Guide
D10644-1

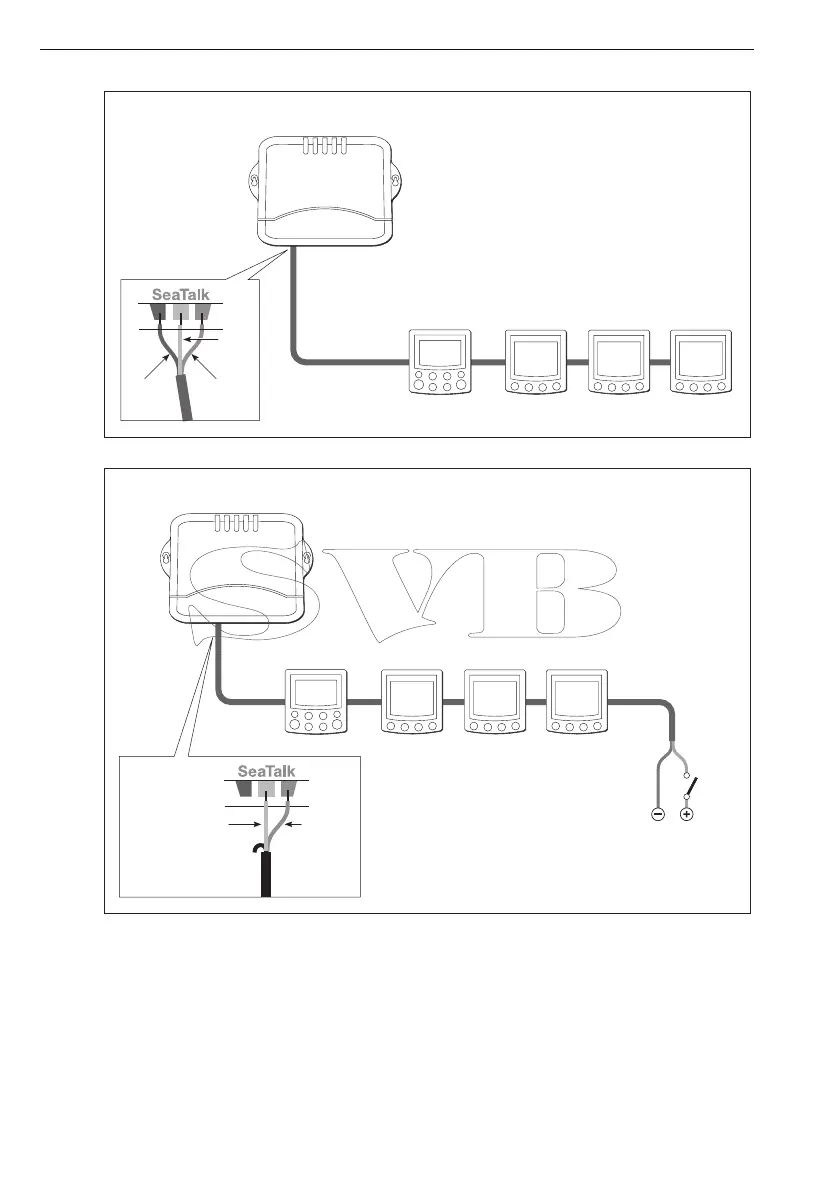

SeaTalk power supplied by Course Computer
Screen
Pilot
Controller
SeaTalk instruments
SeaTalk
Course Computer
SeaTalk
Yellow
Red
Pilot
Controller
SeaTalk instruments
SeaTalk
Course Computer
SeaTalk
SeaTalk
Screen
Do not connect red wire
(Cut back and insulate)
Yellow
SeaTalk 12 V power supply
(via breaker/fuse)
D10645-1
SeaTalk power supplied externally
