Chapter 3: Commissioning & Setup 35
Entering Dealer calibration
Enter Dealer calibration as follows:
1. Ensure the SPX-5R Drive system is in Standby mode.
2. Hold down
standby
for two seconds to enter the Calibration mode.
3. When the screen shows
DISPLAY CAL
, press
disp
until the
DEALER CAL
screen
is displayed.
4. Press
auto
. The display will change to
CAL
.
5. Press -1 and +1 together to enter Dealer calibration.
6. In Dealer calibration, access the vessel type screen, using
disp
if necessary. The
vessel type screen shows either
VESSEL
or one of the vessel types (
DISPLACE,
SEMI DISPLACE, PLANING, STERN DRV, WORK BOAT or SAIL BOAT
).
Setting the vessel type
The vessel type setting automatically determines appropriate default values for
various other calibration settings. Some of these settings are checked later in this
procedure and others should not require any adjustment. The default values for each
vessel type are listed on page 60.
Rudder ref
fitted
Enter
DEALER
CALIBRATION
Leave
CAL screen CAL screen
CAL screen CAL screen
Yes
No

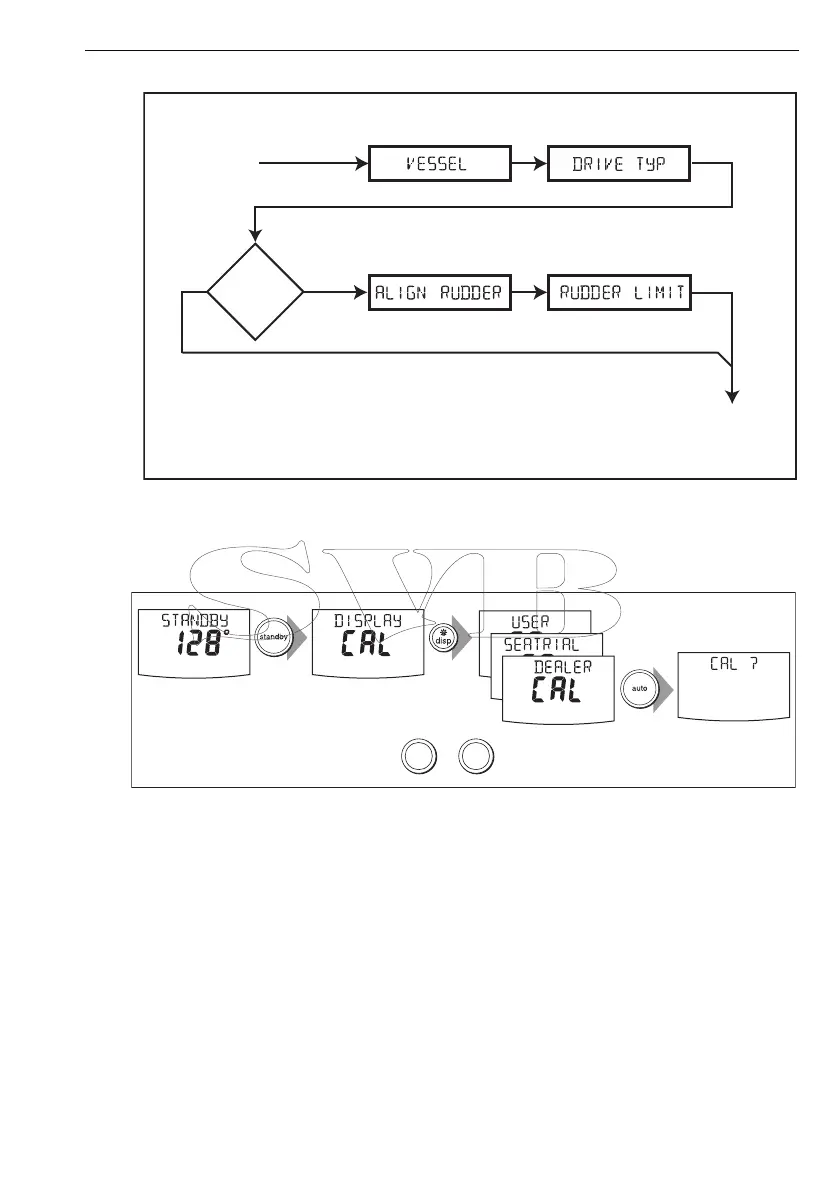

Setup map
D10807-1
DEALER
CALIBRATION
At the CAL ? screen, press + together to enter DEALER CAL
2 sec
x3
-1 +1
D10540-1
