Raypak 131 - 131 Wiring Diagram - Black Control Board (prior to 14;4;09)

TM018 Raypak 131 Type A Pool & Spa Heaters REV: A
D.O.I: 8/04/2009
This document is stored and maintained electronically by Service. All printed copies not bearing this statement in RED are deemed “uncontrolled”
10

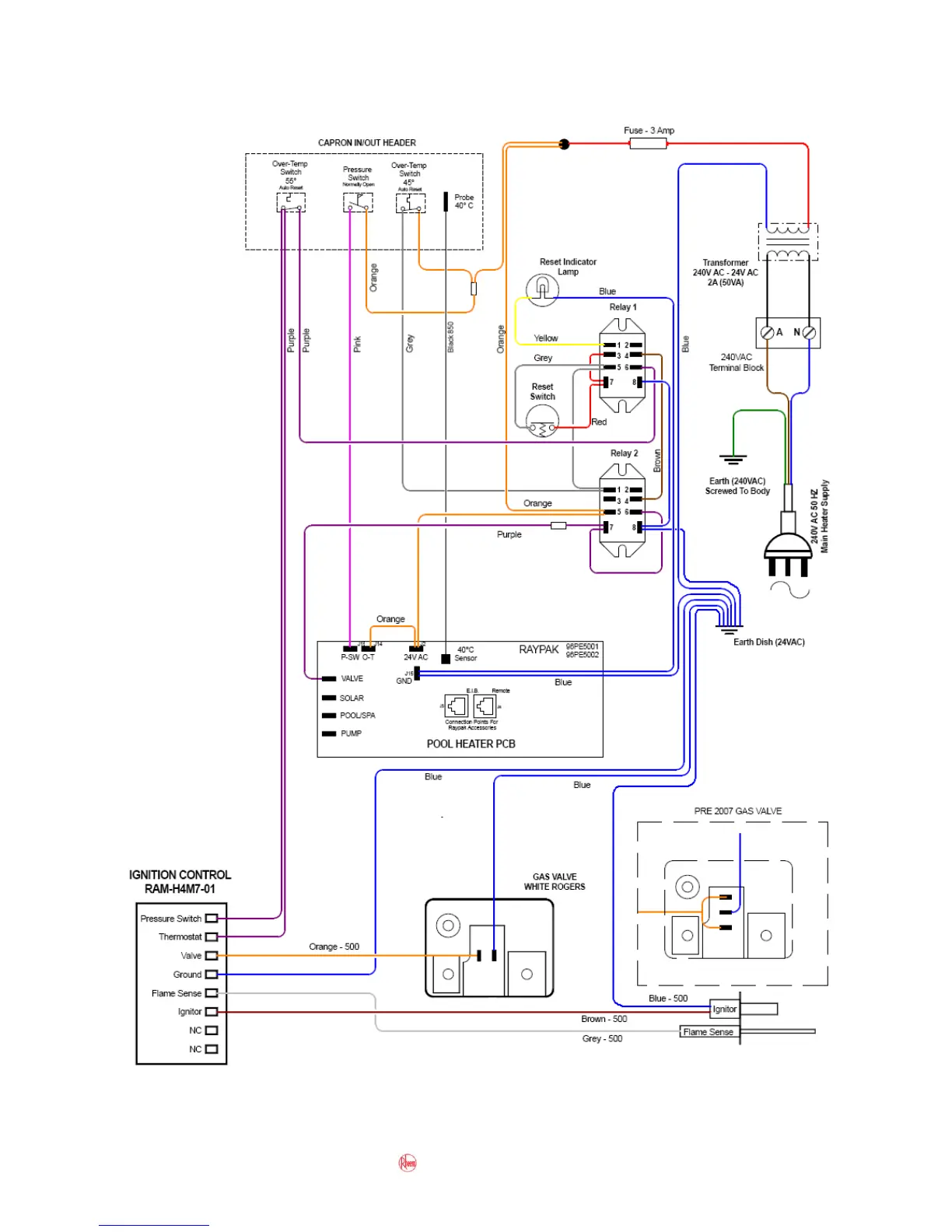

131 Wiring Diagram – Black Control Board (prior to 14/4/09)
