TM018 Raypak 131 Type A Pool & Spa Heaters REV: A
D.O.I: 8/04/2009
This document is stored and maintained electronically by Service. All printed copies not bearing this statement in RED are deemed “uncontrolled”
Addition of Auto Reset PCB (Incorporating Safety Lock out circuit)
All Raypak pool and spa heaters manufactured from the 14/4/09
have an additional auto reset PCB fitted. This control automatically
resets the safety lockout circuit when power is applied for the first
time or from a power outage overcoming nuisance lock outs.
The auto reset PCB also incorporates the safety circuit functionality
noted above including relays (relay 1 and relay 2).
A manual reset (by pressing the red reset button) is still required should the 45°C inlet over
temperature cut out open circuit.

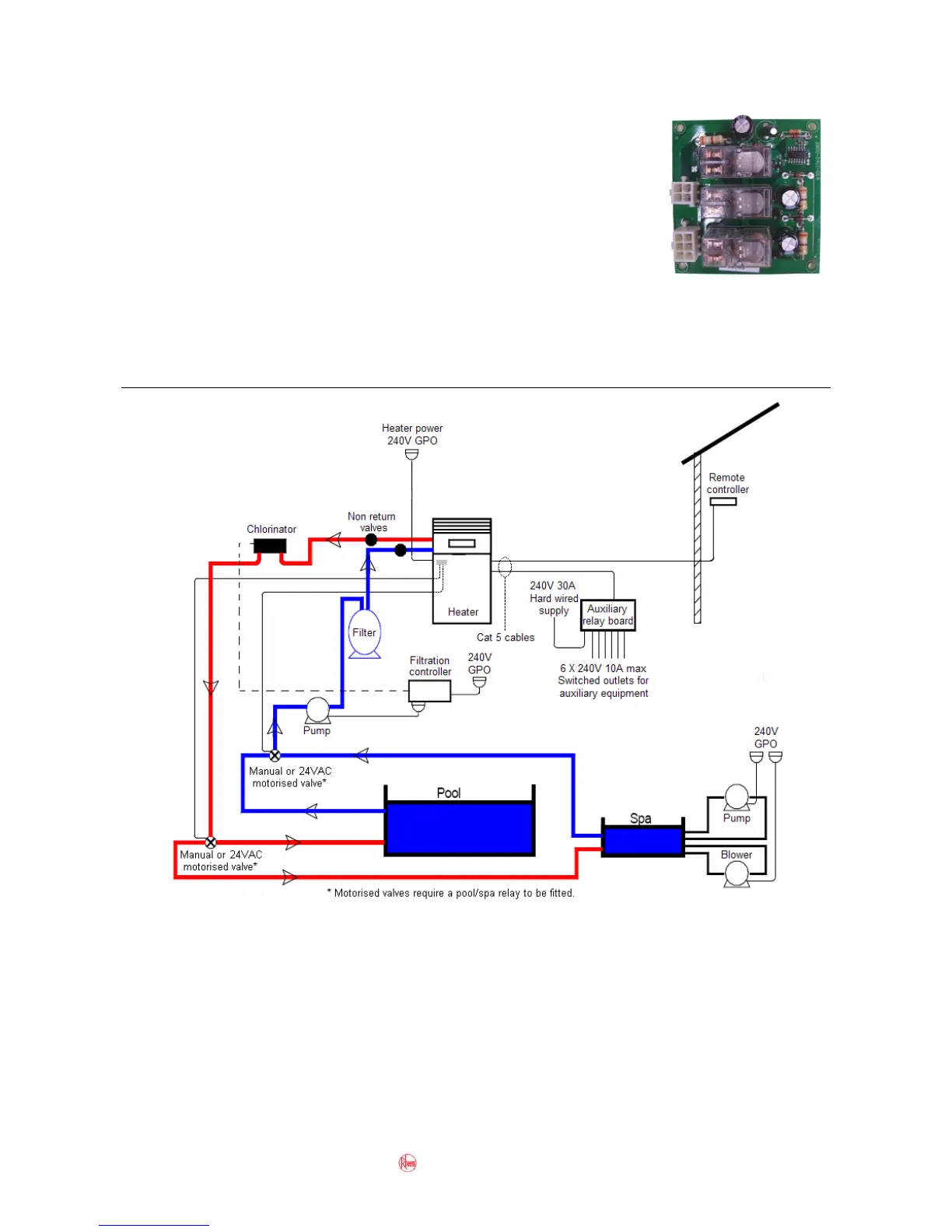

Plumbing & Installation Diagram
To Next Page
