Raypak CROSSWIND Series User Manual

10

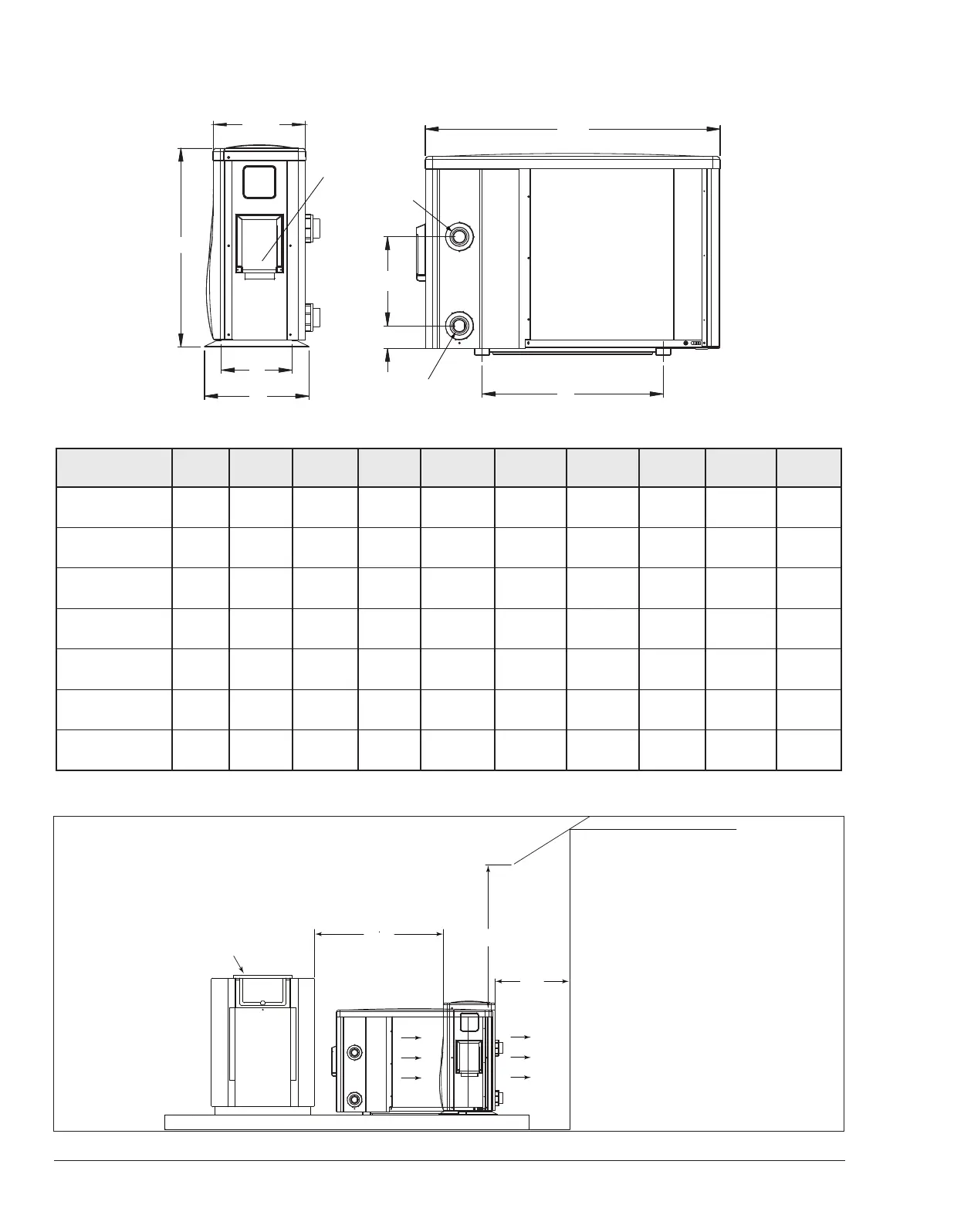

Figure 8. Dimensions
F10755
E
F
G
B
C
H
A
D
SERIAL NUMBER
LABEL LOCATED
HERE
INLET
OUTLET
GAS
HEATER
3 FT
(0.9 m)
MIN
AIR
FLOW
IN
AIR
FLOW
OUT
60" (1.52 m) MIN
12"
(0.3 m)
MIN
F10771
Specications and Dimensions
Models Part No A B C D E F G H
Weight
lb (kg)
CROSSWIND-30-I
079714
12.40
(315)
23.22
(312)
12.28
(312)
13.39
(340)
39.02
(991)
11.42
(290)
2.91
(74)
25.87
(657)
103.62
(47)
CROSSWIND-40-I
079715
12.40
(315)
23.22
(312)
12.28
(312)
13.39
(340)
39.02
(991)
11.42
(290)
2.91
(74)
25.87
(657)
105.82
(48)
CROSSWIND-50-I
079716
12.40
(315)
23.22
(312)
12.28
(312)
13.39
(340)
39.02
(991)
12.99
(330)
2.91
(74)
25.87
(657)
114.64
(52)
CROSSWIND-65-I
079717
15.55
(395)
23.22
(312)
15.35
(390)
16.54
(420)
39.02
(991)
14.17
(360)
2.91
(74)
25.87
(657)
136.69
(62)
CROSSWIND-40-O
079718
12.40
(315)
23.23
(590)
12.3
(312)
13.39
(340)
39.02
(991)
11.02
(280
3.03
(77)
25.87
(657)
125.66
(57)
CROSSWIND-50-O
079719
15.55
(395)
24.02
(610)
15.35
(390)
16.54
(420)
39.02
(991)
12.20
(310)
3.03
(77)
25.87
(657)
154.32
(70)
CROSSWIND-65-O
079720
15.55
(395)
23.23
(590)
15.24
(387)
16.54
(420)
39.02
(991)
14.96
(380)
3.03
(77)
29.80
(757)
171.96
(78)
Figure 9. Installation Clearances
Table C. Basic Product Data - in. (mm)
6100.64_Crosswind.indd 10 11/26/2019 4:16:43 PM

Raypak CROSSWIND Series Specifications

General

Category	Swimming Pool Heater
Brand	Raypak
Fuel Type	Natural Gas or Propane
Series	CROSSWIND
Water Flow Rate	20 - 120 GPM
Warranty	5 years
